Related Manuals for Holman 40943

Summary of Contents for Holman 40943

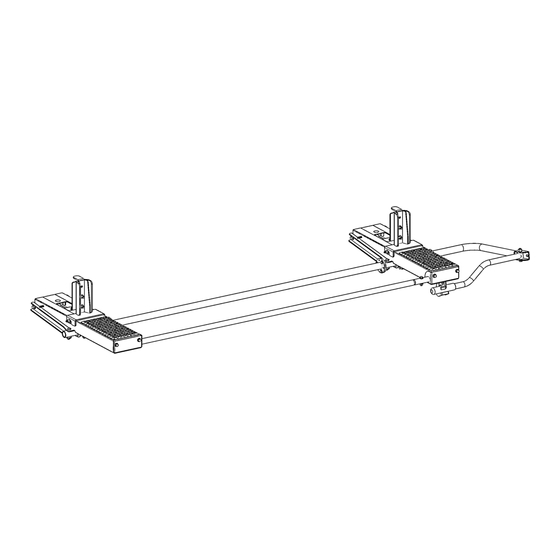

  • Page 1 Assembly Guide 40943 Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@Holman.com 20221129R1 DATE: ________________...

  • Page 2: Table Of Contents

    7/16”, 3/8”, 1/2” Socket and Wrench Tape Measure Before You Begin  Read all instructions prior to assembling or installing any Holman product.  Once rack is assembled, follow instructions included with mount kit to install the rack onto the vehicle.

  • Page 3: Parts List

    Instructions – 40943 Parts List For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 2...

  • Page 4: Hardware

    Instructions – 40943 Hardware For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 3...

  • Page 5: Step 1 - Determine Front And Rear Pan

    Instructions – 40943 Hardware Cont. Step 1 – Determine Front and Rear Pan  The rear pan will have two bolts through one arm, while the front one will only have one on each arm. Front Rear Pan For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST)

  • Page 6: Step 2 - Mount Cantilever Mechanism

    Instructions – 40943 Step 2 – Install Rear Cantilever Mechanism  Mount cantilever mechanism to the underside of the rear bow in the location shown using the pre- installed hardware on the torque tube assembly.  Be sure to have the flat-round piece towards the other bow assembly.

  • Page 7: Step 4 - Install Latch Assembly

    Instructions – 40943 Step 4 – Install Latch Assembly  Install latch assembly to the driver side end of the rear bow.  Using two 5/16” x 3/4" carriage bolts, two 5/16” flat washers, and two 5/16” lock nuts, install latch assembly to second set of holes in the exposed end of the rear bow, in the orientation shown below.

  • Page 8: Step 5 - Install Rear Pan

    Instructions – 40943 Step 6 – Install Rear Pan  Remove the pre-installed two 5/16” x 2” hex head bolts, four 3/8” washers, and two 5/16” lock nuts from cantilever assembly.  With the pan at an angle place the pan over the wheels and slide into place.

  • Page 9: Step 7 - Install Front Mechanism

    Instructions – 40943 Step 8 – Install Front Cantilever Mechanism  Mount cantilever mechanism to the underside of the front bow in the location shown using the pre-installed hardware on the torque tube assembly.  Be sure to have the round part of the mechanism towards the rear bow.

  • Page 10: Step 9 - Install Torque Tube

    Instructions – 40943 Step 10 – Install Torque Tube  Using three 1/4” x 7/8” hex head bolts, three 1/4" flat washers and three 1/4" lock nuts, bolt the torque tube to front pan assembly. Front bow shown for clarity.

  • Page 11: Step 12 - Install Ladder Hooks

    Instructions – 40943 Step 13 – Install Ladder Hooks  Using the pre-installed hardware and installed studs on the bows, loosen nuts and slide ladder hook into place.  There are two sets of studs attached to the pans, use appropriate set depending on what ladder you are using.
