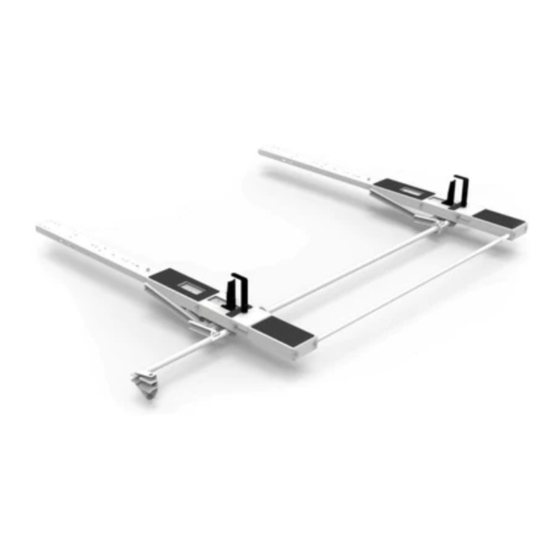

Instruction Guide
40983
Holman
Rancho Cordova, CA 95742
800-343-7486
InstallationSupport@Holman.com
20190705R1
DATE: ______________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40983 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Holman 40983

Summary of Contents for Holman 40983

  • Page 1 Instruction Guide 40983 Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@Holman.com 20190705R1 DATE: ______________...

  • Page 2: Table Of Contents

    Instructions – 40983 *PLEASE READ ALL INSTRUCTIONS AND WARNINGS PRIOR TO ASSEMBLING, INSTALLING, AND USING THIS PRODUCT.* Warning Always check for wires, fuel tanks and lines, brake lines and other important vehicle functionality items prior to drilling and installing all products.

  • Page 3: Parts List

    Instructions – 40983 Parts For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 3...

  • Page 4: Hardware List

    Instructions – 40983 Hardware For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 4...

  • Page 5: Step 1 - Remove Bow Stops

    Instructions – 40983 Step 1 – Remove Bow Stops  If installed, remove the bow stops from the end of each bow on the drivers’ side of the ladder rack. Step 2 – Install Rubber Bumper  Install the rubber bumper in the large round hole on each bow in the location shown below.

  • Page 6: Step 3 - Install Rear Damper Mechanism

    Instructions – 40983 Step 3 – Install Rear Damper Mechanism  Mount the rear bow damping mechanism to the underside of the rear bow in the locations shown. Use the hardware pre assembled in the damping mechanism to attach to the bow.

  • Page 7: Step 4 - Install Rear Wheels

    Instructions – 40983 Step 4 – Install Rear Wheels  Slide the wheel axle through the holes at the end of the bow. Place a nylon washer on the axle against the outside of the bow. Place a wheel at each end of the axle, one on each side of the bow.

  • Page 8: Step 5 - Install Rear Pan

    Instructions – 40983 Step 5 – Install Rear Pan  Identify the rear pan assembly, it will have two mounting locations on one of the arms as shown.  Remove the pre-installed hardware from the damper mechanism.  Place the rear pan on top of the wheels and bow.

  • Page 9: Step 6 - Install Front Mechanism

    Instructions – 40983 Step 6 – Install Front Mechanism  Mount the front mechanism to the underside of the front bow in the location shown.  Use the hardware pre-installed on the mechanism to attach to the front bow.  TIGHTEN.

  • Page 10: Step 7 - Install Front Wheels

    Instructions – 40983 Step 7 – Install Front Wheels  Slide wheel axle in the holes at the end of the front bow. Place a nylon washer on the axle up against the outside of the bow. Place a wheel at each end of the axle, one on each side of the bow.

  • Page 11: Step 8 - Install Front Pan

    Instructions – 40983 Step 8 – Install Front Pan  Remove the hardware shown below from the damper mechanism.  Place the front pan on top of the wheels and bow. BE SURE THE WHEEL CAPS DID NOT COME OFF.

  • Page 12: Step 9 - Install Torque Tube

    Instructions – 40983 Step 9 – Install Torque Tube  Place the torque tube in between the front and rear bow in the location shown.  Attach the torque tube to the front and rear bow using one 1/4" x 7/8” hex head, two 1/4"...

  • Page 13: Step 10 - Install End Tube

    Instructions – 40983 Step 10 – Install End Tube  Place the end tube assembly at the end of the front and rear bow.  Attach the end tube assembly to both bows using 5/16" x 5/8” hex heads, 5/16” lock washers and 5/16"...

  • Page 14: Step 11 - Install Ladder Hooks

    Instructions – 40983 Step 11 – Install Ladder Hooks  Determine best location for the ladder hooks. There are two options on each bow. These options can be identified by locating the threaded studs sticking outwards from the bow.  Typically, the ladder hook on the front bow is installed on the threaded stud closest to the end of the bow.
  • Page 15 Instructions – 40983  Typically, the ladder hook on the rear bow changes with the type of ladder being used on the rack.  When using an extension ladder, place the ladder hook at the threaded location closest to the end of the pan.
  • Page 16 Instructions – 40983  When using a step ladder, place the ladder hook at the threaded location closest to the center of the bow.  Using the hardware and the threaded studs on the bows, loosen the nuts and slide ladder hook into place.

  • Page 17: Step 12 - Install Ladder Stops

    Instructions – 40983 Step 12 – Install Ladder Stops  Identify the potential ladder stop location near the previously installed ladder hooks.  Remove the installed hardware on the bows next to the rectangular cut outs near the installed ladder hooks.

  • Page 18: Step 13 - Install Handle Mechanism

    Instructions – 40983 Step 13 – Install Handle Mechanism  Place sealant along the swage joint to ensure no water can enter the tube.  Insert the handle mechanism into the swage on the rear bow. Use the hardware removed in Step 5 to attach the mechanism.

  • Page 19: Step 14 - Use Handle

    Instructions – 40983 Step 14 – Use Handle  Go back and tighten all hardware on rack. Start at the rear and in the middle of the rack and work your way forward.  Use the handle that is included with the main rack assembly to operate the rack. Be sure there are no issues with operation.
  • Page 20 Instructions – 40983 ENSURE ALL HARDWARE IS TIGHT. DO NOT EXCEED MANUFACTURERS WEIGHT CAPACITY. YOUR INSTALLATION IS NOW COMPLETE. For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 20...
