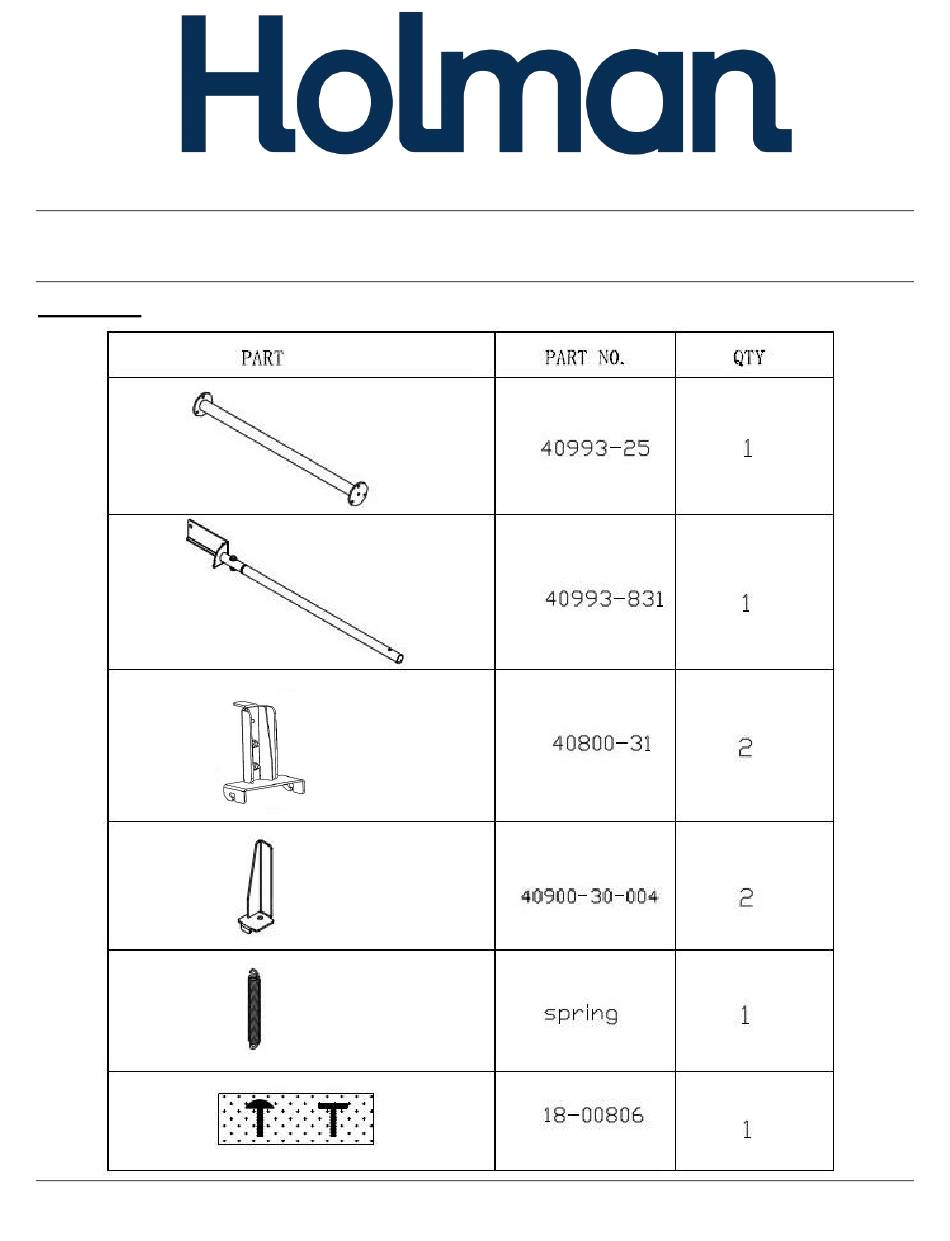

- Page 1 Instructions 40913 Parts List 20220328R1 Date: __________...
- Page 2 Instructions – 40913 Parts List (Continued) For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 2...
- Page 3 Instructions – 40913 Tools Needed 8' Tape Measure 1/4" End Wrench 1/4" Socket 5/16" End Wrench 5/16" Socket Hammer Hardware List (a) Qty 2 - Rubber Bumper (b) Qty 6 - 5/16" Flat Washer (c) Qty 4 - 5/16" Lock Washer (d) Qty 1 - 5/16"-18 Nyloc Nut...
- Page 4 Instructions – 40913 Step 1 Bolt “Dampener mounting bracket (40993-12)” underneath the crossbow (only the front side of the vehicle) as shown below using 3/8” x 3/4” bolts with flat and lock washers. Step 2 Bolt “Torque tube pivot Assy. (40993-09)” underneath the front crossbow (Front side of vehicle) as shown below using 4 of 3/8”...
- Page 5 Instructions – 40913 Step 3 Bolt “Torque tube pivot Assy. 2 (40993-8)” underneath the rear crossbow (rear side of the vehicle) as shown below using 3/8” x 3/4” Bolts with flat and lock washers. You may need to un-bolt the mounting front from the crossbow to do this.
- Page 6 Instructions – 40913 Step 5 Attach torque tube (40993-25 and 40993-24) using ¼” bolts (J) with flat washers (k) and nyloc nuts (l). Check distance between feet on both driver and passenger side, they must be EXACTLY the same to insure the bow assemblies are parallel.
- Page 7 Instructions – 40913 Step 7 Next install the “Ladder Pan Assy.” Align cutouts in “Ladder Pan Assy.(40993-10)” with the “Rollers” and guide the arms onto the “Torque Tube Pivot Assy.” As you lower the Pan assembly onto the rollers, remove the bolt assembly pre-installed on Ladder Pan, and use the same bolt assembly to secure the Arm with Ladder Pan.
- Page 8 Instructions – 40913 Step 9 Next attach the “Ladder Hooks (40800-31)” and “Ladder Stops (40900-30-004)”. Attach "Ladder Hooks" to ladder pans on 5/16” studs in desired location. Attach "Ladder Stops" to coincide with "Ladder Hooks" by removing 3/8” x 3/4” bolt and placing stop so the tab on the stop goes into the corresponding slot.
- Page 9 Instructions – 40913 Step 10 First using 5/16” x 1-1/2” Hex bolt (q) with two flat washers (b) and nyloc nut (d) to connect the ladder pan stiffener (40993-31 and 40993-832) and USE sealant (m) AROUND HOLES. Attach ladder pan stiffener, in the closed position, using 5/16”...
-
Page 10: Installation Is Now Complete
Instructions – 40913 Step 11 Place the rubber bumper (a) to both front and rear crossbow as shown below. Installation is now complete. Front Rear For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 9...
