- Page 1 Installation Guide 408SC Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@Holman.com 20231024R2 DATE: ________________...
-
Page 2: Table Of Contents
Step 6 – Mount Rack ........................7 Before You Begin • Read all instructions prior to assembling or installing any Holman product. • Have desired ladder rack ready to be installed. For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) -
Page 3: Parts List

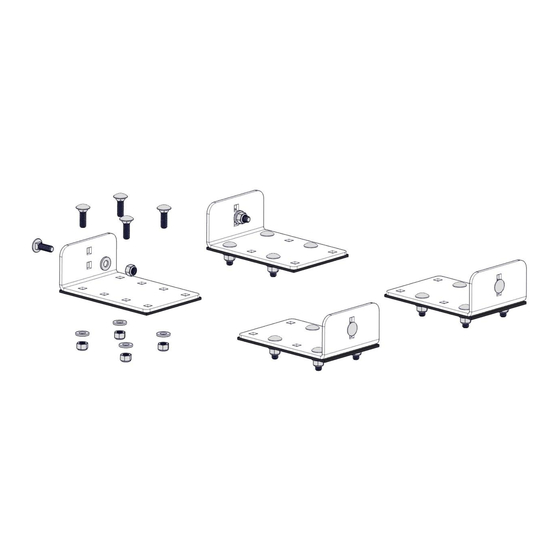

Instructions – 408SC Parts List For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 2... -
Page 4: Step 1 - Foot Placement
Instructions – 408SC DO NOT EXCEED MANUFACTURERS WEIGHT CAPACITY FOR ROOF! Step 1 – Foot Placement • Measure the approximate width of the flat section of the roof on the top of the shell. • Determine best mount locations on top of the shell and measure distance between the desired mounting locations. -
Page 5: Step 2 - Attach Mounts To Feet
Instructions – 408SC Step 2 – Attach Mounts to Feet • Attach feet on ladder rack to the mounting brackets from the 408SC kit using 5/16” x 1” carriage bolts, 5/16” flat washers and 5/16” lock nuts. • Repeat at all four mount feet. -
Page 6: Step 3 - Place Rack On Shell
Instructions – 408SC Step 3 – Place Rack on Shell • Place rack on top of shell and positon to your liking. Be sure the rack is off-set far enough to the rear that one will not hit the shell when loading and unloading a ladder. -
Page 7: Step 4 - Remove Rack And Drill
Instructions – 408SC Step 4 – Remove Rack and Drill • Remove rack with feet and mounts from the top of the shell. • Drill in previously marked holes using a 11/34” bit. • Ensure safety when drilling. • Remove rack and feet from the feet mounts. -
Page 8: Step 6 - Mount Rack
Step 6 – Mount Rack • Place rack on top of previously installed feet mounts. • Attach feet on ladder rack to the mounting brackets from the 408SC kit using 5/16” x 1” carriage bolts, 5/16” flat washers and 5/16” lock nuts.
