Summary of Contents for Holman 4081M

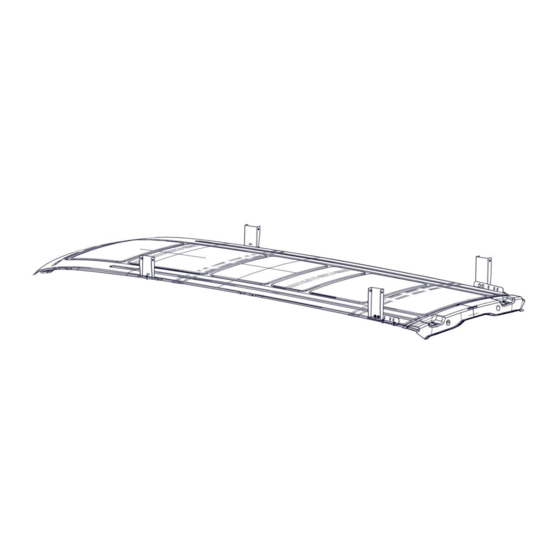

- Page 1 Installation Guide 4081M Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@Holman.com 20240224R2 DATE: ________________...
-
Page 2: Table Of Contents
1/2” Socket and Wrench 10mm Socket and Wrench Before You Begin • Read all instructions prior to assembling or installing any Holman product. • Follow ladder rack instructions after installing mount feet. • Always locate your installation locations prior to performing any work. -
Page 3: Parts List
Instructions – 4081M Parts List For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 2... -
Page 4: Hardware
Instructions – 4081M Hardware For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 3... -
Page 5: Step 1 - Mount Front Foot
Instructions – 4081M Step 1 – Mount Front Foot • Locate front mount locations as shown above. • Remove front most plastic cap in these locations to expose threads in the roof. • Place front rail pad over the front most hole. -
Page 6: Step 2 - Mount Rear Foot Bracket
Instructions – 4081M Step 2 – Mount Rear Foot Bracket • In the rear of the van, locate the two rear most mounting locations from picture on page 4. • Remove plastic to expose both threads in the roof. • Place small angle bracket with flange to the center of van and offset to the front. -
Page 7: Step 3 - Rear Foot To Mount
Instructions – 4081M Step 3 – Rear Foot to Mount • The distance between the front and rear foot should be approximately 71.5”. • Be sure to identify the correct foot for each side of the van. The slope on the large foot will make the top of the foot flat. -
Page 8: Step 4 - Installing Ladder Bows
Instructions – 4081M Step 4 – Installing Ladder Bows • Place correct ladder bow on the previously mounted front and rear feet. Be sure to have equal distance along the bow as shown below. • Bolt in place using 3/8” x 3/4” hex head, a 3/8” lock washer and a 3/8” flat washer.
