Summary of Contents for Holman 40391

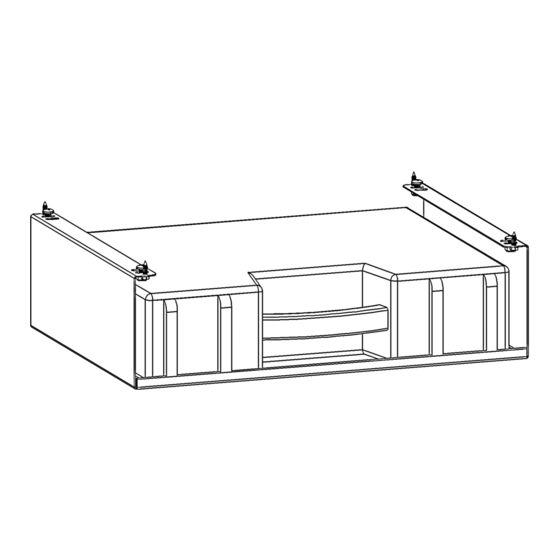

- Page 1 Installation Guide 40391 Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@holman.com 20221018R2 DATE: ________________...
-
Page 2: Table Of Contents
Step 1B – Install to Aluminum DCU Shelf ................... 4 Step 2 – Optional - Install Second Kargo Case .................. 5 Before You Begin Read all instructions prior to assembling or installing any Holman product. Always locate your installation locations prior to performing any work. ... -
Page 3: Parts
Instructions – 40391 Parts Hardware For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 2... -
Page 4: Step 1A - Install To Steel Shelf
Instructions – 40391 Step 1A – Install to Steel Shelf When installing to a Holman steel shelf, the shelf flanges must be facing upwards, as shown. The small flange on the Kargo Case holder goes towards the front, where the case will be accessed. -
Page 5: Step 1B - Install To Aluminum Dcu Shelf
Instructions – 40391 Step 1B – Install to Aluminum DCU Shelf Be sure to install the Kargo Case holder to the aluminum shelf extrusions and NOT the shelf fiberboard panels. Place Kargo Case holder in desired position on bottom of DCU shelf. -
Page 6: Step 2 - Optional - Install Second Kargo Case
Instructions – 40391 Step 2 – Optional - Install Second Kargo Case Kargo Case brackets can be stacked using the center four holes circled. Using four 1/4 x 1/2” pan head screws, and four 1/4” flanged lock nuts, attach Kargo Case holder to shelf.
