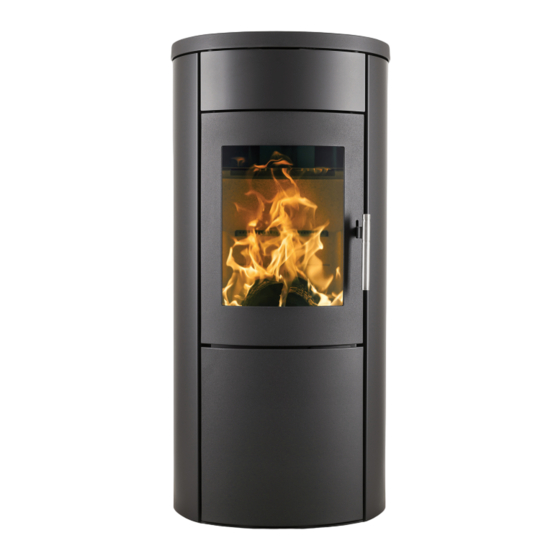

- Page 1 OPERATING AND INSTALLATION INSTRUCTIONS SCAN-LINE 805 AQUA Approved for use in smoke control areas when burning dry wood logs or authorised fuels www.heta.dk DANISH DESIGN . DANISH QUALITY . DANISH PRODUCTION...
-
Page 2: Table Of Contents
Heta stove. Especially if you follow the following advice and instructions. Scan-Line 805 Aqua is approved according to EN 13240, 15 a B-VG, NS 3058/3059 og AEA (Defra). These approvals, means that the wood stove insert meets a variety of specifications and requirements, ensuring it is made of quality materials, minimum... -
Page 3: Before Installation
It is important that upon receipt check your Heta product completely and report any damage or defects to your dealer. The packaging must be disposed of as follows: Wood is untreated and able to burn in the stove. - Page 4 With your new wood stove you should find the following: Q.C. check Operating / Instruction manual Data plate Heta glove 8057 0000-DK Nr. 0023-9002 Heta A/S Jupitervej 22 . DK-7620 Lemvig . Denmark EN 13240:2001/A2:2004 - AEA - NS 3058/3059, Aus §15A Testrapport: 300-ELAB-2276-EN SN No.
-
Page 5: Operating Instructions
1. OPERATING INSTRUCTIONS 1.1 Before using amounts of smoke and unburnt hydrocarbons. The appliances will only be considered as an Before the wood stove is used make sure required exempt appliances if this stop is in place. installation conditions, are met. See page Lower door 1.4 Lighting the stove Place two pieces of wood on the bottom. -
Page 6: Emptying The Ash
bers in one layer, perpendicular to the chamber opening. See fig. 5. Now open the combustion air completely. If the stove and/or chimney cools down too much, it may be necessary to have the door ajar. The wood will then ignite within a very short time 1.6 Emptying the ash (Typically 1 to 3 minutes). -
Page 7: Risk Of Explosion
Good draft will allow the stove to achieve op- timal combustion and the highest possible ef- ficiency. Heta wood stoves are constructed so Reduced draft can occur when: that it itself provides an optimal blend of com- • The temperature difference is too small bustion air. -
Page 8: Fuel
Good draft occurs when: It is advised not to use oil-containing woods like teak tree and mahogany, as this can cau- • The difference in temperature in the chimney se damage to the glass. (warmer) and outside temperature (colder) • It is clear weather Heating value in wood •... -
Page 9: Maintenance
Lubricate Ash pan supply completely, to help slow/smother the fire. Call the fire department. The stove and chimi- Grease not ney must be inspected before use again. included. 1.13 Maintenance The surface of the stove is treated with a heat- resistant paint. -
Page 10: Troubleshooting
1.16 Troubleshooting table - applies to all stove types Fault Cause Troubleshooting Solution Inadequate chimney draft. Lighting problems. When the You can test using a lighter whether Improve the chimney. The chimney only has stove is cold, smoke seeps flame is drawn into the combustion sufficient draft when it is hot. -
Page 11: Stove Data Table En 13240
Therefore, the duration of the warranty is 5 years on this product, covering manufactu- rer’s defects, 1 year on paint adhesion defects from purchase date from Heta and a 3 months total warranty for seals, vermiculite and glass from the date of sale from the dealer. -
Page 12: Cleaning/Replacing Bicks After Chimney Sweeping
1.19 Cleaning after sweeping the chimney and replacing the stones Note: it may be necessary to clean/vaccum the holes and air ducts behind the rear stone. Order of removing Fire bricks. Replace in reverse order. Starting with Fig. 6. -
Page 13: Removal Of Plates Between The Cooling Pipes And Cleaning Of Cooling Pipes
(as when you receive it from Heta), otherwise it place, as it otherwise will result in great loss will result in great loss of efficiency and raise the of efficiency and raise the temperature of the... -
Page 14: Parts
1.21 Scan-Line 805 Aqua Parts - Inside fire chamber Pos. Name Qty. 0023-0117 Baffle 0023-0118 Side stone right 0023-0119 Side stone left 0023-0236 Rear stone (two-part) 0030-0018 Casted bottom 0030-0201 Grate ø195 mm 0023-3017 Gasket L= 910 mm 4018-0030 Ash container... - Page 15 Parts - Inside fire chamber Pos. Name Qty. 1 0008-1002 M6x6 Pinole screw 2 0008-2005 M5x10 screw 3 0008-2304 M4x6 screw 4 0008-9082 6x35 Round head rivet 5 0016-0084 Handle 6 0021-0055 Glass 7 0023-3008 Glass gasket ø12 L=1,8 m 8 0023-3013 Glass band 3x8 L=1,8 m 9 1013-0432...
- Page 16 Combustion air and ventilation ............18 Mounting of still feet ................18 Automatic ventilator ................18 Connection water to Scan-Line 805 Aqua ........19 Stovedrawings/measurments ............20 Clearances for installation EN 13 240 ..........21 2.10 Mounting of purchased Aqua performance kit ......... 21 2.11 Changing to a back flue outlet ............
-
Page 17: Installation Instructions
fireproof material and / or flammable wall or non-flammable wall. If the wall beading. Heta A/S stresses that it is of utmost is made of non-flammable material, the stove in importance that this is done correctly with very principle may be placed flush against it. -
Page 18: Combustion Air And Ventilation
quired to bear the entire weight of the chimney 2,6 Automatic vent (excessive weight may damage the stove). Carry out a thorough flushing of the system by separating the automatic air vent to remove impurities in the system. Combustion air and Ventilation Venting the automatic vent (Only the first time and after the system has The stove is approved as a room air dependent... -
Page 19: Automatic Ventilator
(point 1) - boiling safety fuse (point 2) Scan-Line 805 Aqua is delivered from Heta so sure that your water company supplies approx. that it can be fitted on an existing system with 600 litres per hour. This could be checked by matching circulating pump and safety valve. -
Page 20: Stovedrawings/Measurments
2.8 Stovedrawings/measurments Scan-Line 805 Aqua Standard ø100 Scan-Line 805 Aqua Stone ø100... -
Page 21: Clearances For Installation En 13 240
2.9 Clearances for installation EN 13 240 Combustible material The dimensions are the minimum dimensions, unless otherwise stated. 2.10 Mounting of purchased Aqua performance kit Nr. 5032-0024 3/4” Pressure Temperature thermometer thermometer... -
Page 22: Changing To A Back Flue Outlet
ø100 mm, the draught in the flue depends on this air for optimal combustion. Heta recommends max. 4 meters of di- rect air pipe, with max. 3, 90° bends and a min. of ø100 mm. -
Page 23: Eu Declaration Of Conformity
Certifikat no. 1757 Manufacturer Heta A/S Ecodesign Adress Jupitervej 22, DK 7620 Lemvig EU Declaration of Conformity E-mail heta@heta.dk Website www.heta.dk DoC Scan-Line 800 Aqua 1757-2013 Telephone +45 9663 0600 Product fiche Model identifier Scan-Line 800, 805 Aqua serie The identified product described above is in Notified body relevant to the assessment and verification of...
