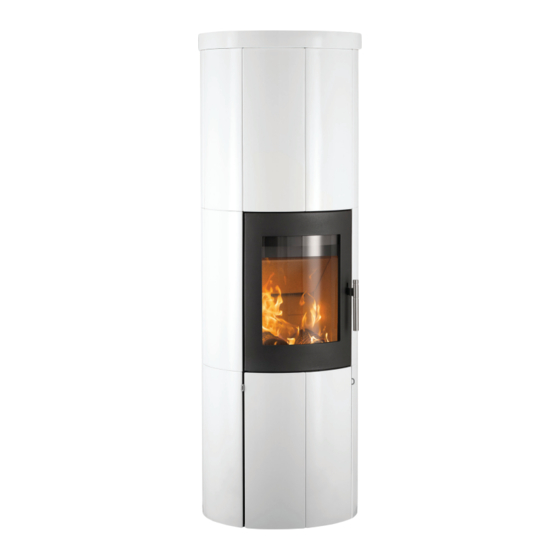

- Page 1 80 anD 80 Xl aPProVeD For Use in sMoKe Control areas When BUrninG Dry WooD loGs or aUthoriseD FUels www.heta.dk Danish DesiGn . Danish QUality . Danish ProDUCtion...
- Page 2 DOP-Scan-Line 1000 2017 required tools are not supplied. Heta A/S Jupitervej 22, DK-7620 Lemvig Copyright © 2014 Printed in Denmark Heta is a registered Phone: +45 9663 0600 Subject to printing errors 05.02.2021 trademark of Heta A/S E-mail: heta@heta.dk and changes.
-
Page 3: Installation Instructions
installation instrUCtions the chimney connection safety clearances The chimney opening must follow national and Stoves must always be installed in line with nati- onal and, if applicable, local regulations. It is im- local regulations. However, the area of the ope- ning should never be less than 175 cm , which portant to abide by local regulations regarding... -
Page 4: First Firing
chimney and the low temperature of the fresh • The chimney contains false air. air. The length and insulation of the chimney, • The chimney and flue gas pipe are blocked. wind and weather conditions also have an effect • The house is too airtight (i.e. when there is on the ability of the chimney to generate appro- an insufficient supply of fresh air). -
Page 5: Lighting The Stove
energy source, you save the environment about Once the fire is established and the chimney is 1.3 kg CO every time you have used 1 kg nor- hot (after about 3-5 minutes) closed door and mal wood. regulate the air into operating position. We re- commend, all of the first fuel is burned with the Chimney fires combustion air fully open in the operating po-... -
Page 6: Risk Of Explosion
PUrPose oF the ConVeCtion Vent Stoves in the Scan-Line 80 series are radiated- heat stoves, which use several kilograms of soapstone and stone mass to store heat. You can get even more out of the stored heat by re- gulating the convection air flow. -
Page 7: Operational Problems
Cleaning and repairing of soapstone powder and waterglass (available soapstone surfaces from Heta A/S). Mix the powder and waterglass to an appropriate consistency. Clean off any Soapstone is a relatively soft natural product. dust before applying the mixture. Brush the sur- It is therefore possible to repair scratches or face with waterglass to ensure good adhesion. -
Page 8: Emptying The Ash Pan
The stove allows connection to outside air through a Ø 100 mm inlet An aluflex Ø 100 mm hose is recommended (available from Heta), which can handle tempe- ratures up to 200° C Fig. 1 illustrates the two options – downwards or backwards. - Page 9 Changing flue outlet position from top to rear The stove flue outlet position must be changed to the rear position before installing the clad- ding. It is a good idea to remove the two heat storage stones before making the change. Flue outlet Blanking plate Swap the flue outlet connec-...
- Page 10 NOT be removed. The cladding must be positioned with holes at the top, in line with the installation instructions for soapstone/ceramic Scan-Line 80 and 80XL stoves on page 11-19. The dimensions on the drawing fig. 1 have...
- Page 11 CeraMiC Panels Heta recommends that stove installation be carried out by two people. The soapstone and ceramic panels must be handled with extreme care, as the corners and edges are very fragile. If the rear flue outlet is to be used, it is best to change this before installing the cladding.
- Page 12 Mounting of radiant plates - scan-line 80 with ceramic IMPORTANT !! Before using the Scan-Line 80 with ceramic, the two en- closed radiant plates must be mounted. ClaDDinG tyPe anD ProDUCt nUMBers Varenr. Antal Antal ceramic SL 80 SL 80XL...
- Page 13 Stoves are shipped from the factory with a 1 mm gap between the side plates. This gap can be adjusted using screws (4 on the SL 80 and 6 on the SL 80XL) to match the space between cladding panels C and D. Remove the air adjustment lever before installing the cladding.
- Page 15 Eight cladding stone panels (E) are used for the Scan-Line 80. These panels can be arranged however you want, as the same type of clad- ding stone panels are used on the opposite side of the stove.
- Page 16 Once the cladding stones (E) have been instal- led, install the top front stones (F). Follow the same procedure as for the other cladding sto- nes, except that the distance from the top of the cladding stones to the mounting pegs is 55 mm. Applies only to the SL 80 XL!!! These two cladding stones (F) are interchangeable.
- Page 17 Install the front stones near the door (G) fol- lowing the same procedure as for the other stones. Pull the door out slightly before installation. These stones are also interchangeable. Install the sign afterwards (only on the soapsto- ne model). These two cover plates should be installed once the cladding stones have been installed.
- Page 18 Scan- Line 80 XL, which can be installed before or after the cladding is installed. The Scan-Line 80 XL is shipped from the fac- tory with two thermastones. The other two can be purchased as optional extras.
- Page 19 Install the convection top panel as follows: 1: push (x) into the slot (y) in the top stone. 2: then push (z) into position in the hole between the top stones. Correct installation of the convection top panel and top cladding. If the top flue outlet is being used, remove the centre cover plate using pliers.
- Page 20 Guarantee Heta wood stoves, subjected to a strict quality - Damage caused by improper use. control during production and before delivery to - Transportation costs for warranty repair. the dealer. - Assembly / disassembly of warranty repair. Therefore, the stoves guarantee is...
