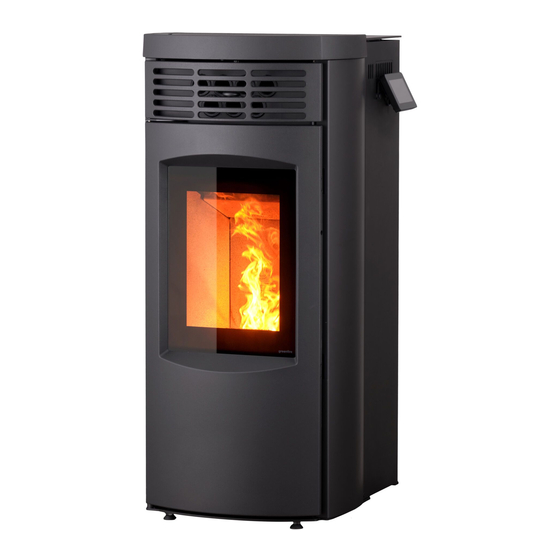

- Page 1 OPERATING AND INSTALLATION INSTRUCTIONS SCAN-LINE GREEN 300 www.heta.dk DANISH DESIGN . DANISH QUALITY . DANISH PRODUCTION...
-
Page 2: Declaration Of Performance
Signed on behalf the manufacturer of 01.07.2019 ____________________________________________________________________________________________________________________ In case of any change of the above-mentioned production type this Declaration of Performance becomes invalid. Heta A/S, Jupitervej 22, DK-7620 Lemvig, Tlf. +45 9663 0600, www.heta.dk Side 1 of 1... -
Page 3: Table Of Contents
Congratulations on your new wood stove, we are confident that you will be more than satis- fied with your new Heta stove. Especially if you follow the following advice and instructions. The Green 300 pellet stove is approved under EN 14785. -
Page 4: Before Installation
BEFORE INSTALLATION Heta stoves are quality products, therefore, your first impression is very important! We have a good logistics network, which transports Heta products with great care for our dealers. Nevertheless, when in transport or handling, damage of the often-heavy stoves can occur. It is important that upon receipt check your Heta product completely and report any damage or defects to your dealer. - Page 5 Q.C. check Operating / Instruction manual Data plate Required tools and grease are not supplied. 8056-0000-DK DOP-Scan-line 1000 -XXXX-2016 Heta A/S Jupitervej 22 7620 Lemvig Denmark 2016 Produk�ons år: DS/EN 13240, AEA, NS 3058/3059, Aus §15A Produkt beskrivelse Produk�onsnummer Scan-Line 1000 brændeovn Afstand �l brændbart materiale - bag ovn...
-
Page 6: Operating Instructions
1. OPERATING INSTRUCTIONS Before using First firing Inden pilleovnen tages i brug, skal du sikre dig, The stove paint is fully cured from the factory, at opstillingsbetingelserne er overholdt. but a minor unpleasant odour could still arise. Se side 21. Lighting the stove 1. -
Page 7: Display
Display Transparent protective film Avoid water or other liquids coming It is recommended that you remove the protec- into contact with the electronics, tive film before using the Display to guarantee which may be destroyed and result the best performance of the sensitive (touch) in technical failures or malfunction surface. -
Page 8: Menu Overview
Menu overview Slide to turn on. Swipe for at tænde Settings Power Thermostats Manual Load Power Combustion Combustion Auto Calibrazione Ventilatore... - Page 9 Thermostats Room Room Manual Load Manual load Manual Load Manual load 00:00...
- Page 10 Costumization Settings System Menu Display Menu Settings Time and Date Language Remote Control Calibration Auger Calibration Fan Display Menu Brightness Minimum brightness Standby display Control panel address Reboot control panel Info Menu Røggas temperatur Stue temperatur Luftstøm Ventilatorhastighed Exhaust temp. Room temp.
-
Page 11: Timer Setting
Timer setting Er52 Possible menus: CHRONO - OFF 22° Daily In DAILY, you can change three dif- ferent time settings for each day of DAILY WEEKLY DAILY the week. WEEKEND Weekly In WEEKLY, you can change three different times for all days. Weekdays/Weekend DAILY IN WEEKDAYS/WEEKEND you can... -
Page 12: Settings
Settings Safety systems 1. Select the desired language. The pellet stove is equipped with advanced sa- 2. Set the correct date and time. fety systems to prevent damage to the stove or the residential environment which could occur as a result of one of the elements breaking or Change of output/heat through a fault in the chimney. -
Page 13: Cleaning And Service Daily Cleaning
2. Cleaning and Service Daily Cleaning Cleaning the burn pot A clean burn pot is essential to ensure the pellet stove operates correctly and without problems. During operation, baked on ash deposits will de- velop and must be regularly removed, as these impede correct combustion. -
Page 14: Vermiculitestone
Service interval Cleaning the convection fan (*) There is a built-in service counter set to 1,800 ON Check that the convection fan turns easily by hours. The status of this SERVICE COUNTER turning it with your fingers. Clean off dust and can be found in the information menu. -
Page 15: Cleaning Interval
Cleaning interval Parts / Frequency Daily Weekly Monthly Semi-/annually Brændskål Ash pan Combustion chamber Glass Baffle plate Lubricate ash pan (**) Vermiculitestone Seals and gaskets Pellet tank Flue gas channel and chimney fan (*) Pressure switch (*) Convection fan (*) Internal flue pipe (*) Points marked with an asterisk (*) should only be carried out by an authorised dealer. -
Page 16: Troubleshooting
Troubleshooting Detailed explanations of sections through Alarms and errors Section a: An alarm will trigger an error screen display If the seal between these parts is not tight, un- and the problem needs to be resolved as wanted air will be drawn through the pellet tank soon as possible. -
Page 17: Error Codes And Descriptions
Error codes and descriptions Shut down due to insufficient flue gas temperature Er03 Shut down due to excessive flue gas temperature Er05 Error on signal flue vacuum pump encoder Er07 Er08 Encoder signal fault on flue vacuum pump Ignition error Er12 Power supply failure Er15... -
Page 18: Test Run
Test run Is the stove not burning cleanly? Start the stove and test all combustion levels If the stove settings are correct but the combu- 3, 2, and 1. During this process, it is important to stion produces dark flames, several factors may check that there is sufficient combustion airflow be having an influence. -
Page 19: Stove Data Table En 14785
Green 300 Average temperature in the flue pipe connector: ~ 91°C. Pos. C fig. 1 WEIGHT TABLE * Scan-Line Green 300 144 kg * Scan-Line Green 300, full stone 195 kg * Scan-Line Green 300, stone top 155 kg Guarantee... -
Page 20: Træpiller
If the water content is very high, it will negatively impact the energy level, just as you risk more Heta A/S recommends using Premium wood ash build-up inside the chimney. However, wa- pellets from Heatlets.dk to get the most out ter is a necessary component of the wood pel- of your pellet stove. -
Page 21: Installation Instructions
Installation Instructions Contents Installation instructions ..............22 General information ................22 Placement ..................22 Safety information ................22 Liability ....................22 Floor ....................22 The chimney connection ..............23 Chimney draft ..................23 External air supply ................23 Installation ..................23 Distance Provisions ................ -
Page 22: Installation Instructions
European and possibly local re- tions enclosed herein. gulations. You must follow local regulations with Heta A/S disclaims all liability in relation to in- regard to installation of chimney and connection correct use of the stove, abnormal usage by the to the chimney. -
Page 23: The Chimney Connection
The chimney connection Installation The flue gas system is dependent on a slight Either remove the cover A/B/C depending on underpressure in th e combustion chamber and the outlet you want to use. it is very important that the chimney exhausts to outside air and not to an enclosed or semi- Then install the packing H on either outlet F/G. -
Page 24: Distance Provisions
Distance Provisions There is a difference between installation next to We recommend a minimum of 5 cm to facilitate flammable wall or non-flammable wall. If the wall air circulation around the stove. is made of non-flammable material, the stove in If in doubt, contact your chimney sweep for ad- principle may be placed flush against it. -
Page 25: Stovedrawings/Measurments
Stovedrawings/measurments Ø45... -
Page 26: Eu Declaration Of Conformity
Din plus certificeringsprogram Nach DIN/EN 14785 Ovnen er testet og godkendt, hos det akkrediterede prøvningsinstitut. Teknologisk institut Kongsvang Allé 29 8000 Århus C Rapport Nr. 300-ELAB-2330-EN Heta A/S. D. 06/06-2019 _____________________________ Martin Bach. Fabrikschef _________________________________________________________________________________________ Heta A/S Tlf. +45 96 63 06 00 Jupitervej 22 Fax.+45 96 63 06 16...
