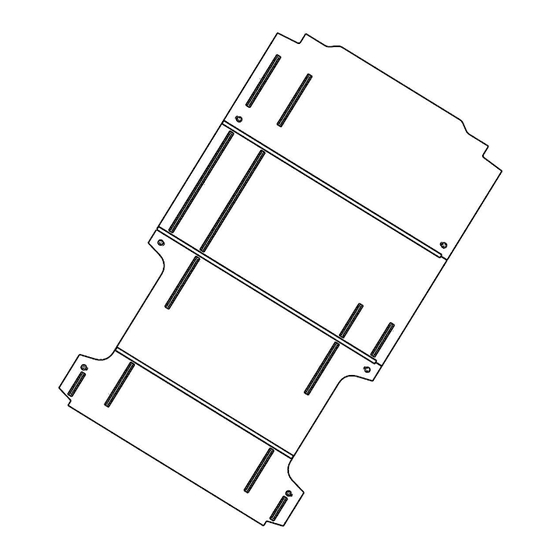

- Page 1 Instruction Guide 40475PR Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@holman.com 20240117R1 DATE: ________________...
-
Page 2: Table Of Contents
• Any previously installed flooring must be removed prior to installing Holman flooring. • Floor must be assembled in vehicle. • 40475HW hardware kit may be necessary to install some accessories to Holman flooring. (40475HW sold separately). • 40477P threshold kit must be installed when installing Holman flooring. (40477P sold separately). -
Page 3: Parts List
Instructions – 40475PR Parts List For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 2... -
Page 4: Hardware
Instructions – 40475PR Hardware Step 1 – Remove Factory D-Rings • Using T40 Torx bit remove six OEM D-Rings. Be sure to save D-Rings if re-installation is desired. For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 3... -
Page 5: Step 2 - Position Floor
• If re-installing OEM D-Rings remove, OEM bolt from D-Ring. • Using M8 x 35mm hex head bolt, 5/16” lock washer, OEM D-Ring (if desired) and 5/16” fender washer, bolt through Holman floor at OEM D-Ring locations. GO BACK AND TIGHTEN ALL 5/16” Lock HARDWARE. -
Page 6: Attaching Shelving To Floor
1-1/8” drill bit. • In the center of each hole, install a plus nut using the instructions below. • Use 1” x 3/8” plastic spacer (Holman p/n 40501) in each hole as needed to attach accessories to steel van floor. -
Page 7: Install Plus Nuts
Instructions – 40475PR Install Plus Nuts DO NOT drill beyond depth of floor or upper installation surface. Always check for wires, fuel tanks and lines, brake lines and other important vehicle functionality items prior to drilling and installing all products. •...
