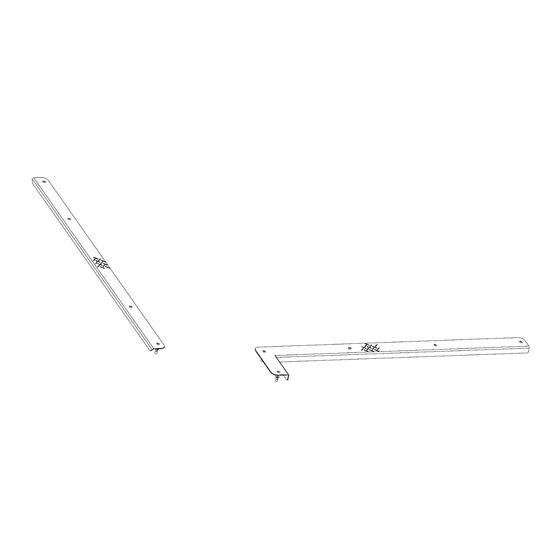

- Page 1 Instruction Guide 40477S Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@Holman.com 20240108R1 DATE: ________________...
-
Page 2: Table Of Contents
Drill * Sold Separately. Before You Begin • Read all instructions prior to assembling or installing any Holman product. • Always locate your installation locations prior to performing any work. • ENSURE SAFETY WHILE INSTALLING OR DRILLING INTO VEHICLE. • Plus Nut Installation Tool Kit (P9902) is not included and must be purchased separately. -
Page 3: Parts List
Instructions – 40477S Parts List Hardware Step 1 – Mark Holes For Door Threshold • Place slider threshold into doorway of van. Be sure to have the flanges in the down position. • While applying firm pressure against threshold, mark the four holes onto the floor or floor mat. -
Page 4: Step 3 - Install Door Threshold
Instructions – 40477S • Insert plus nut into hole with plus nut tool attached. • Using the 9/16” box wrench, hold the plus nut tool stationary and then tighten hex head bolt until plus nut is HOLD tightly gripping and does not spin when hex bolt is loosened. -
Page 5: Step 5 - Install Rear Threshold
Instructions – 40477S Step 5 – Install Rear Threshold • Place threshold back into van, on top of previously installed plus nuts. • Using four 1/4" x 2” flat head screws, bolt threshold to floor. GO BACK AND TIGHTEN ALL HARDWARE.
