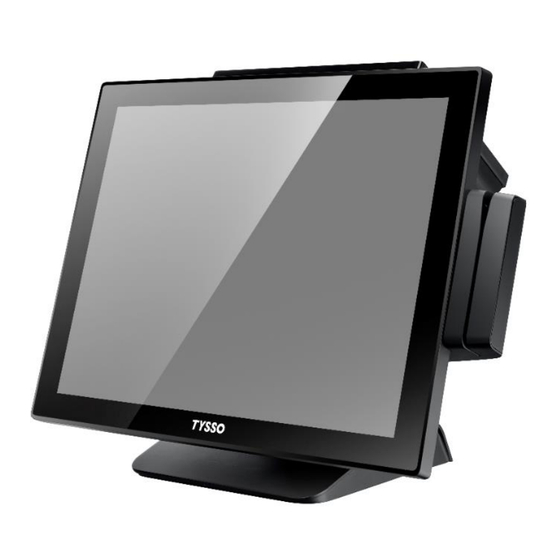

Tysso POS-1000B-P Quick Installation Manual



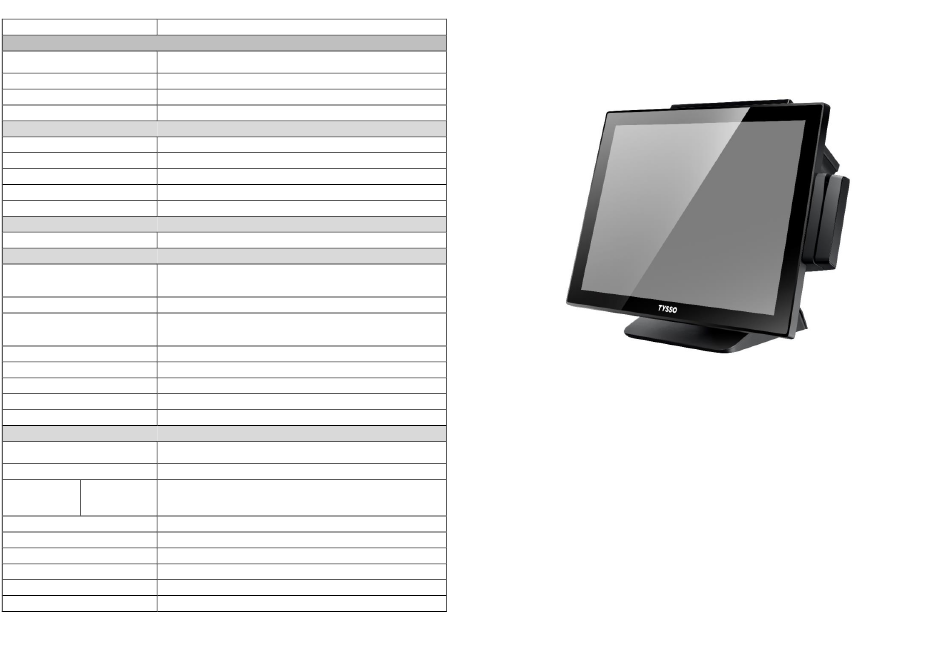

Specifications
Model
Main Board
CPU
BIOS
System Memory
OS Support POSReady7, Windows7, Windows8.1, Windows10, Linux
Display
Display Type
Brightness
Resolution
Touch Screen
Tilting Angle
Storage
HDD 1 x 2.5" SATA 2.0 HDD/SSD (Default) or m-SATA (option)
Interface
USB
LAN
COM
Parallel
VGA
Cash Drawer
DC Power Out
DC Power In
Others
Power Input
Front Panel
Compliance EMI & Safety
Weight
Dimension
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
POS-1000B-P
Intel® Bay Trail-D Celeron® J1900 Quad Core
(2M Cache, up to 2.42 GHz)
AMI UEFI BIOS
1 x 204-pin DDRIIIL 1333 SODIMM, up to 8GB
15" Full Flat LCD Monitor
300 nits
1024 x 768 Pixel
True-Flat 5-wire Resistive or Projected Capacitive Touch
15~85 Degrees
6 x USB type A
- 3 x USB 2.0 and 1 x USB 3.0 in I/O Bracket
- 2 x USB 2.0 in Panel Side
1 x RJ45 10/100/1000Mbps Giga Ethernet
- COM 1/2/3, DB9 type (with RI/+5V/12V)
- COM 4, USB Type A (with RI/+5V /12V)
- COM 5 default +12V for VFD
1 x DB25 Parallel Port (option)
1 x DB-15 VGA Port
1 x RJ-11 Port with 12V or 24V by jumper
1 x +12V/5A Power Out
1 x Standard Mini-DIN 4PIN type
Input : 100V ~ 240V/50 ~ 60Hz Input
Output : 12V@5.0A, 60W Adapter
IP Level IP65
CE EN55032/EN55024
FCC PART 15B
LVD EN60950-1
5 kg
356 (W) x 318 (H) x 207 (D) mm
0°C~40°C
20% ~ 80% RH non-condensing
-20°C~ 60°C
20% ~ 85% RH non-condensing
POS-1000B-P
Fanless Full-Flat POS Terminal
Quick Installation Guide
IMPORTANT SAFETY INFORMATION
 Read following instructions carefully.
 Use only parts, especially power adapter, recommended by the manufacturer;
unapproved parts may be hazardous.
 Make sure that the voltage applied to the power outlet is within the specified
range (100VAC ~240VAC).
Improper power source voltage range will cause damage.
 Power off the system and remove the power adapter while cleaning the system.
 Before powering on the system, make sure all the peripherals are
firmly installed.
Ver. 1.0
