Service Manual

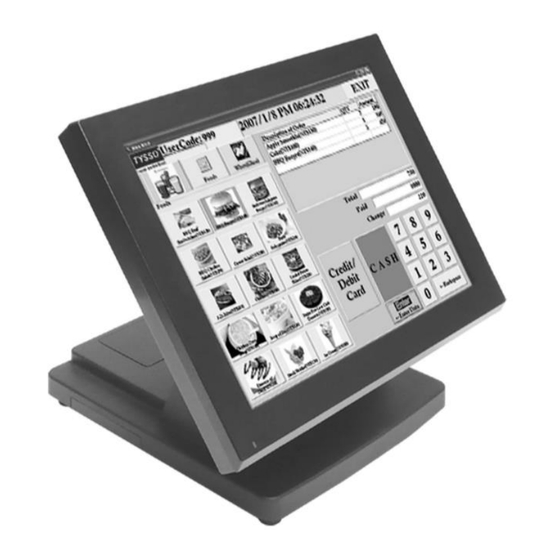

POS Peripheral Dock
PPD Series
PPD-1500 / PPD-1700
Ver.2.0
© Copyright Fametech Inc. (TYSSO) 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPD Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Tysso PPD Series

  • Page 1 Service Manual POS Peripheral Dock PPD Series PPD-1500 / PPD-1700 Ver.2.0 © Copyright Fametech Inc. (TYSSO) 2016...
  • Page 2: Table Of Contents

    Table of Contents I Part List ......................... 2 A. Explode......................... 2 B. Cables & Connectors .................... 4 II System Disassembly ....................8 A. Separate the Monitor from the Base ..............8 B. Disassemble Panel Kit ..................9 C. Disassemble Base Kit ..................16 Table of Figures Figure 1 Explode of the System ....................
  • Page 3: I Part List

    I Part List A. Explode Figure 1 Explode of the System - 2 -...
  • Page 4 PPD-1500 / PPD-1700 SERIES Part List No. Part Description Front Bezel (Black) 1 FrontBezel Front Bezel (Silver) 2 LED Indicator Power Indicator 3 Rubber Frame Touch Panel Rubber 4 Touch Panel Touch Panel 15 inch, LED Backlight (PPD-1500) 5 LCD Panel * 15 inch, CCFL type (PPD-1500) 17 inch, CCFL type (PPD-1700) 6 Panel Chassis...
  • Page 5: Cables & Connectors

    B. Cables & Connectors Figure 2 Cables - 4 -...
  • Page 6: Figure 3 I/O Board

    No. Description Notes The Inverter cable is ONLY for CCFL type LCD Panel. 1 Invertor Cable Connect the cable to Inverter and A/D Board. 2 Power Cable Connect the cable to A/D board and I/O Board. 3 Speakers Connect the Speakers to the A/D Board. 4 OSD Cable Connect the cable to A/D Board and OSD Board.
  • Page 7: Figure 5 A/D Board (A)

    Figure 5 A/D Board (A) Figure 6 A/D Board (B) - 6 -...
  • Page 8: Figure 7 Osd Board

    Figure 7 OSD Board To LCD Panel PPD-1500 To LCD Panel PPD-1700 Figure 8 Invertor Board - 7 -...
  • Page 9: System Disassembly

    II System Disassembly A. Separate the Monitor from the Base 1. Tilt the LCD panel to the horizontal level and unplug the cables. 2. Lift the hinge holder cover from the upper side edges as marked by the circles and push it down to remove it. 3.
  • Page 10: Disassemble Panel Kit

    4. Loosen the screw x 4 on the hinge holder and separate the monitor from the base. B. Disassemble Panel Kit 5. Loosen the screw x 7 to remove the back cover. - 9 -...
  • Page 11 6. Loosen the screw x 6 and the hex screw x 6 to remove the bracket. 7. Disconnect the cable and loosen the screw x 2 to remove the MSR kit. - 10 -...
  • Page 12 8. Disconnect the cable on the A/D board and loosen the screw x 8 to remove the speakers. For Old Type CCFL LCD Panel: PPD-1500: 9. Disconnect the 3 cables and loosen the screw x 2 to remove the invertor. PPD-1700: Disconnect the 4 cables and loosen the screw x 2 to remove the invertor.
  • Page 13 10. Disconnect the 2 cables and loosen the screw x 3 to remove the I/O board. 11. Disconnect the 4 cables and loosen the screw x 4 to remove the A/D board. - 12 -...
  • Page 14 12. Disconnect the 2 cables and loosen the screw x 2 to remove the Touch control board. 13. Disconnect the 2 cables and loosen the screw x 4 to remove the OSD control board. - 13 -...
  • Page 15 14. Tear the black tapes and disconnect the LVDS cable. LVDS cable (Right) of CCFL type LCD Panel Note: LED Backlight type LCD Panel Disconnect the Extended LCD Backlight Cable and LVDS cable. Store them to the secure location. Extended LCD Backlight Cable (Left) and LVDS cable (Right) Of LED Backlight type LCD Panel 15.
  • Page 16 16. Loosen the screw x 4 to remove the LCD panel holder. The screw of LCD panel holder (PPD-1700). 17. Remove the front cover. 18. Remove the rubber. - 15 -...
  • Page 17: Disassemble Base Kit

    C. Disassemble Base Kit 19. Turn over the base and loosen the screw x 2 to remove the power adaptor. 20. Remove the hinge swivels. - 16 -...
  • Page 18 21. Loosen the screw x 6 on both sides to remove the hinge holder. - 17 -...
  • Page 19 Revision History Date Version Note Description Feb 02, 2016 Ver. 2.0 New AD Board BP-PART-MON-2023LA-REV-B-V1 Part No removed AD Board Abolished New AD Board F2270 New LED Backlight LCD Add new LED Backlight 15-inch LCD Panel Panel. June 22, 2012 Ver.

This manual is also suitable for:

Ppd-1700Ppd-1500
