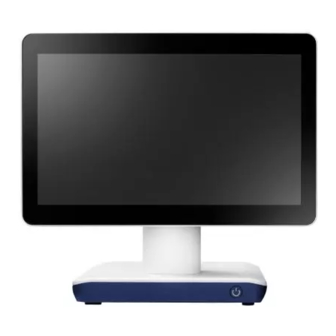

  • Page 1 TP-9X16 15.6-inch Touch Screen POS Terminal User Manual Installation Guide Copyright © 2021 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.

  • Page 2: Table Of Contents

    Contents General Information Revision History About This Manual Disclaimer Warning Caution Warranty Limits Trade Marks and Service Marks Important Safety Information Product Overview Packing Specifications Dimension Part Description I/O Ports POS Installation Unpack Your POS Install Your POS Copyright © 2021 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.

  • Page 3: General Information

    General Information Revision History Date Version Update Summary Remark Approved By Initial released 2021/11/22 V1.0 Harrel Chen Robert Kuo Copyright © 2021 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.

  • Page 4: About This Manual

    About This Manual The purpose of this user’s manual is to provide general information on TYSSO’s POS Terminal and to show the users how to configure the hardware-related configurations. The information in this manual is subject to change without notice due to rapid improvement on IT technology.

  • Page 5: Caution

    Warranty does not cover any damage caused by improper use. Trade Marks and Service Marks TYSSO is a registered trademark of FAMETECH INC. Other brand and product names are trademarks and registered trademarks and service marks of their respective owners.

  • Page 6: Important Safety Information

    Important Safety Information Read following instructions carefully.  Use only parts, especially power adapter, recommended by the manufacturer;  unapproved parts may be hazardous. Before plugging the power cord into the AC inlet of the power supply unit, make  sure that the voltage applied to the power outlet is within the specified range (100V~240V).

  • Page 7: Product Overview

    Product Overview Packing POS Unit Power Adapter AC Power Cord Quick Installation Guide Contents  POS Unit  Power Adapter  AC Power Cord  Quick Installation Guide  RJ-45 to RS-232-DB9 Male Cable Optional Accessories*   Magnetic Stripe Card Reader (MSR) Secondary LCD Display ...

  • Page 8: Specifications

    Specifications Model Name TP-9616 TP-9716U TP-9816U 6th Generation Sky 7th Generation Kaby Intel® Celeron® J6412 Lake Lake Intel® Core™ i5-6360U Intel® Core™ i3-7020U Processor (1.5M Cache, Max. 2.6 GHz) Processor (4M Cache, Processor (3M Cache, Max. 3.1 GHz) 2.30 GHz) System Memory 2 x 260 pin DDR4 SO-DIMM, up to 32GB Storage...
  • Page 9 Optional Accessories Optional Accessories 9.7" (1024 x 768) and 10.1" (1280 x 800) LCD Display 2nd Display Optional PCAP Touchscreen Customer Display VFD and LCD Customer Display Bi-directional, Comply with ISO 7811 and Three Track support Wi-Fi Wi-Fi IEEE 802.11 a/b/g/n/ac *For further information relating to the other optional peripherals, please contact the local representatives or technical support personnel of the providers.

  • Page 10: Dimension

    Dimension Left View Front View Right View POS with 2nd Display POS with VFD Rear View *Tilt Adjustment: 0° ~ 90° Copyright © 2021 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.
  • Page 11 Bottom View Note:  The Magnetic Stripe Card Reader (MSR) and Customer Display/2nd Display are optional parts and may not be included in the package. Please purchase the optional parts separately. Copyright © 2021 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.

  • Page 12: Part Description

    Part Description  Front View LCD Touch Screen MSR Module (Optional) Base Power Button  Rear View Customer Display (Optional) MSR Module (Optional) Base I/O Ports Copyright © 2021 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.
  • Page 13  Side View Customer Display (Optional) MSR Module (Optional) Left View (With Customer Display) Left View Customer Display (Optional) MSR Module (Optional) Side I/O Port (USB) Right View (With Customer Display) Right View Copyright © 2021 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.
  • Page 14  Bottom View (Base)  Rear View (Base) TP-9616: TP-9716U/TP-9816U: Copyright © 2021 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.

  • Page 15: I/O Ports

    I/O Ports TP-9616: USB-A 3.2 USB-A 3.0 x 2 LINE-OUT MIC-IN 12V DC RJ11 RJ-45 COM3 COM2 COM1 HDMI (CR) (LAN) USB-C 3.2 Main Power Input TP-9716U/TP-9816U: USB-A 3.0 x 4 Bottom I/O Ports USB-A 3.0 x 1 Side I/O Ports Copyright ©...
  • Page 16 I/O Ports Descriptions: I/O Port Description 12V-OUT 1 x 12VDC Power Out 12V-IN 1 x Standard DIN 4PIN type Main Power Connector Cash Drawer 1 x RJ11 port supports 2 cash drawer with 12V or 24V by jumper 1 x RJ-45 10/100/1000Mbps Giga Ethernet Connect devices with USB connectors TP-9616: 1 x USB-A 3.2, 1 x USB-C 3.2, 3 x USB-A 3.0 (Bottom)

  • Page 17: Pos Installation

    POS Installation Unpack Your POS The contents may vary with different options. If there’s any physical damage or missing parts, please contact your supplier immediately. Please keep all packing materials in case you need to ship back the device for service. ...

  • Page 18: Install Your Pos

    Install Your POS Power Adapter POS Terminal Electrical Outlet Power Cord Place the POS terminal on the proper location. Connect the power connector to the POS unit (Main Power Input). Connect the optional peripherals to the POS (for example: Receipt Printer, Barcode Scanner, etc.) Connect the AC power cord to the power adapter, and plug the AC power cord to the power source (for example: electrical outlet).
