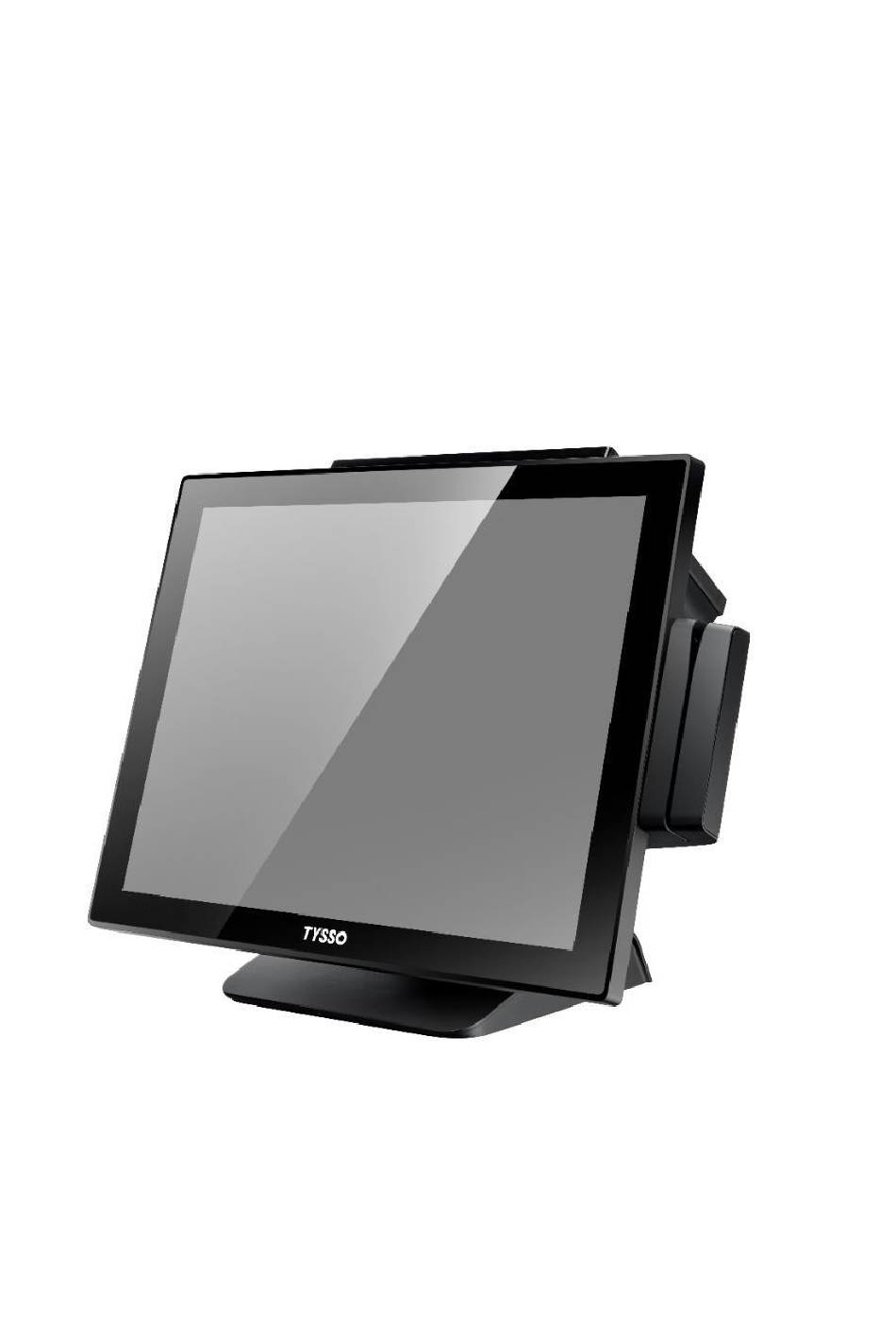

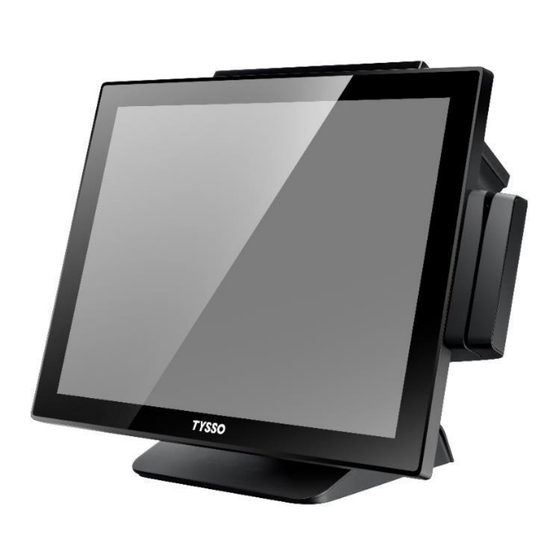

- Page 1 POS-1000 Fanless Full-Flat POS Terminal User Manual POS-1000B-P Ver. 1.0 © Copyright Fametech Inc. (TYSSO), 2019...
-
Page 2: Disclaimer
General Information ABOUT THIS MANUAL The purpose of this user’s manual is to provide general information on TYSSO’s POS Terminal and to show the users how to configure the hardware-related configurations. The information in this manual is subject to change without notice due to rapid improvement on IT technology. -
Page 3: Caution
Warranty does not cover any damage caused by improper use. TRADE MARKS AND SERVICE MARKS TYSSO is a registered trademark of FAMETECH INC. Other brand and product names are trademarks and registered trademarks and service marks of their respective owners. -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION Read following instructions carefully. Use only parts, especially power adapter, recommended by the manufacturer; unapproved parts may be hazardous. Before plugging the power cord into the AC inlet of the power supply unit, make sure that the voltage applied to the power outlet is within the specified range (100V~240V). -
Page 5: Table Of Contents
Contents General Information ....................... i ABOUT THIS MANUAL ......................i DISCLAIMER ........................i WARNING ..........................i CAUTION ..........................ii WARRANTY LIMITS ......................ii TRADE MARKS AND SERVICE MARKS ................ii IMPORTANT SAFETY INFORMATION ................... iii 1. Product Overview ....................1 1.1. -
Page 6: Product Overview
1. Product Overview 1.1. Packing POS Unit Power Adaptor AC Power Cord Quick Installation Guide Contents POS Unit x 1 Power Adapter x 1 AC Power Cord x 1 Quick Installation Guide x 1 Optional Accessories ... -
Page 7: Specifications
1.2. Specifications Model POS-1000B-P Main Board Intel® Bay Trail-D Platform, Celeron® Processor J1900 (2.0 GHz, 2M Cache) System Memory 2 x DDR3L SO-DIMM 1333MHz, up to 8 GB Graphic Intel® HD Graphics OS Support POSReady7, Windows7, Windows8.1, Windows10, Linux Display 15”... - Page 8 Optional Accessories Optional Accessories 8" (800x 600), 10.4"(800x600) and 15" (1024x768) LCD Display selectable 2nd Display Optional Touchscreen Customer Display VFD, 20 Columns x 2 Lines Magnetic Stripe Reader Bi-directional, comply with ISO 7811 and Track 1 & 2 & 3 supported (MSR) (HID USB) i-Button...
- Page 9 Dimensions Left View Front View Right View Rear View Bottom View Note: The Magnetic Stripe Card Reader (MSR) and i-Button Module are optional parts and may not be included in the package. Please purchase the optional parts separately. - 4 -...
-
Page 10: Parts Descriptions
1.3. Parts Descriptions Front View Touch Screen i-Button Module (Optional) MSR Module (Optional) Power Indicator Base Rear View Customer Display (Optional) i-Button Module (Optional) MSR Module (Optional) Power Switch Base Cable Outlet - 5 -... - Page 11 Side View Customer Display (Optional) Side I/O Port (USB) i-Button Module Power Switch (Optional) Power Switch Left View (with Optional i-Button) Left View Customer Display (Optional) Side I/O Port (USB) Side I/O Port (RS-232) MSR Module (Optional) Right View (with Optional MSR &i-Button) Right View Note: The right I/O Ports (USB,RS-232) are reserved for MSR Module.
- Page 12 Bottom View (Base) Cable Slot Bottom View (POS Unit) HDD Slot Bottom I/O Ports - 7 -...
-
Page 13: I/O Ports
1.4. I/O Ports Main Power Input Parallel Port 12VDC USB Ports COM 3 (Optional) RJ-45 COM 1 Modular HDD Slot COM 2 (LAN) RJ-11 (CashDrawer) Bottom I/O Ports Side I/O ports (USB) Side I/O Ports - 8 -... - Page 14 I/O Ports Descriptions: I/O Port Description Connect devices with USB connectors. 12V IN 4-pin rounded-power-jack for connecting an AC to +12VDC power adapter. There are DB9 type and USB Type A with RI/+5VDC/+12VDC output by BIOS COM1, COM2, COM3: DB9 type with RI/+5V /12V by BIOS setting in I/O Bracket COM4: USB Type A (with RI/+5V /12V by BIOS setting in Panel Side...
-
Page 15: Pos Installation
2. POS Installation 2.1. Unpack Your POS The contents may vary with different options. If there’s any physical damage or missing parts, please contact your supplier immediately. Please keep all packing materials in case you need to ship back the device for service. Unpacking... -
Page 16: Install Your Pos System
2.2. Install Your POS System Power Adaptor POS Terminal Power Cord Electrical Outlet Place the POS terminal on the proper location. Pass the power connector of the power adaptor through the Base Cable Slot Connect the power connector to the POS unit (Main Power Input). -
Page 17: Appendix
3. Appendix 3.1. Replace Hard Disk HDD Module (HDD Inside) Remove the securing screw of the HDD Module from the POS unit. b. Pull out the HDD Module to detach it from POS terminal. Securing Scre Loosen the securing screws to remove the hard disk from the bracket. -
Page 18: Install The Modular Customer Display (Optional)
3.2. Install the Modular Customer Display (Optional) There is a connector for the Modular Customer Display. Securing Screws Modular Customer Display Connector Connect the connector of the Modular Customer Display to the POS Unit. Install the Modular Customer Display to the POS Unit. -
Page 19: Install The Msr & I-Button Module (Optional)
3.3. Install the MSR & i-Button Module (Optional) a. Turn off the POS unit. i-Button b. Install the i-Button Module to the I/O port. Module Install the MSR Module to the Side I/O port. MSR Module Tighten the securing screws and Turn-on the POS unit.
