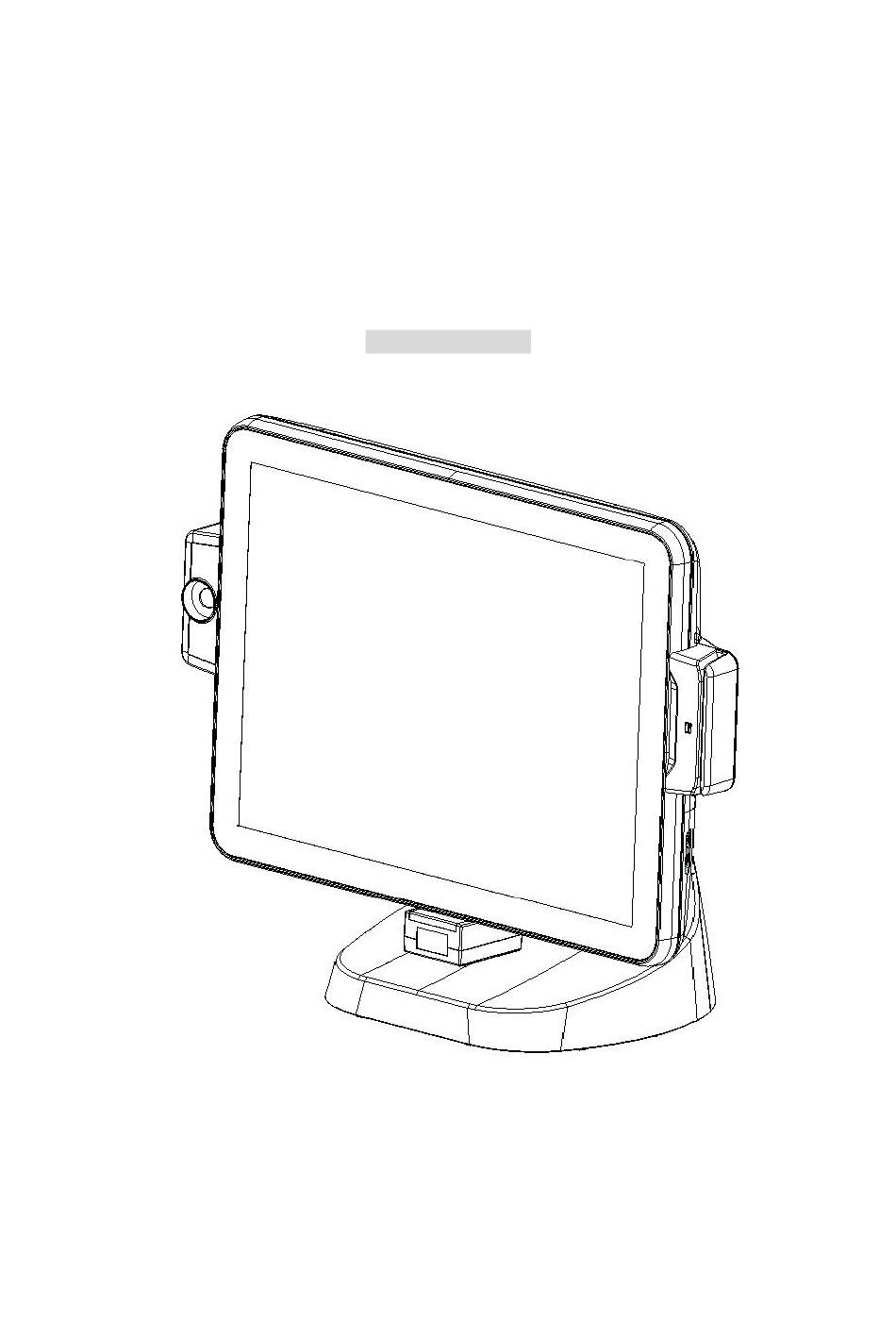

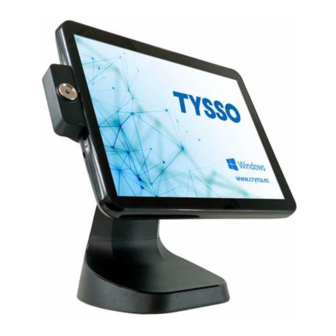

  • Page 1 TP-7715 Series Fanless Full-Flat POS Terminal User Manual Installation Guide Ver. 1.0 © Copyright Fametech Inc. (TYSSO), 2018...

  • Page 2: General Information

    General Information ABOUT THIS MANUAL The purpose of this user’s manual is to provide general information on TYSSO’s POS Terminal and to show the users how to configure the hardware-related configurations. The information in this manual is subject to change without notice due to rapid improvement on IT technology.

  • Page 3: Caution

    Warranty does not cover any damage caused by improper use. TRADE MARKS AND SERVICE MARKS TYSSO is a registered trademark of FAMETECH INC. Other brand and product names are trademarks and registered trademarks and service marks of their respective owners.

  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION Read following instructions carefully.  Use only parts, especially power adapter, recommended by the manufacturer; unapproved  parts may be hazardous. Before plugging the power cord into the AC inlet of the power supply unit, make sure that the ...

  • Page 5: Table Of Contents

    Contents General Information ....................... i ABOUT THIS MANUAL......................i DISCLAIMER ........................i WARNING ..........................i CAUTION ..........................ii WARRANTY LIMITS ......................ii TRADE MARKS AND SERVICE MARKS ................ii IMPORTANT SAFETY INFORMATION ................iii 1. Product Overview ....................1 1.1. Packing ........................1 1.2.

  • Page 6: Product Overview

    1. Product Overview 1.1. Packing POS Terminal Power Adapter* AC Power Cord Quick Installation Guide (installed on the Base) Contents  POS Terminal  Power Adapter*  AC Power Cord  RJ-45 to RS-232-DB9 Male Cable  Quick Installation Guide Optional Accessories ** ...

  • Page 7: Specifications

    1.2. Specifications Model TP-7715 Series TP-7715 TP-7715P Platform H110 Chipset Q170 Chipset Intel® Celeron G3900TE (2.3GHz, Dual Core, 2M Cache) Intel® i3-6100TE (2.7GHz, Dual Core, 4M Cache) Intel® i5-6500TE Intel® i5-6500TE (up to 3.3GHz, Quad Core, 4M Cache) (up to 3.3GHz, Quad Core, 4M Intel®...
  • Page 8 1 x reserved (Max Resolution: 1920 x 1080) for 2nd Display HDMI 1 x HDMI (horizontal type) Cash Drawer 1 x RJ-11, +12VDC/+24VDC by jumper select Audio 1 x Line out DC Out 1 x +12VDC DC In 1 x +12VDC Others +12V/7.5A, 90W External Power Adapter with Cable Head Lock and Hide in Stand...
  • Page 9 Peripherals Optional Peripheral 9.7", 350nits and resolution up to 1024 x 768 2nd Display 15", 300nits and resolution up to 1024 x 768 Optional PCAP Touch supported Customer Display VFD, 20 Columns x 2 Lines Bi-directional, comply with ISO 7811 and Track 1/2/3 (HID USB) Bi-directional, comply with ISO 7811 and Track 1/2/3 (HID USB) Read/write follow ISO7816 /EMV specification and Chip Card Reader...
  • Page 10 Dimensions  Top View Left View Front View Right View Rear View Bottom View Note: The Magnetic Stripe Card Reader (MSR) and i-Button Module are optional parts and may not be included in the package. Please purchase the optional parts separately. - 5 -...

  • Page 11: Parts Descriptions

    1.3. Parts Descriptions  Front View Touch Screen i-Button (Optional) (Optional) Power Indicator 2D Barcode Scanner Base  Bottom View (Base, with AC Power Adapter) AC Power Cord Connector Base - 6 -...

  • Page 12: Rear View

     Rear View Customer Display (Optional) i-Button (Optional) (Optional) Top Cover Power Switch Back Cover Cable Access Opening - 7 -...
  • Page 13  Base Cable Routing Slots Cable Access Opening Cable Cable Routing Routing Slot Slot Base Cable Routing Slots (Covers Removed) Bottom I/O Ports  There are two types I/O ports (Type A and Type B) for variety of applications. Type A: Standard USB Version Type B: Power USB Version Note: For Type B (Power USB Version), please use the supplied +12V/12.5A, 150W External Power...

  • Page 14: I/O Ports Descriptions

    1.4. I/O Ports Descriptions  Type A (Standard USB Version) Main Power Input Cash 12V DC LINEOUT COM 1 COM 3 USB Ports Drawer USB Ports HDMI COM 4 LAN Ports COM 2 I/O Ports Descriptions: I/O Port Description LINE OUT 1 x audio connector for connecting an external audio device The DB9 female type serial ports with power output COM 1 / COM 2...
  • Page 15  Type B (Power USB Version) Main Power Input Cash 12V DC COM 1 COM 3 LINEOUT USB Ports Drawer HDMI COM 4 LAN Ports COM 2 Power USB I/O Ports Descriptions: I/O Port Description LINE OUT 1 x audio connector for connecting an external audio device The DB9 female type serial ports with power output COM 1 / COM 2 selectable by BIOS:...

  • Page 16: Pos Installation

    2. POS Installation 2.1. Unpack Your POS The contents may vary with different options. If there’s any physical damage or missing parts, please contact your supplier immediately. Please keep all packing materials in case you need to ship back the device for service. ...

  • Page 17: Install Your Pos

    2.2. Install Your POS  Type A: Electrical Outlet Power Cord POS Terminal Connect the Power cord to POS Terminal (Type A: Standard USB Version)  Type B: Power Adapter Electrical Outlet Power Cord POS Terminal Connect the Power Cord to POS Terminal (Type B: Power USB Version with External Power Adapter) - 12 -...
  • Page 18 Place the POS terminal on the proper location. Connect the power cord to the POS terminal. (The Power Adapter is pre-installed on the Base). Cable Access Opening Cable Access Opening Power Cord of the Base Connect the optional peripherals to the POS (for example: Mouse, Keyboard, and Barcode Scanner).

  • Page 19: Cable Management

    2.3. Cable Management When installing the optional peripherals or external power adapter (for Type B, Power USB Version) you can route the cables efficiently through the cable routing slots of the Base. Top Cover a. Remove the Top Cover of the Base. b.
  • Page 20 c. Tilt the POS terminal to the proper angle. d. Pass the cable through the Cable Access Opening and connect to the I/O port. Cable Access Opening e. Arrange the cable and insert to the Cable Routing Cable Routing Cable Routing Slot (Left or Right). Slot Slot (Left)

  • Page 21: Appendix

    Appendix A. Install LM-2010-X Secondary (2nd) LCD Display (Optional) a. Remove the Protective Cover of the POS terminal. Top Cover Protective Cover b. Remove the Top Cover of the 2nd LCD Display. LCD Display c. Adjust the angle of the 2nd LCD Display horizontally.

  • Page 22: Osd Control Button Of The Secondary (2Nd) Lcd Display

     OSD Control Button of the Secondary (2nd) LCD Display The Control Buttons are located in the rear of the Secondary LCD Display. Press and pull downward to remove the back cover. Control Buttons Back Cover MENU LEFT / RIGHT ENTER LED Indicator POWER...

  • Page 23: Install The Modular Customer Display (Optional)

    B. Install the Modular Customer Display (Optional) Remove the Top Cover of the Customer Display. b. Remove the Protective Cover of the Top Cover POS terminal. Protective Cover Modular Customer Display There is a connector for the Modular Customer Display. Connector Modular Adjust the Customer Display horizontally.

  • Page 24: Install The Msr & I-Button Module (Optional)

    C. Install the MSR & i-Button Module (Optional) To install the i-Button Module: a. Turn Off the POS Terminal. Remove the Protective Covers on the two sides of the POS terminal. Protective Protective Cover Cover b. Install the i-Button Module to the POS terminal.
  • Page 25 To Install the MSR Module: e. Install the MSR Module to the POS terminal. Note: Connect the connector of MSR to the MSR Module (Back Cover Removed) connector of POS terminal. Connect the connector of MSR to the POS terminal f.

  • Page 26: Replace The Hard Disk Drive Of Your Pos Terminal

    D. Replace the Hard Disk Drive of Your POS Terminal  Replace the Hard Disk Drive on the Back of POS Terminal There is a HDD drive slot on the side of the POS terminal (Main Hard Disk). a. Remove the back cover of MSR (if installed). Remove the securing screws and disconnect the MSR from the POS terminal.
  • Page 27 TIP: Replace a New Hard Disk to the HDD Bracket Bracket 1. Loosen the securing screws to remove the Hard Disk hard disk from the bracket. Then replace a new hard disk. 2. Secure the new HDD to the bracket. Securing Screws 3.

  • Page 28: Replace The Hard Disk Drive On The Base

     Replace the Hard Disk Drive on the Base There is a Hard Disk Drive installed inside the Base. To replace the Hard Disk Drive: a. The Hard Disk Drive is installed inside the Base. Hard Disk Drive inside the Base HDD Module b.
  • Page 29 TIP: Replace a New Hard Disk to the HDD Bracket Hard Disk 1. Loosen the securing screws to remove the hard disk from the bracket. Then replace a new hard disk. Bracket 2. Secure the new HDD to the bracket. Securing Screws 3.

This manual is also suitable for:
