About This Manual The purpose of this user’s manual is to provide general information on TYSSO’s POS Terminal and to show the users how to configure the hardware-related configurations. The information in this manual is subject to change without notice due to rapid improvement on IT technology.
Warranty does not cover any damage caused by improper use. Trade Marks and Service Marks TYSSO is a registered trademark of FAMETECH INC. Other brand and product names are trademarks and registered trademarks and service marks of their respective owners.
Important Safety Information Read following instructions carefully. Use only parts, especially power adapter, recommended by the manufacturer; unapproved parts may be hazardous. Before plugging the power cord into the AC inlet of the power supply unit, make sure that the voltage applied to the power outlet is within the specified range (100V~240V).

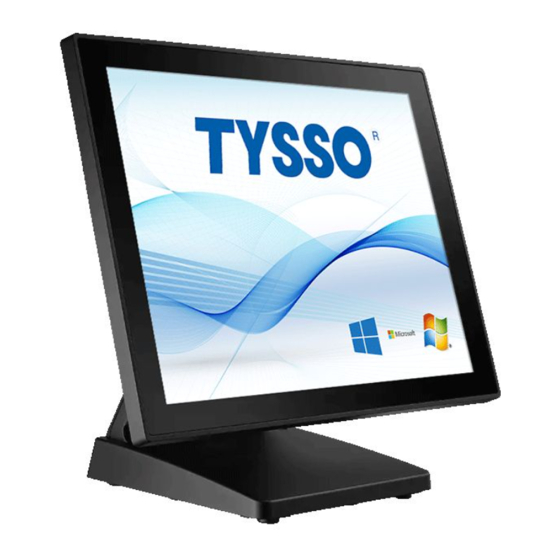

Product Overview Packing POS Unit Power Adapter AC Power Cord Contents POS Unit Power Adapter (pre-installed to the base) AC Power Cord RJ45 to RS-232-DB9 Male Cable Optional Accessories* Magnetic Stripe Card Reader (MSR) i-Button Module ...
Specifications Model Name TP-1615 Processor Intel® Elkhart Lake Celeron® J6412 (1.5M Cache, up to 2.60 GHz) System Memory 2 x 260 pin DDR4 SO-DIMM, up to 32GB Storage 1 x M.2 SATA and PCIe SSD 15-inch TFT LCD with LED Backlight...
Page 9
Optional Accessories Optional Accessories 8" (800x 600), 9.7" (1024X768) , 10.1" (1280x800) and 15" (1024x768) LCD Display 2nd Display Optional PCAP Touchscreen Customer Display VFD and LCD Customer Display Bi-directional, Comply with ISO 7811 and Three Track support MSR - Comply with ISO 7811/JIS II and Three Track Combo Card Reader RFID - Comply Mifare, ISO14443AB-4 and Felica i-Button...
Dimension Left View Front View Right View Rear View Bottom View Note: The Magnetic Stripe Card Reader (MSR) and i-Button Module are optional peripherals and may not be included in the package. Please consult the local representatives for further information.
Page 12
Side View Customer Display (Optional) Side I/O Port (USB) i-Button Module Power Switch (Optional) Power Switch Left View (with Optional i-Button) Left View Customer Display (Optional) RFID Antenna Side I/O Port (Optional) (USB) Side I/O Port MSR Module (RS-232) (Optional) Right View (with Optional MSR) Right View...
Page 15
I/O Ports Descriptions: I/O Port Description Mic In 1 x Mic-in for microphone. LINE OUT 1 x Line-out for earphone or speaker. HDMI 1 x HDMI for transmitting data to monitor 3 x COM (RJ45) and 1 x COM (USB) COM1~COM3: RJ45, RI/5V/12V supported COM4: USB Type A Connect devices with USB type A connectors...
POS Installation Unpack Your POS The contents may vary with different options. If there’s any physical damage or missing parts, please contact your supplier immediately. Please keep all packing materials in case you need to ship back the device for service. ...
Install Your POS Power Adapter Power Cord POS Terminal Electrical Outlet Place the POS terminal on a proper surface Push/Pass the power cord of the power adapter through the Base Cable Slot and connect to the power port (Main Power Input) of the POS unit.
Appendix Install the Modular Customer Display (Optional) a. Remove the cover of the connectors Securing b. Connect the connector of the Modular Screws x 2 Customer Display to the POS Unit (as indicated below by red mark). c. Tighten the securing screws of Modular Customer Display Modular Customer Display.
Install the 2nd Display (Optional) 2nd Display a. Remove the cover of the connectors b. Connect the connector of the Securing Screws x 2 2nd Display to the POS Unit (as indicated below by blue mark). c. Tighten the securing screws of the 2nd Display.
Install the MSR & i-Button Module (Optional) a. Switch the POS Unit Off. b. Install the i-Button Module to i-Button Module the I/O port. Power Switch c. Install the MSR Module to the Side I/O port. MSR Module d. Tighten the securing screws and switch the POS Unit on Securing Screws x 2 Module...
