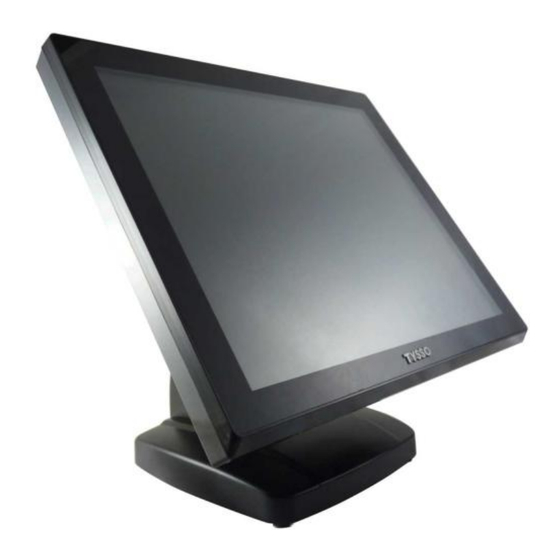

- Page 1 Service Manual POS-8017F 17-inch Full Flat LCD POS Terminal POS-8017F-D2550 / POS-8017F-i/POS-8017F-B Version 1.0 © Copyright Fametech Inc. (TYSSO) 2015...
-
Page 3: Table Of Contents
Table of Contents Parts Description ................1 Examining Your System ................1 Exploded View ......................1 Parts Description ....................2 Main Board ......................3 System Disassembly ................. 9 Before You Start ..................9 Detach the Base from POS Unit ............... 10 Disassemble the POS Unit ............... - Page 4 Table of Figures Figure 1 Exploded View of the System ..............1 Figure 2 Main board Layout- Front (POS-8017F-D2550) ........4 Figure 3 Main board Layout- Front (POS-8017F-i) ..........5 Figure 4 Main board Layout- Back (POS-8017F-i) ..........6 Figure 5 Main board Layout- Front (POS-8017F-B) ..........7 Figure 6 Main board Layout- Back (POS-8017F-B) ..........
-
Page 5: I Parts Description
Parts Description Examining Your System Exploded View Figure 1 Exploded View of the System... -
Page 6: Parts Description
Capacitive Touch Front Bezel Set (Silver) Front Bezel Resistive Touch Front Bezel Set (Black) Resistive Touch Front Bezel Set (Silver) Capacitive Touch Front Bezel Set-TYSSO LOGO (Black) Front Bezel Capacitive Touch Front Bezel Set-TYSSO LOGO (Silver) (TYSSO Logo) Resistive Touch Front Bezel Set-TYSSO LOGO (Black) -
Page 7: Main Board
Main Board ● Main Board Connection / Installation Notes The table below is the descriptions of the connectors of the main board. Each connector/slot is used for the specified part or optional peripheral. Please refer to the notes as below and examine the layouts of the main boards to locate the correct connectors so as to complete the installation. -
Page 8: Figure 2 Main Board Layout- Front (Pos-8017F-D2550)
● POS-8017F-D2550 Modular Customer Display Connector Connector (Reserved) Front View Figure 2 Main board Layout- Front (POS-8017F-D2550) -
Page 9: Figure 3 Main Board Layout- Front (Pos-8017F-I)
● POS-8017F-i Modular Customer Display Connector Connector Front View Figure 3 Main board Layout- Front (POS-8017F-i) -
Page 10: Figure 4 Main Board Layout- Back (Pos-8017F-I)
CFAST Slot Figure 4 Main board Layout- Back (POS-8017F-i) -
Page 11: Figure 5 Main Board Layout- Front (Pos-8017F-B)
● POS-8017F-B Modular Customer Display Connector Connector Front View Figure 5 Main board Layout- Front (POS-8017F-B) -
Page 12: Figure 6 Main Board Layout- Back (Pos-8017F-B)
CFAST Slot Figure 6 Main board Layout- Back (POS-8017F-B) -
Page 13: System Disassembly
System Disassembly Before You Start To prevent injuries to the LCD Panel, Carefully Place the POS on a flat, clean and stable surface (for example: a stable long table) Prepare additional cushioned material (for example: a soft, clean blanket). ... -
Page 14: B Detach The Base From Pos Unit
Detach the Base from POS Unit Tilt the POS unit horizontally. Unplug the cables and connectors from the POS unit. Unplug the cables from the bottom I/O ports Use a soft and cushioned material and place it on the table. Carefully place the POS Terminal side down on the soft and Tilt the POS unit horizontally... - Page 15 Loosen the 4 screws and detach the base holder from the POS unit. (as yellow marks indicated) Detached Base (Left) and POS Unit (Right) Remove the Securing Screws on the POS unit...
-
Page 16: C Disassemble The Pos Unit
Disassemble the POS Unit Remove the HDD Module Place the POS unit on a flat, clean and stable location with soft cushioned material. Loosen the securing screw of HDD Cover. The Securing Screw of HDD Cover Use a HEX Nut Key screw driver to remove the Spacer. -
Page 17: Remove The Back Cover Of The Pos Unit
Remove the Back Cover of the POS Unit Loosen and remove the securing screws of the Back Cover. Securing Screws of Back Cover (as yellow marks illustrated) Remove the securing screws of the Back cover Remove the Back Cover from the POS unit. -
Page 18: Remove The Metal Main Board Cover
Remove the Metal Main Board Cover Loosen and remove the securing screws of the Metal Main Board Cover.. Metal Main Board Cover (as red mark illustrated) Remove the securing screws of the Metal Main Board Cover ( Image TOP, Left and Bottom/Right): The yellow marks indicate the Securing Screws of Metal Main Board Cover... -
Page 19: Remove The Side I/O Board
Remove the Side I/O Board Unplug the I/O connector from the Main Board Side I/O Board connecting to the Main Board Loosen the securing screws to remove the Side I/O board. Loosening the Securing Screws of the Side I/O Board Side I/O Board... -
Page 20: Remove The Side I/O Bracket With Main Power Switch
Remove the Side I/O Bracket with Main Power Switch Disconnect the connector of Main Power Switch (Black/White twisted-pair cables) from the Main Board. Side I/O Bracket and Main Power Switch connecting to the Main Board Loosen the securing screws to remove the Side I/O board. -
Page 21: Disconnect The External Inverter (For Ccfl Backlight Lcd Panel Only)
Disconnect the external Inverter (for CCFL Backlight LCD Panel only The POS-8017F series POS terminal provides two types of LCD panel (LED Backlight or CCFL Backlight). For CCFL type LCD panel, there is an external Inverter installed in the POS terminal. -
Page 22: Disconnect The External Inverter (For Led Backlight Lcd Panel Only)
Disconnect the external Inverter (for LED Backlight LCD Panel only) Disconnect the cable of LCD Panel to remove the inverter (as yellow mark indicated). Inverter cable connected on the Main Board Disconnect the Inverter onboard Disconnect the LVDS Cable from the Main Board Disconnect the LVDS cable from the Main Board LVDS Cable connected on the Main Board... -
Page 23: Remove The Hdd Cable
Remove the HDD Cable Disconnect the HDD cables from the Main Board. HDD Cables (Data cable and Power cable) Remove the HDD Cables from the Main Board Disconnect the Connectors of Speakers & Power LED Indicator Disconnect the Power LED Indicator (blue-white twisted pair cable) Power LED Indicator from the Main Board. -
Page 24: Disconnect The Connector Of Touch Control Panel From Main Board
Disconnect the Connector of Touch Control Panel from Main board The Touch Control Unit is embedded in the Main Board. To disconnect the Touch Control Panel from the Main Board: Disconnect the connector of Touch Control Panel from the Main Board Disconnect the connector of Touch Control Panel from Main Board Front Bezel with Touch Control Panel... -
Page 25: Remove The Main Board
Remove the Main Board Use a HEX Nut Key screwdriver to remove the hex mounting screws on the I/O bracket Main Board of the POS Unit Remove all of the securing screws of the Main Board HEX Screws on the I/O Bracket Slightly move the Main Board forward and take the Main Board out of the POS Unit... -
Page 26: Remove The Cpu Fan & Heat Sink
m. Remove the CPU Fan & Heat Sink Disconnect the CPU Fan connector. Turn over the Main Board and remove the securing screws (or latches) to release the CPU Fan & Heat Sink CPU Fan & Heat Sink (left) and Main Board (Right) Note: The CPU Fan &... -
Page 27: Remove The Ram Module
Remove the RAM Module Release the latches on the two sides of the RAM module slot. The RAM Module would lift up to a degree (approximately 30° ). Main Board Gently slide the module out of the slot Repeat the step 1~2 to remove the other RAM Module... -
Page 28: Remove The Speakers And Lvds Cable
Remove the Speakers and LVDS Cable 1. Loosen the securing screws of the LVDS Cable speaker. Speakers, LVDS Cable of POS Unit 2. Remove the black tapes of LVDS Cable, Speakers, and LED Indicator. LVDS Cable of the LCD Panel 3. -
Page 29: Remove The I/O Bracket
Remove the I/O Bracket Loosen the 3 securing screws and then pull downward to remove the I/O Bracket Securing Screws of the I/O Bracket Loosen the Securing Screws LCD Panel Set of POS Unit (I/O Bracket is removed) -
Page 30: Remove The Lcd Panel Set
Remove the LCD Panel Set 1. Loosen the securing screws of the LCD Panel Chassis to remove the LCD Panel. Securing Screws of LCD Panel Loosen the securing screw of Chassis 2. Lift up the LCD Panel with Chassis from the Front Bezel (with Touch Panel) The LCD panel with chassis Front Bezel with Touch Panel... -
Page 31: Detach The Lcd Panel From Chassis
Detach the LCD Panel from Chassis There are two screws on both sides of the LCD Panel Set. Loosen the screws and then remove the chassis from the panel LCD Panel with Panel Chassis Detached LCD Chassis (Left) and LCD Panel(Right) Securing Screws of the Chassis (Left and Right) Note:... -
Page 32: Remove The Power Indicator From The Front Bezel Set
Remove the Power Indicator from the Front Bezel Set 1. Use a small tool to loosen the snap-in clip with care. Power LED Indicator Front Bezel Set with Touch Panel 2. Remove the Main Power LED Indicator from Front Bezel set. 3. -
Page 33: D Disassemble The Base Kit
Disassemble the Base Kit Remove the Power Adapter and Base Turn over the base and loosen the securing screws to remove the power adaptor. The Base with Adaptor Module Remove the screws from the Base. Disassemble the Base Arm from the Base Adaptor Module (Adaptor and holder) Loosen the securing screws to remove... -
Page 34: Disassemble The Base Arm Set
Disassemble the Base Arm Set Turn and remove the two swivels and then detach the Base Bracket from the Base Arm Set. Loosen the four securing screws of hinge to remove the base bracket from Base Arm Set Hinge Swivel Hinge Base Bracket Turn and remove the swivels from Base Arm Set... - Page 35 Revision History Date Version Note Description Dec. 12, 2015 Ver. 1.0 Preliminary version released...
