Tysso TP-9116 User Manual

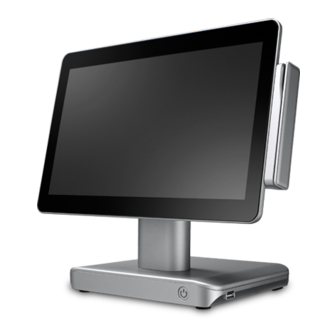

15.6-inch touch screen pos terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TP-9116
15.6-inch Touch Screen POS Terminal
User Manual
Installation Guide
Ver. 1.0, March, 2023
Copyright ©
2022
Fametech Inc. All Rights Reserved.
1
All other brands, product names, company names, trade names, trademarks and service marks
used herein are the property of their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TP-9116 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tysso TP-9116

Summary of Contents for Tysso TP-9116

  • Page 1 TP-9116 15.6-inch Touch Screen POS Terminal User Manual Installation Guide Ver. 1.0, March, 2023 Copyright © 2022 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.

  • Page 2: Table Of Contents

    Contents General Information Revision History About This Manual Disclaimer Warning Caution Warranty Limits Trade Marks and Service Marks Important Safety Information Product Overview Packing Specifications Dimension Part Description I/O Ports POS Installation Unpack Your POS Install Your POS Appendix A. Install PPD-1111 Secondary (2nd) LCD Display (Optional) B.

  • Page 3: General Information

    General Information Revision History Date Version Update Summary Remark Approved By Initial released 2022/10/17 V1.0 Ariel Chiu Robert Kuo Copyright © 2022 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.

  • Page 4: About This Manual

    About This Manual The purpose of this user’s manual is to provide general information on TYSSO’s POS Terminal and to show the users how to configure the hardware-related configurations. The information in this manual is subject to change without notice due to rapid improvement on IT technology.

  • Page 5: Caution

    Warranty does not cover any damage caused by improper use. Trade Marks and Service Marks TYSSO is a registered trademark of FAMETECH INC. Other brand and product names are trademarks and registered trademarks and service marks of their respective owners.

  • Page 6: Important Safety Information

    Important Safety Information Read following instructions carefully.  Use only parts, especially power adapter, recommended by the manufacturer;  unapproved parts may be hazardous. Before plugging the power cord into the AC inlet of the power supply unit, make  sure that the voltage applied to the power outlet is within the specified range (100V~240V).

  • Page 7: Product Overview

    Product Overview Packing POS Unit Power Adapter AC Power Cord Contents  POS Unit  Power Adapter  AC Power Cord  RJ-45 to RS-232-DB9 Male Cable Optional Accessories*   Magnetic Stripe Card Reader (MSR) Secondary LCD Display  Modular Customer Display *For more information relating to the other optional peripherals, please contact the local representatives or technical support personnel of the providers.

  • Page 8: Specifications

     Specifications Model Name TP-9116-RK3399 Rockchip RK3399, Dual-core Cortex A72 up to 1.8GHz + Quad-core Cortex A53 up Processor to 1.4GHz System Memory Onboard 4GB LPDDR4 1866MHz Onboard 32GB eMMC 5.1 (Max. 64GB) Storage 1 x Micro SD Card Slot (up to 128GB) LCD Panel - I 15.6-inch TFT LCD, 1920 (W) RGB x 1080 (H)

  • Page 9: Dimension

     Dimensions Left View Front View Right View POS with 2nd Display POS with VFD Rear View *Tilt Adjustment: 0° ~ 90° Copyright © 2022 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.

  • Page 10: Bottom View

    Bottom View Note:  The Magnetic Stripe Card Reader (MSR) and Customer Display/2nd Display are optional parts and may not be included in the package. Please purchase the optional parts separately. Copyright © 2022 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.

  • Page 11: Part Description

    Part Description  Front View LCD Touch Screen MSR Module (Optional) Base Power Button Customer Display (Optional)  Rear View MSR Module (Optional) Base I/O Ports Copyright © 2022 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.
  • Page 12  Side View Customer Display (Optional) MSR Module (Optional) Left View (With Customer Display) Left View Customer Display (Optional) MSR Module (Optional) Side I/O Port (USB) Right View (With Customer Display) Right View Copyright © 2022 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.

  • Page 13: I/O Ports

     Bottom View (Base)  Rear View (Base)  I/O Ports USBA 3.0 x 3 LINE-OUT TP-9116: MIC-IN HDMI 12V DC RJ11 RJ-45 Micro SD COM2 COM1 (CR) (LAN) Main USB-C 3.0 Power Input Copyright © 2022 Fametech Inc. All Rights Reserved.
  • Page 14 USB-A 2.0 x 1 Base Side I/O Ports  I/O Ports Descriptions: I/O Interface 3 x USB-A 3.0 and 1 x USB-C 3.0 (Bottom) 1 x USB 2.0 (Base Side) 1 x RJ45 10/100/1000Mbps Giga Ethernet 2 x COM (RJ45), w/ RI/5V/12V by jump HDMI 1 x HDMI Port Audio...

  • Page 15: Pos Installation

    POS Installation  Unpack Your POS The contents may vary with different options. If there’s any physical damage or missing parts, please contact your supplier immediately. Please keep all packing materials in case you need to ship back the device for service. ...

  • Page 16: Install Your Pos

     Install Your POS Power Adapter POS Terminal Electrical Outlet Power Cord Place the POS terminal on the proper location. Connect the power connector to the POS unit (Main Power Input). Connect the optional peripherals to the POS (for example: Receipt Printer, Barcode Scanner, etc.) Connect the AC power cord to the power adapter, and plug the AC power cord to the power source (for example: electrical outlet).

  • Page 17: Appendix

    Appendix A. Install PPD-1111 Secondary (2nd) LCD Display (Optional) a. Remove the Protective Cover of the c. Adjust the angle of the 2nd LCD Display POS terminal. horizontally. d. Connect the connector of the 2nd LCD Display to the POS terminal. Protective Cover LCD Display Securing...
  • Page 18 PPD-1111 Rear View PPD-1111 Front View Note: The 2nd LCD Display is an Optional Accessory and is not included in the standard package. Please contact your local representative for further information. Copyright © 2022 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used herein are the property of their respective owners.

  • Page 19: Install The Modular Customer Display (Optional)

    B. Install the Modular Customer Display (Optional) Remove the Top Cover of the Customer Install the Modular Customer Display to Display. the POS terminal. Modular Customer Display Securing Screw Tapped Holes of the POS Terminal Tighten the securing screws and Top Cover re-install the Top Cover back to the Customer Display.
  • Page 20 TP-9116 w/ Modular Customer Display Note: The Modular Customer Display is an Optional Accessory and is not included in the standard package. Please contact your local representative for further information Copyright © 2022 Fametech Inc. All Rights Reserved. All other brands, product names, company names, trade names, trademarks and service marks used...

  • Page 21: Install The Msr Module (Optional)

    C. Install the MSR Module (Optional) To Install the MSR Module: Note: a. Remove the Protective Cover on the Connect the connector of MSR to the rear-left side of the POS terminal. connector of POS terminal. c. Secure the securing screws of MSR. d.
