Danfoss Icon2 Service Manual page 29

Service Manual Danfoss Icon2™
5a
4
1
5b
1

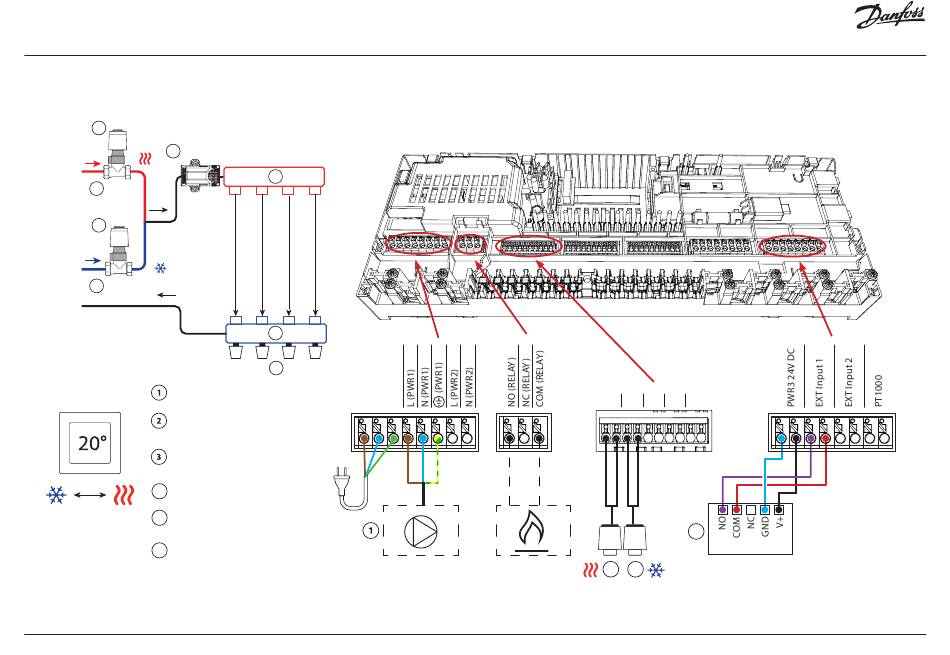

Reference
2-way valve RA-C
Thermostat
1 set Danfoss Manifold
(types FHF or BasicPlus or SSM)
Thermal actuators, 230V / 24V* TWA-A
* Requires TWA conversion module
4 Dew Point Sensor CF-DS
5a Thermal actuators, 230V / 24V* TWA-A
* Requires TWA conversion module
5b Thermal actuators, 230V / 24V* TWA-A
* Requires TWA conversion module
AB432956914381en-010101
2
2
M M M M
3
Mains
Power
1 2 3 4 5
4
Dew Point Sensor
5a 5b
© Copyright Danfoss Climate Solutions | 2023.01 | 29
App 7
