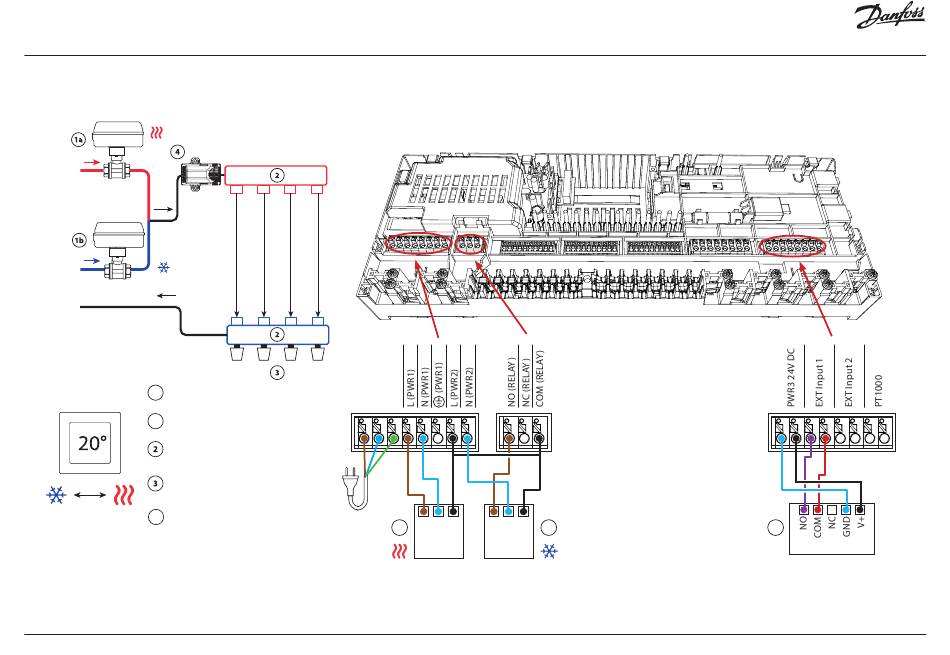

Service Manual Danfoss Icon2™
Reference
AMZ 112 230V
1a
Thermostat
AMZ 112 230V
1b
1 set Danfoss Manifold
(types FHF or BasicPlus or SSM)
Thermal actuators, 230V / 24V* TWA-A
* Requires TWA conversion module
4
Dew Point Sensor CF-DS
AB432956914381en-010101
M
M
M
M
Mains
Power
1a
3 1 2
3 1 2
1b
AMZ 112
AMZ 112
4
Dew Point Sensor
© Copyright Danfoss Climate Solutions | 2023.01 | 33
