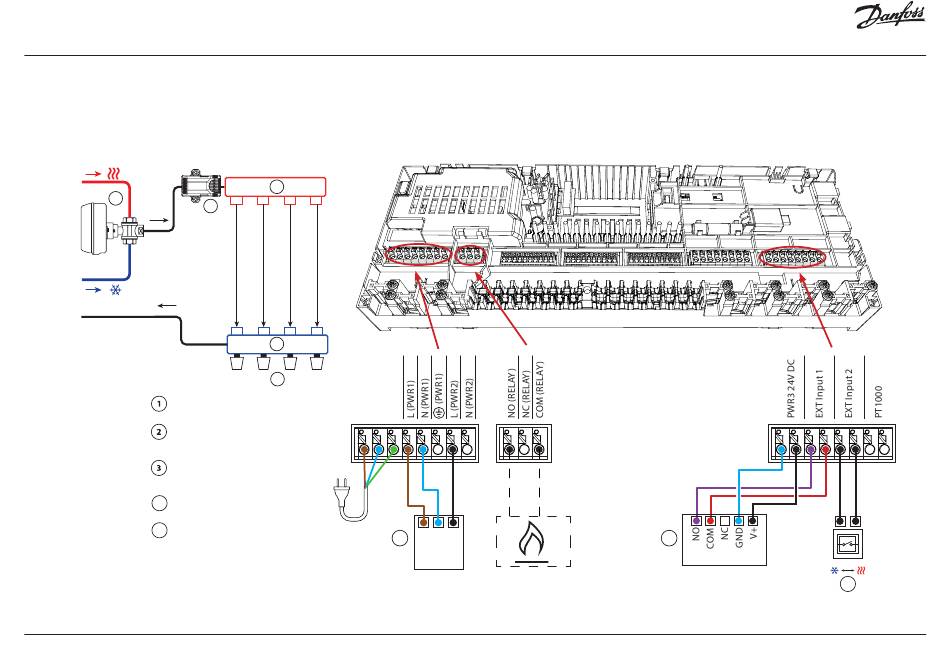

Danfoss Icon2 Service Manual page 65

Service Manual Danfoss Icon2™
1
AMZ 113 230V
1 set Danfoss Manifold
(types FHF or BasicPlus or SSM)
Thermal actuators, 230V / 24V* TWA-A
* Requires TWA conversion module
4 Dew Point Sensor CF-DS
5 External switch for manual changeover
between heating and cooling
AB432956914381en-010101
2
4
2
M M M M
3
Mains
Power
3 1 2
1
AMZ 113
4
Dew Point Sensor
5
© Copyright Danfoss Climate Solutions | 2023.01 | 65
App 16
