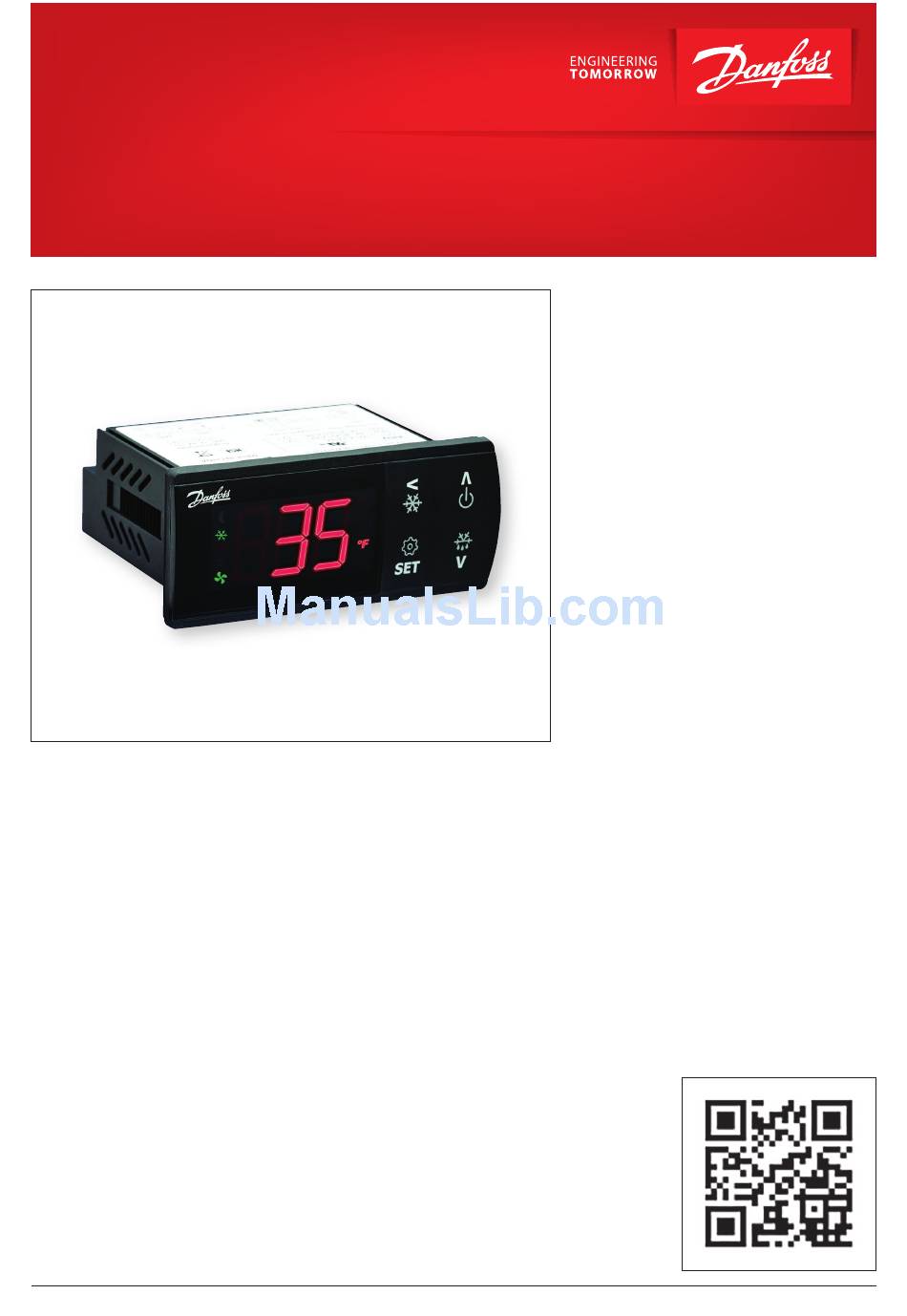

Quick Start Guide

ERC 213

Watch a video guide of the quick set-up by visiting

http://bit.ly/ERC213 or scanning this code:

Control Overview

The ERC 213 is designed to be an easy, universal

replacement control. We encourage users to

employ one of five predefined applications that

meet the needs of most systems. If users need

to modify specific parameters, it should be done

after installing the predefined application that

most closely meets system needs.

For more information, including detailed

instructions, error codes, parameters, and more,

visit www.danfoss.com/erc or download the

Koolcode app from iTunes or Google Play.

For a video guide of the quick set-up,

visit http://bit.ly/ERC213 or use the QR code

located at the bottom of this page.

DKRCE.PD.RL0.A1.02 | 520H12295 | 1
