Operating Guide | Voltage Measurement Option OC7V0
Table 5: Connector Types for Option Extender OC7F2
Terminal
X63 (Phoenix contact 1177657)
X82 (Firecomms Ltd type FB2M5LVR(-P))
X83 (Firecomms Ltd type FB2M5LVR(-P))
Table 6: Terminal Pin Assignments of Option Extender OC7F2
Logical terminal
X63 supply voltage input terminal
61
62
X82 optic fiber connection 1
X83 optic fiber connection 1

Installation Example Diagrams

5.8

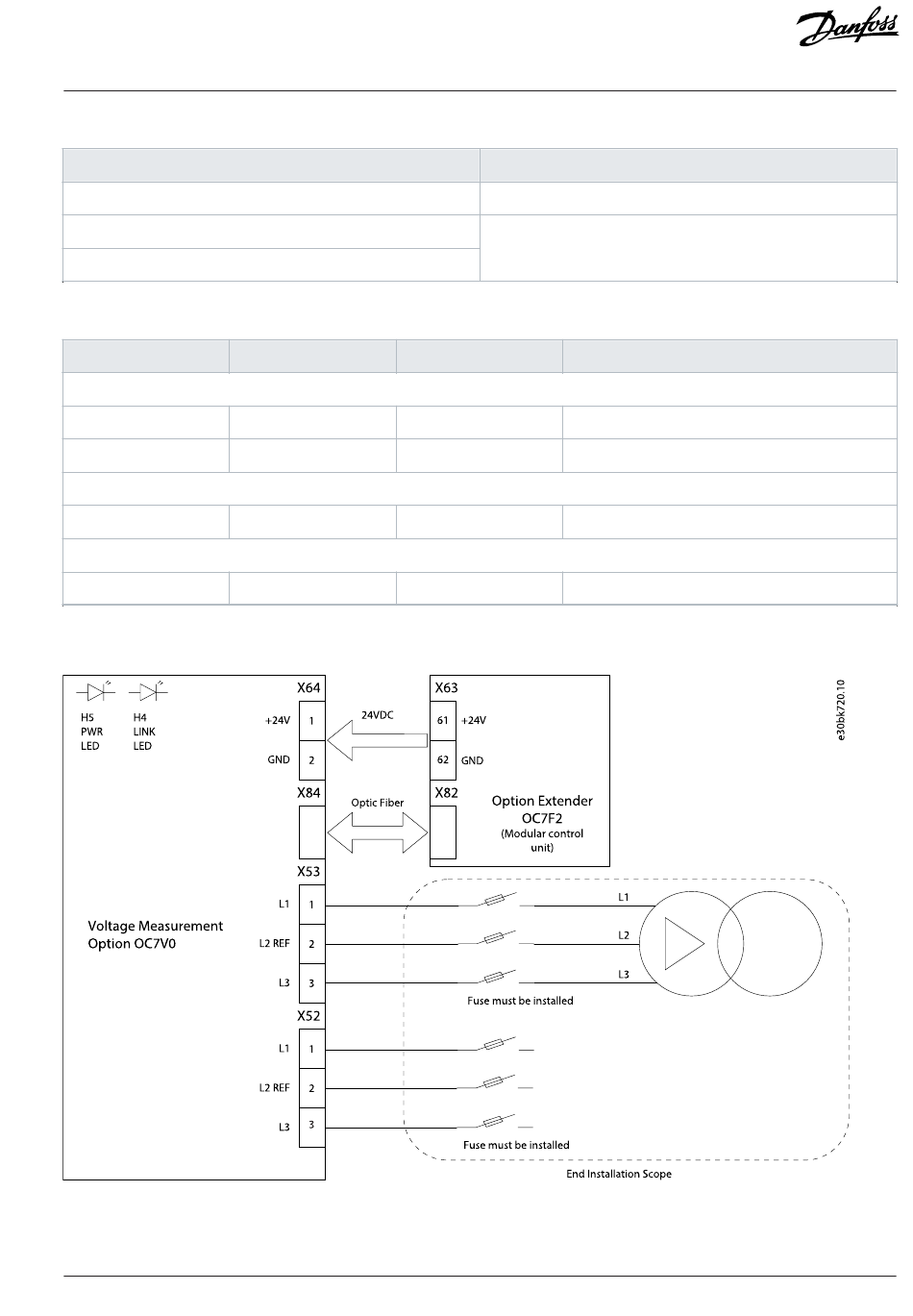

Figure 9: Delta Voltage Measurement
Danfoss A/S © 2024.01
Terminal Signal
1 +24 V
2 GND
no pins
no pins
Description
Plug-in type
Plug-in type for the fiber optic cable
Technical information
+24 V DC output
Maximum optic fiber length 20 m (65 ft)
Maximum optic fiber length 20 m (65 ft)
AQ476649821259en-000101 / 136R0332 |
