Operating Guide | Voltage Measurement Option OC7V0
For best performance, install the Option Extender OC7F2 next to the control unit in 1 of the first 2 slots.
1.
Remove the screw that is pre-attached to the fixing point at the top of the mounting plate and keep it.
2.
Slide the lower edge of the board to the mounting plate fixing point.

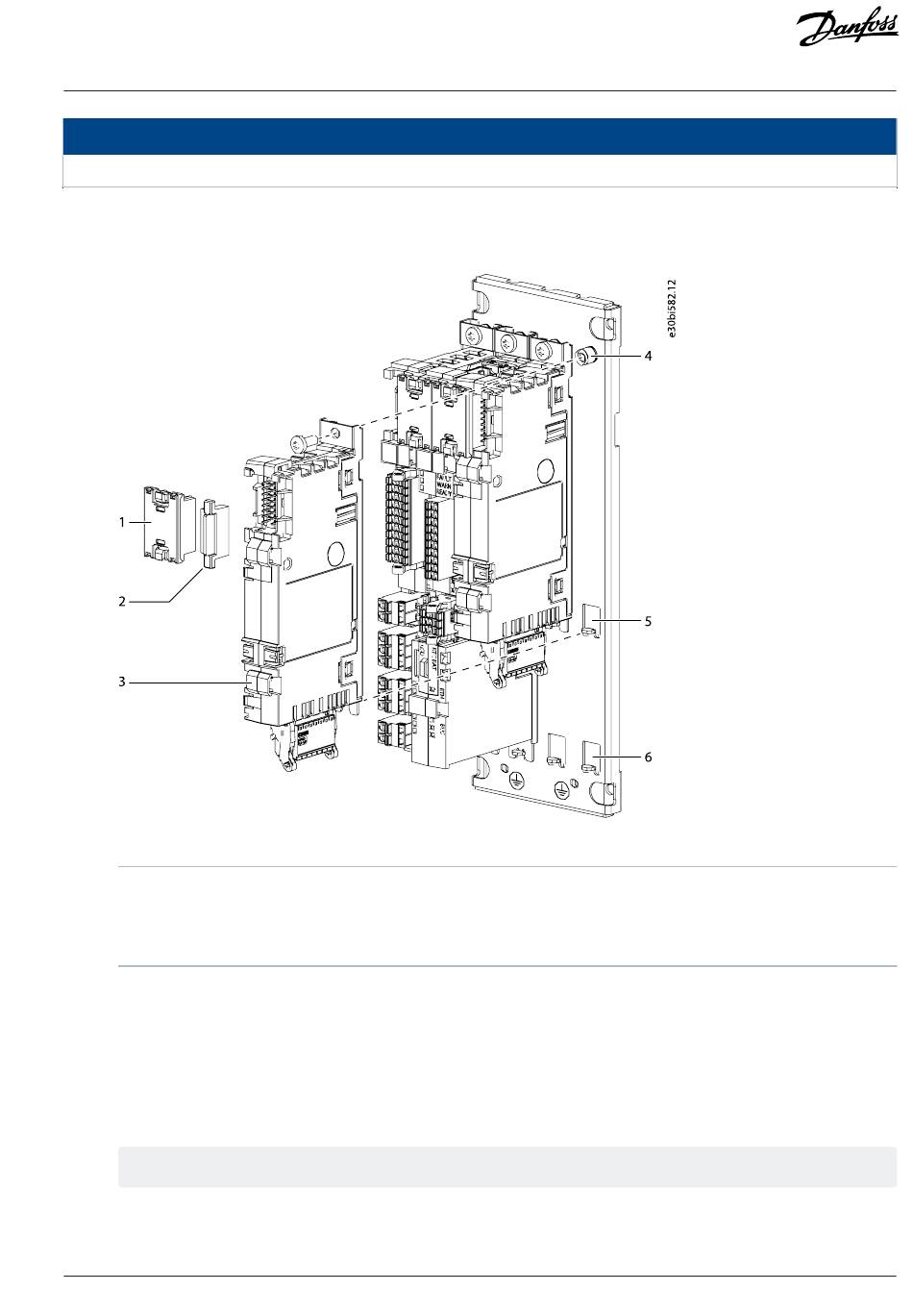

Figure 4: Installing a Board to the Modular Control Unit Mounting Plate
1
Option connector
3
Option board
5
Fixing point at the middle
3.
Use the screw to attach the board to the fixing point at the top.
4.
Attach an option connector to the newly installed board and the board next to it.
5.
Attach option terminal covers to the empty terminals.

Installing the Voltage Measurement Option OC7V0

5.5
1.
Mount the DIN rail close to the location of the voltage to be measured.
The DIN rail is included in the delivery of the Voltage Measurement Option OC7V0.
2.
Mount the voltage measurement option on the DIN rail so that the terminals are in the bottom.
a.
Lower the voltage measurement option on the DIN rail from above.
Danfoss A/S © 2024.01
NOTICE
2
Option terminal cover
4
Fixing point at the top
6
Fixing point at the bottom
