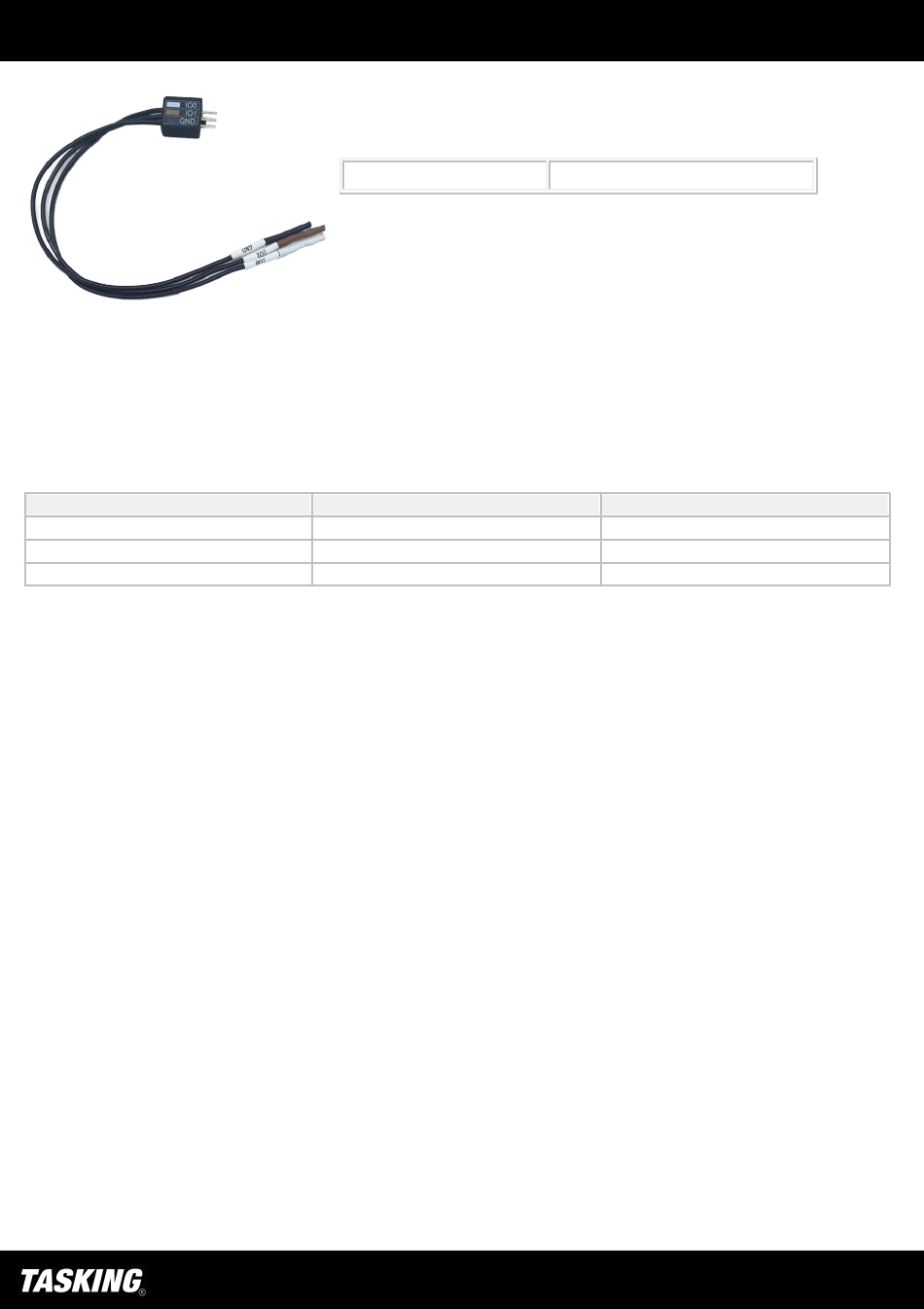

mDIO Cable

mDIO Cable is used to connect the Active Probe mDIO port with the signals around the debugged
microcontroller, which can then be either read or controlled by the debugger. For example, the de-
bugger can periodically service an external watchdog through the mDIO output or just read and re-
cord an external signal through the mDIO input. It must be ordered separately. Length of the cable
is 20 cm.
The following pinout is valid on the Active Probe side:
Number
Pin1
Pin2
Pin3
Ordering code
Name
IOØ
IO1
GND
mDIO Cable pinout
BB-AP-MDIO-20
Color
White
Brown
Black
www.tasking.com
