Chapter 2 Jumper Setting
CON2-A:
Pin. Def.
1 VCC
2 USB_4N
3 USB_4P
4 GND
CON2-B:
9 TX0P_F
10 TX0N_F
11 TX1P_F
12 TX2P_F
13 TX2N_F
14 TX1N_F
15 TX3P_F
16 TX3N_F
17 ACT_F
18 LINK_F
U42: Audio Interface (Double layer Phone jack)
?
Def.
GreenUpper Line-Out
Copyright © 2006 NEXCOM International Co., LTD. All rights reserved Copyright © 2006 NEXCOM International Co., LTD. All rights reserved
Pin. Def.
5 VCC
6 USB_5N
7 USB_5P
8 GND
19 VCC3
20 LINK_F
21 GND
22 GND
23 GND
24 GND
25 GND
26 GND
27 GND
28 GND
Def.
Pink Lower MIC-In

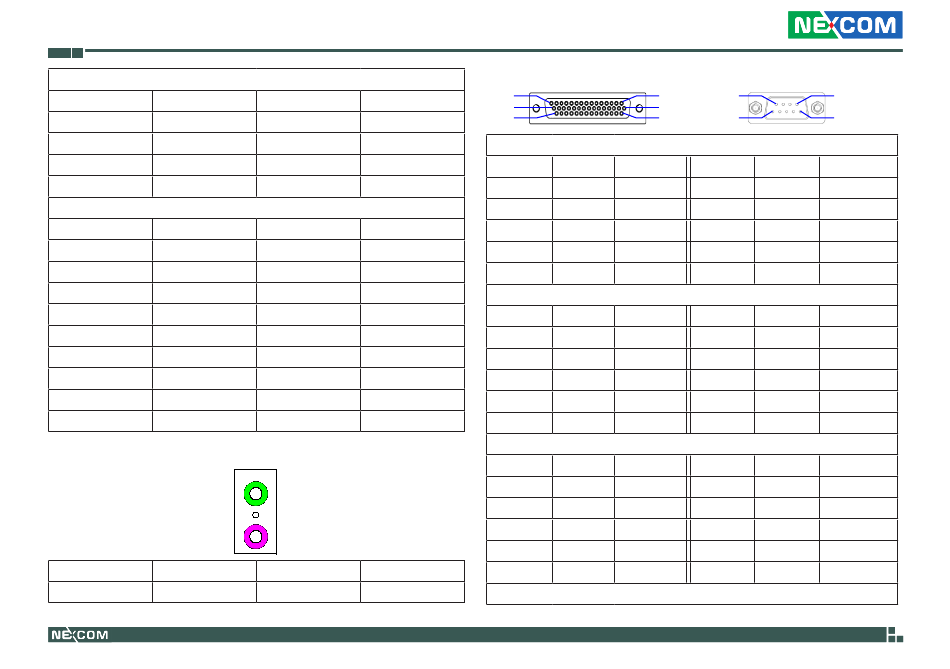

? J12: Serial Interface ( COM1~COM4, 44-pin D-SUB)
15
30
44
COM1 (RS-232) labelled "A" on DB9 cable connector
DB44 Pin# DB9 Pin# Def.
1 1 DCD1
3 3 TXD1
5 5 GND
7 7 RTS1
9 9 RI1
COM2 (RS-232) labelled "B" on DB9 cable connector
DB44 Pin#. DB9 Pin# Def.
11 1 DCD2
13 3 TXD2
15 5 GND
17 7 RTS2
19 9 RI2
COM3 (RS-232) labelled "C" on DB9 cable connector
DB44 Pin#. DB9 Pin# Def.
21 1 DCD3
23 3 TXD3
25 5 GND
27 7 RTS3
29 9 RI3
COM4 (RS-232) labelled "D" on DB9 cable connector
30
1
9 6
16
31 5 1
DB44 Pin#. DB9 Pin# Def.
2 2 RXD1
4 4 DTR1
6 6 DSR1
8 8 CTS1
10 GND
DB44 Pin#. DB9 Pin# Def.
12 2 RXD2
14 4 DTR2
16 6 DSR2
18 8 CTS2
20 GND
DB44 Pin#. DB9 Pin# Def.
22 2 RXD3
24 4 DTR3
26 6 DSR3
28 8 CTS3
30 GND
