Chapter 2 Jumper Setting

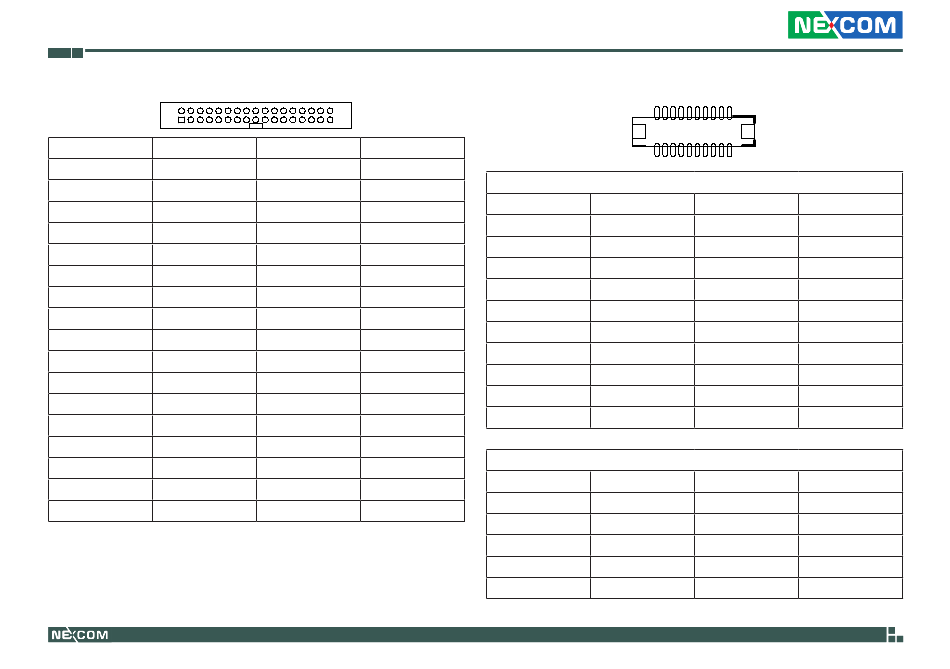

CN1: DVI Interface (2x17 pin box header, 2.0mm)
?
2
1
Pin. Def.
1 CAS_GND
2 CAS_GND
3 DVI_DATA2#
4 DVI_DATA2
5 GND
6 NC
7 NC
8 DDC_CLK
9 DDC_DATA
10 NC
11 DVI_DATA1#
12 DVI_DATA1
13 CAS_GND
14 NC
15 NC
16 DVI_VCC
17 CAS_GND
Copyright © 2006 NEXCOM International Co., LTD. All rights reserved Copyright © 2006 NEXCOM International Co., LTD. All rights reserved
34
17
Pin. Def.
18 HPDET
19 DVI_DATA0#
20 DVI_DATA0
21 CAS_GND
22 NC
23 NC
24 GND
25 TLC
26 TLC#
27 GND
28 GND
29 NC
30 NC
31 NC
32 CAS_GND
33 CAS_GND
34 NC
? CN2/CN3: LVDS Connector (2x10 pin DF13)
20
19
CN2
Pin. Def.
1 DDCCLK
2 DDC_DATA
3 VDD
4 LA_DATAP0
5 NC
6 LA_DATAN0
7 NC
8 VDD
9 GND
10 LA_DATAP1
CN3
Pin. Def.
1 DDCCLK
2 DDC_DATA
3 VDD
4 LB_DATAP0
5 NC
23 23
2
1
Pin. Def.
11 LA_CLK_P
12 LA_DATAN1
13 LA_CLK_N
14 GND
15 GND
16 BACKLIGNT
17 LA_DATAP2
18 BACKLIGNT
19 LA_DATAN2
20 GND
Pin. Def.
11 LB_CLK_P
12 LB_DATAN1
13 LB_CLK_N
14 GND
15 GND
