Chapter 1 General Information

1.1 Product Overview

Featuring Intel 945GME & ICH7 chipsets, the NISE 3110 fan-less box computer
supports Intel's Core 2 Duo /Celeron M processor with 533/667 MHz FSB
and DDR2 667/533 memory. The rugged NISE 3110 fan-less box computer is
designed for space-critical application requires extreme reliability, low-power
consumption and versatile I/O configuration. For added flexibility, the NISE 3110
also boasts three RS232 ports, one RS232/422/485 port and one PCI expansion
slot.
For data storage, the NISE 3110 provides one CompactFlash socket and one 2.5"
HDD drive bay. The System supports ATX mode power feature and can accept a
wide range of power supplies from 12 V DC to 30 V DC.
Housed in a compact 195 mm x 268 mm x 80 mm heavy-duty aluminum chas-
sis, the NISE 3110 is designed for reliable, maintenance-free industrial comput-
ing. The NISE 3110 fan-less box computer offers a cost-effective solution for a
multitude of mission-critical embedded computing applications in automation,
machine control, and POS systems.
Support Intel® Core 2 Duo / Core Duo/ Celeron® M processors
?
Intel 945GME Chipsets
? ®
? Dual 1000/100/10Mbps LAN ports
6 x USB2.0/ VGA / DVI/ 4 x SIO
?
One PCI Expansion Slot
?
Copyright © 2006 NEXCOM International Co., LTD. All rights reserved Copyright © 2006 NEXCOM International Co., LTD. All rights reserved

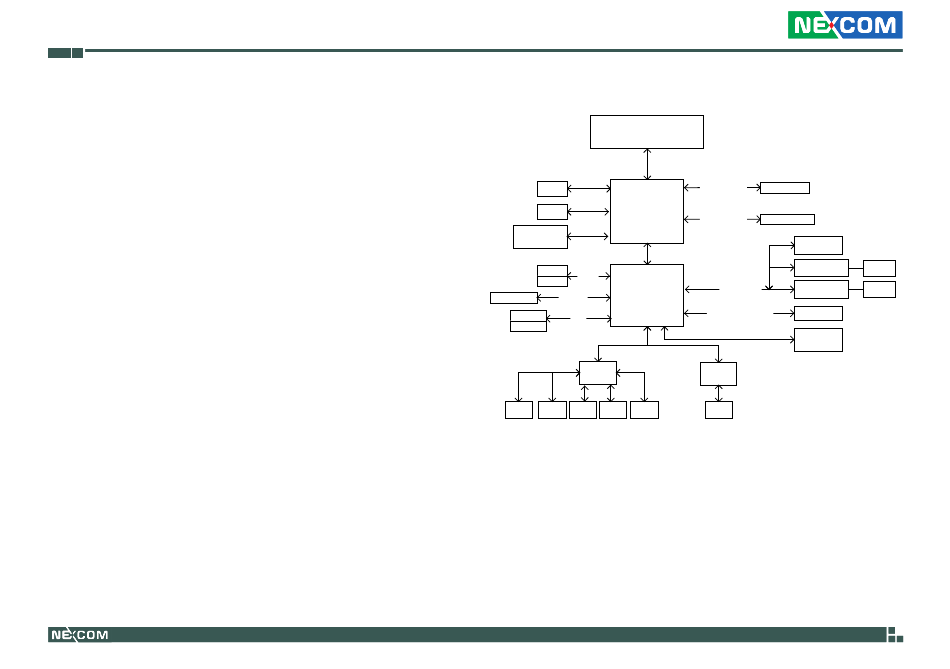

1.2 Block Diagram

Intel® Core 2 Duo,
Core Duo,Celeron M
533 / 667
MHz FSB
LVDS
Intel®
VGA
945GME
DVI Chrontel
4 Lanes
0/1
Front Panel
USB2.0
2,3/4/5
Internal Conn.
Intel®
UltraDMA
CF & IDE
ICH7-M
33/66/100
SATA 1
SATA
SATA 2
LPC BUS
SIO1
KB/MS IrDA LPT GPIO
COM1,2
Figure 1.1 : Block Diagram of EBC 576
11 11
DDR2 Slot
DDR2 Channel A
DDR2 DIMM Modules
DDR2 533 / 667 MHz
DDR2 Slot
DDR2 Channel B
1 x PCIe
2GB/s Interface
Marvell
88E8053 GbE
Marvell
PCIex1 Port (1)
88E8053 GbE
PCI-Slot
PCI 32 Bit / 33 MHz Bus
ALC655
SIO2
COM3,4
NISE3110 User Manual
