- Page 1 User Manual D053-U PRESSURE MONITOR WITH HIGH / LOW PRESSURE ALARMS Signal input: 0 - 10 V sensor signal Signal output: one pressure alarm Options: backlight D-Series - Panel mounted indicators More info: www.fluidwell.com/dseries...
-
Page 2: Table Of Contents
User Manual D053-U TABLE OF CONTENTS ABOUT THIS MANUAL......................How to use this manual ....................Use of pictograms ......................Warranty and technical support ..................Model Reference ......................SAFETY ............................ Personal safety ....................... End-user responsibilities....................Potential equipment damage ..................Disposal of electronic waste ................... INTRODUCTION........................ - Page 3 D053-U User Manual MAINTENANCE........................25 General directions......................25 Instructions for repair ...................... 25 Battery replacement......................26 7.3.1 Safety instructions ......................26 7.3.2 Battery replacement procedure ..................26 7.3.3 Disposal of batteries ....................... 27 APPENDIX A - TECHNICAL SPECIFICATION ................28 General ...........................
-
Page 4: About This Manual
● incorrect functioning of the unit or connected instruments. A note informs you of important information. WARRANTY AND TECHNICAL SUPPORT For warranty and technical support on your Fluidwell products, visit our internet site www.fluidwell.com or contact us at support@fluidwell.com. MODEL REFERENCE Hardware version: 03.04.xx... -
Page 5: Safety
D053-U User Manual SAFETY PERSONAL SAFETY ● Risk of electric shock: Only open the unit if all leads are free of potential electrical energy. ● Immediately inform the person responsible for the installation if you disagree with the safety precautions or if you detect errors or danger. END-USER RESPONSIBILITIES ●... -
Page 6: Introduction

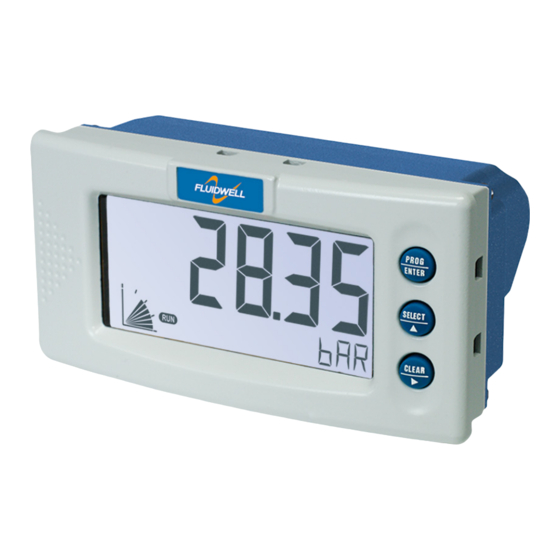

User Manual D053-U INTRODUCTION SYSTEM DESCRIPTION The pressure monitor model D053-U is a microprocessor-driven instrument designed to show the actual pressure, as well as to generate high and/or low pressure alarms. Fig. 1: The D053 This manual describes the daily use, configuration and installation of the D053-U with analog 0-10 V input from a pressure sensor and its available options. -
Page 7: Installation Example
D053-U User Manual Input ● One pressure sensor with a passive or active 0 -10 V analog signal output ● Several options are available for powering the sensor. Output ● An external device such as an alarm or a switch can be connected to the D053-U. ●... -
Page 8: Operation
User Manual D053-U OPERATION This unit may only be operated by authorized and trained personnel who have read and understood this manual, particularly Section 2: Safety [»5] INTRODUCTION This chapter describes the daily use and operation of the D053-U. For this, the D-Series is equipped with a control panel that provides the operator with various functions, information and operating modes. -
Page 9: Backlight (Type Zb)
D053-U User Manual Normally, the display is updated depending on the refresh rate selected in the configuration settings. By pressing any key, the display switches to refreshing the information 8 times per second. After 30 seconds of key inactivity, the display returns to the configured refresh rate. Fig. 4: Example of display information during process 4.2.2... -
Page 10: Range Error
User Manual D053-U 4.5.2 RANGE ERROR When the input value is more than 5% outside the calibrated measurement range, ALARM will be displayed, together with the calibrated value. After pressing the ▲ key, “LO RANGE” or “HI RANGE” will be displayed, indicating the reason for the alarm. 4.5.3 LOW BATTERY When the battery voltage drops, it must be replaced. -
Page 11: Configuration
D053-U User Manual CONFIGURATION INTRODUCTION This chapter describes how technicians can use configuration settings to configure the D-Series for optimal functionality. Configuration of the D053-U can be done in SETUP mode, using the front keys. CONFIGURING USING SETUP MODE For an overview of Operating modes, see Section 4.1.1: Operating modes [»8] Changing settings may influence current operation In SETUP mode the unit remains fully operational. -
Page 12: Changing Configuration Settings
User Manual D053-U 5.2.3 CHANGING CONFIGURATION SETTINGS A menu item either contains a value (a number with optionally a decimal point and sign, e.g. -123.45) or a selection list (e.g. L – m - USGAL). After a menu item is selected in the SETUP menu, a new value can be programmed by performing the following steps. -
Page 13: Setup Menu Overview
D053-U User Manual SETUP MENU OVERVIEW PRESSURE DEFAULT UNIT mbar - bar - PSI - mPa - Pa - no unit DECIMALS 0 - 5 0.001 - 999,999 SPAN OFFSET -999,999 to +999,999 ALARM DEFAULT PRESSURE ZERO default - no relays - ignore default ALARM LOW 0000.000 to 9,999,999... -
Page 14: Menu 2: Alarm
User Manual D053-U PRESSURE UNIT Determines the measurement unit for the displayed pressure. The following can be selected: mbar - bar - PSI - mPa - Pa - no unit Changing the measurement unit will have consequences for operator and setup values. Please note that the Span should be checked also. Recalculation is not done automatically. -
Page 15: Menu 4: Power Management
D053-U User Manual DISPLAY BACKLIGHT ALARM If the D053-U generates an alarm, the backlight can be set to change to red. The following settings are available: OFF: during an alarm the color is white. ● ON: during an alarm the color is red. ●... -
Page 16: Menu 6: Others
User Manual D053-U SENSOR CUT-OFF To ignore small signals in sensor output, a low level cut-off can be set as percentage of the full range of 10 V, and can be set from 0.0 to 99.9 %. If the input is below cut-off, the signal will be ignored. An example follows. -
Page 17: Installation
D053-U User Manual INSTALLATION ● Mounting, electrical installation, start-up and maintenance of this instrument may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions. ●... -
Page 18: Handling The D053-U Enclosure
User Manual D053-U HANDLING THE D053-U ENCLOSURE 6.2.1 IDENTIFICATION Identification label To identify your D053-U device, all enclosures have a weatherproof identification label placed at the backside of the product. Fig. 8: Example of D0-Series identification label Serial number and year of production The serial number can be reviewed on the identification label, the installation label, or in . -
Page 19: Mounting The D-Series
D053-U User Manual 6.3.2 MOUNTING THE D-SERIES The D-Series unit is mounted by placing it in an opening in a panel or cabinet (see Section 6.3.1: ) and securing it. To ensure proper IP or TYPE rating, the panel should Mechanical dimensions [»18] be rigid with a flat surface. -
Page 20: Electrical Safety
User Manual D053-U 6.4.1 ELECTRICAL SAFETY First consult the table with limiting environmental conditions and safety parameters in Section 6.1: Installation / environmental conditions [»17] General remarks ● Please note that the D053-U that came with a power module type PM will carry 110V-230V AC when installed. -
Page 21: Field Wiring Connections
D053-U User Manual 6.4.3 FIELD WIRING CONNECTIONS ● Do ground the aluminum / stainless steel enclosure properly with a PE wire as indicated to the Protective Earth terminal. It is the responsibility of the installer to install, connect and test the Protective Earth connections in accordance with the local and (inter)national Rules and Regulations. -
Page 22: Terminal Connectors
User Manual D053-U Jumper setting External sensor supply voltage 8.2 V DC 12 V DC 24 V DC TERMINAL CONNECTORS Take notice of all safety and precautionary measures indicated in Section 6.4: Electrical and review installation [»19] Section 6.4.3: Field wiring connections [»21] Section 6.4.4: Power before applying any field or power supply wiring. -
Page 23: Terminals R1-R2 (R3): Output
D053-U User Manual To power the D053-U a 24 V AC (Type PD) or 115-230 V AC (mains) (Type PM) power supply can be applied. P0 is connected to common ground, connect line (phase) to P1, and neutral (0) to P2. P2 N Type PD: 24 V AC Type... -
Page 24: Terminals S1-S2 (S4): Pressure Sensor Input
User Manual D053-U R2 and R3: Max 2 A @ 250 V AC / 30 V DC R3 R R2 R Device Device R1 Common Fig. 17: Terminals R1-R3: Mechanical relay output (type OR) 6.5.3 TERMINALS S1-S2 (S4): PRESSURE SENSOR INPUT The D053-U requires a 0 –... -
Page 25: Maintenance
D053-U User Manual MAINTENANCE GENERAL DIRECTIONS ● Mounting, electrical installation, start-up and maintenance of this instrument may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions. ●... -
Page 26: Battery Replacement
à plus de 100°C (212°F) ou exposer à l'eau. Primary Lithium Battery - Only replace with Fluidwell recommended battery pack! Pile primaire au lithium - Remplacer uniquement par une pile recommandé par Fluidwell! Fig. 20: Marking battery type PB: Safe area StdLiBAT-021 (SPB02) 7.3.2... -
Page 27: Disposal Of Batteries
D053-U User Manual 4. Place the back side cover back on the product and secure it with the four screws. 5. Check that the battery is installed properly by checking that the screen has come on. 6. Reconnect the unplugged field connectors. 7. -
Page 28: Appendix A - Technical Specification
User Manual D053-U APPENDIX A - TECHNICAL SPECIFICATION GENERAL DISPLAY Type High intensity reflective numeric and alphanumeric LCD, UV-resistant Digits 7 with height 17mm (0.67”) and 11 with height 8mm (0.31”). Various symbols and measuring units. Dimensions 90 x 40 mm (3.5” x 1.6”) Refresh rate User definable: fast - 1 sec - 3 sec - 15 sec - 30 sec - off Type ZB (option) -
Page 29: Output
D053-U User Manual OUTPUT ALARM OUTPUT Function High, low or high and low Pressure alarm. Frequency Max 500 Hz. Type OR: max 5 Hz Type OT One passive transistor output (not isolated). Max load 50 V @ 300 mA Type OH Simultaneously switching active and passive transistor outputs. -
Page 30: Appendix B - Troubleshooting
User Manual D053-U APPENDIX B - TROUBLESHOOTING Table 1 lists and describes how to troubleshoot problems that can occur when installing or operating the D053-U. Table 2 lists internal alarm codes and conditions signaled by a blinking ALARM flag on the display ). -
Page 31: Appendix C - Legal Information
EU De cla tio n of Conformi Fluidwell 0 D ‒Series indicators he , February 2022 We, Fluidwell BV, declare under our s e ol respons ibility that the 0 D ‒Series indicators are de igne d and will operate conform the following applicable European... - Page 32 User Manual D053-U LIST OF CONFIGURATION SETTINGS SETTING DEFAULT DATE: DATE: PRESSURE UNIT DECIMALS SPAN OFFSET ALARM PRESSURE ZERO default ALARM LOW ALARM HIGH DELAY ALARM LOW DELAY ALARM HIGH ALARM OUTPUT both DISPLAY SET ALARM operator BACKLIGHT BACKLIGHT ALARM BACKLIGHT BRIGHTNESS POWER MANAGEMENT...
- Page 33 D053-U User Manual NOTES FW_D053-U_M_v0501-01_EN Page 33...
- Page 34 User Manual D053-U Page 34 FW_D053-U_M_v0501-01_EN...
- Page 35 D053-U User Manual FW_D053-U_M_v0501-01_EN Page 35...
- Page 36 Fluidwell bv P.O. Box 6 Voltaweg 23 Website: www.fluidwell.com 5460 AA Veghel 5466 AZ Veghel Find your nearest representative: www.fluidwell.com/representatives the Netherlands the Netherlands © Copyright 2024 - FW_D053-U_M_v0501-01_EN...
