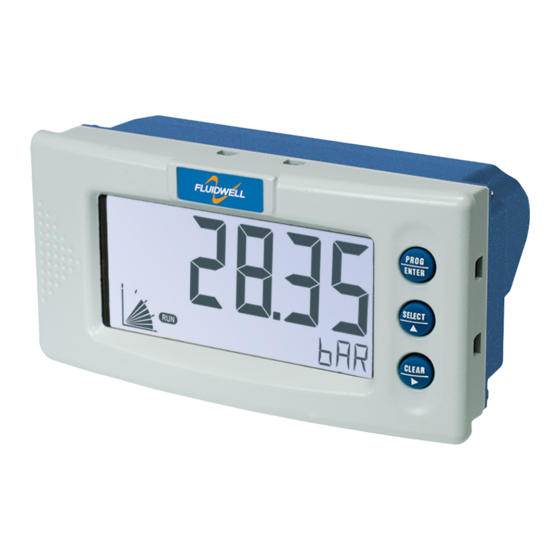

- Page 1 D050-A RESSURE NDICATOR Signal input sensor: (0)4-20mA Fluidwell D-Series Indicators - The better alternative for DIN panel mount indicators...
- Page 2 User manual D050-A Pressure Indicator Health and Safety Information Caution: The D050-A must only be installed, operated and maintained by competent personnel that received proper training on regular basis, including instructions on the various types of protection and installation practices, relevant rules and regulations, and the general principles of area classification.
-
Page 3: Read Me First
This manual is intended for all personnel involved in the operation, configuration, installation and troubleshooting of the D050-A Pressure Indicator. Information in this manual is subject to change without prior notice. Fluidwell bv is not responsible for mistakes in this material or for incidental damage caused as a direct or indirect result of the delivery, performance or use of this material. -
Page 4: Table Of Contents
User manual D050-A Pressure Indicator How To Read This Manual Caution: • Before operating, configuring, opening or installing the D050-A you are expected to have read and understood all relevant sections in this manual. • Before operation the D050-A MUST be installed in compliance with the installation instructions as described in "Installation Instructions"... - Page 5 Contents Read Me First! About This Guide ............iii Prerequisites.
- Page 6 User manual D050-A Pressure Indicator 1 – C ONTENTS 4 Configuring the D050-A General ..............13 The D050-A Display Functions .
-
Page 7: Chapter 1: "Introduction
Introduction CHAPTER System Description of the D050-A Functions and Features The Pressure Indicator model D050-A is a microprocessor controlled device to display pressure. The D050-A has been designed with a focus on: • Ultra-low power consumption, to allow for battery operation of up to five years. •... -
Page 8: The D050-A Display Functions
User manual D050-A Pressure Indicator 1 – I NTRODUCTION The D050-A Display Functions The D050-A has a very large transflective LCD with a number of symbols and digits to display measuring units, status information, trend indication and keyword messages. Figure 2: The display functions of the D050-A D050-A status indicators Numerical 26mm (1”) large display readout... -
Page 9: Available D050-A Configurations
User manual D050-A Pressure Indicator – 1 NTRODUCTION Available D050-A configurations Your D050-A model is available in a number of hardwired configuration options. A product label on the backside of the unit identifies which configuration options are included in your D050-A. The following table identifies the options that may apply to your D050-A. - Page 10 User manual D050-A Pressure Indicator 1 – I NTRODUCTION This page is left blanc intentionally. FW-D050-A-MAN-EN-V0101_02...
-
Page 11: Chapter 2: "Specifications Of The D050-A
Specifications of the D050-A CHAPTER General specifications Display Type High intensity reflective numeric and alphanumeric LCD, UV- resistant. Digits 5½ very large 26mm (1”) digits. Various symbols and measuring units. Refresh rate User definable: 8 times/sec - 30 secs - 1 time/30 secs - off. Type ZB Transflective LCD with bi-color LED backlight;... -
Page 12: Sensor Excitation
User manual D050-A Pressure Indicator 2 – S D050-A PECIFICATIONS OF THE Sensor excitation Sensor exitation specifications relate to the power supply type. Type PB / PX Not available Type PD / PM Dipswitch adjustable sensor supply: 8.2V DC. Iout max 35mA @ 20°C 12V DC. -
Page 13: Chapter 3: "Installation Instructions
Installation Instructions CHAPTER Note: This section describes various hardware configurations of the D050-A. Your particular model of the D050-A may not support all configuration options described. Mechanical Installation Figure 3: Mechanical mounting precautions To extend life of your unit: • Mount the D050-A on a solid base to avoid vibrations. •... -
Page 14: Electrical Installation - General
User manual D050-A Pressure Indicator 3 – I NSTALLATION NSTRUCTIONS Electrical installation – general Overview of Terminal Connectors To gain access to the connectors open the panel containing the D050-A. You now see the battery cover with the battery and the connectors at the back side of the display unit as shown below. The actual number and size of connectors depends on your particular model. -
Page 15: Power Supply Wiring
User manual D050-A Pressure Indicator – 3 NSTALLATION NSTRUCTIONS Connector Types and Wiring Sizes The following connector types are fitted. Wires are connected using a flat head screw driver: Classic COMBICON A screw connector with 5.08mm pitch, suitable for 0.2—2.5mm2 or AWG 24—12 wire. - Page 16 User manual D050-A Pressure Indicator 3 – I NSTALLATION NSTRUCTIONS Power wiring type PX Connect the “-”, GND or “0V” wire of your external power supply to pin P3. Connect the “+” wire to pin P4. Figure 8: Power wiring type PX D050-A 8-30Vdc With power wiring type PX pin S4 offers 8.2V to power a device in the field...
-
Page 17: Backlight
User manual D050-A Pressure Indicator – 3 NSTALLATION NSTRUCTIONS Power wiring type PM Type PM is a galvanically isolated high power switching power supply, converting 115–230Vac mains (50/60Hz) to power the D050-A, the backlight (option) and provides up to 24V sensor supply to the field. -
Page 18: I/O Wiring Options
User manual D050-A Pressure Indicator 3 – I NSTALLATION NSTRUCTIONS I/O wiring options Pressure Indicator Input Wiring Options Type A The D050-A requires a 0(4)–20mA input signal which will be processed 4 times a second with a 16 bit accuracy. Sensors that are not externally/self powered can by powered by the sensor supply terminal, when the D050-A is equipped with power supply type PD. -
Page 19: Chapter 4: "Configuring The D050-A
Configuring the D050-A CHAPTER General The D050-A has three buttons and four modes of operation, one of which is “off”. The active modes are displayed by status indicators. Configuration of the D050-A is possible via the Setup and Program modes, which are indicated by PROGRAM SETUP Warning:... -
Page 20: Quick Reference Menu
User manual D050-A Pressure Indicator 4 – C D050-A ONFIGURING THE Quick Reference Menu Shelf mode Mode to deactivate the unit for storage. The unit is switched off. Press SELECT twice to switch the unit on and perform a self test. Operator mode Setup mode Program mode... -
Page 21: Modes Of Operation
User manual D050-A Pressure Indicator D050-A – 4 ONFIGURING THE Modes of Operation Shelf Mode In Shelf mode the D050-A shuts down and can be shelved, stored or transported without draining the battery. All settings in EEPROM remain stored, even when the battery is removed. To wake the unit up press the center button ( /) twice to bring it in Operator mode. - Page 22 User manual D050-A Pressure Indicator 4 – C D050-A ONFIGURING THE Program Mode In Program mode you can change the properties (value or setting) of a selected Function item. Warning: Not understanding the effect of your changes can cause unexpected system responses, resulting in process inefficiency, product spilling and downtime.
-
Page 23: Overview Of Setup Functions And Settings
User manual D050-A Pressure Indicator D050-A – 4 ONFIGURING THE Overview of Setup Functions and Settings & ETUP FUNCTION SETTINGS DEFAULT VALUE 1 – P RESSURE 11 Unit - PSI - PA - PA - MBAR NO UNIT 12 Decimals 0000000 - 111111.1 - 22222.22 - 3333.333 13 Span 0.000010 - 9,999,999... -
Page 24: The D050-A Setup Functions Explained
User manual D050-A Pressure Indicator 4 – C D050-A ONFIGURING THE The D050-A Setup Functions Explained Warning: Disconnect the D050-A from the process before modifying setup items: Changes to setup items take immediate effect! 1 — P ETUP RESSURE Below setup items determine the calculation and visualisation of the measured pressure. •... -
Page 25: Display
User manual D050-A Pressure Indicator D050-A – 4 ONFIGURING THE 2 — D ETUP ISPLAY Below setup options define the display functions for the operator. SETUP Bar Graph Bar Graph (piegraph) displayed at operator level is percentage-wise related to the input signal: - Minimum signal = 0% - Maximum signal = 100% With this function the bargraph can be disabled / enabled. -
Page 26: Sensor
User manual D050-A Pressure Indicator 4 – C D050-A ONFIGURING THE Powers up the D050-A and performs a self test, after which it will switch to operator mode. operate 4 — S ETUP ENSOR Below setup items adjust the D050-A to accomodate to your type of pressure sensor signal. SETUP Filter Filter is used to filter undesired oscillation and jitter from the analog output signal, caused by... - Page 27 User manual D050-A Pressure Indicator D050-A – 4 ONFIGURING THE 1.0 second 1.8 second 2.8 seconds 5.3 seconds 1.8 second 3.5 seconds 5.6 seconds 11 seconds 3.5 seconds 7.0 seconds 11 seconds 23 seconds 5.3 seconds 10 seconds 17 seconds 34 seconds 8.8 seconds 17 seconds...
-
Page 28: Others
User manual D050-A Pressure Indicator 4 – C D050-A ONFIGURING THE SETUP Calibrate High / 20mA Calibrate High / 20mA allows you to tune the analog input value that represents the maximum pressure. Warning: Do not tune while the D050-A is processing data! •... -
Page 29: Chapter 5: "Operating The D050-A
Operating the D050-A CHAPTER The D050-A default mode of operation is the Operator mode. In Operator mode field information is processed and displayed. What information is displayed how depends on the configuration settings, as described in "Configuring the D050-A" on page 13 Signals, generated by the pressure sensor in the field, are processed real time in the background, independent from the configured display update speed. -
Page 30: Operator Functions
User manual D050-A Pressure Indicator 5 – O D050-A PERATING THE Operator functions For the operator the following functions are available: Display pressure This is the main display information of the F040-A. After selecting any other information, it will always return to this main display automatically. Pressure is displayed on the upper-line of the display and the measuring unit on the bottom line. -
Page 31: Range Error
User manual D050-A Pressure Indicator D050-A – 5 PERATING THE Warning: For your own safety use only original batteries supplied by the manufacturer. Non-certified batteries can pose a serious risk of explosion! Range error As soon as the input value is 5% outside the calibrated measurement range, the piegraph starts flashing. -
Page 32: Chapter 6: "Maintenance
Maintenance CHAPTER General directions The D050-A does not require special maintenance unless when used in • low-temperature applications, • high humidity environments (above 90% annual mean). It is the customers’ responsibility to take all precautions necessary to dehumidify the internal atmosphere of the D050-A enclosure in such a way that no condensation or ice deposition can occur. -
Page 33: Preventive Maintenance Checks
Caution: Warranty and certification of the D050-A are waived when repairs are carried out by others than Fluidwell bv or his authorized repair centre. Repair actions that customers are allowed do themselves are • "Replacing the Battery" on page 26... -
Page 34: Setup Configuration Examples
Setup Configuration Examples APPENDIX This appendix provides information and examples that might help you configure a number of setup functions. Calculating the Span Calculating the span for pressure Below examples show ways to calculate the span and corresponding decimals. Example: Calculating the span for pressure Let us assume that the sensor generates 20mA at a pressure of 18.95 Bar and the selected unit is "mbar". - Page 35 User manual D050-A Pressure Indicator – A ETUP ONFIGURATION XAMPLES Figure 20: A quick ref guide to calibrate an analog input 1 Disconnect the outputs to your process 2 Feed calibrated current 3 select from 43 or 44 and press to calibrate PROG SETUP...
- Page 36 User manual D050-A Pressure Indicator A – S ETUP ONFIGURATION XAMPLES To determine what filter value works best for your application, execute the steps below: Caution: Define your filter value carefully. If the filter value is chosen too high the D050-A may not –or too slowly, respond to changes in pressure.
-
Page 37: Troubleshooting The D050-A
Troubleshooting the D050-A APPENDIX In this appendix several issues are described that may occur during installation or operation of your D050-A. If you have an issue that is not reported here, please contact your supplier. Response not as expected Pressure indicator displays “0 / zero” while the pressure is higher Check: •... - Page 38 User manual D050-A Pressure Indicator B – T D050-A ROUBLESHOOTING THE This page is left blanc intentionally. FW-D050-A-MAN-EN-V0101_02...
- Page 39 User manual D050-A Pressure Indicator FW-D050-A-MAN-EN-V0101_02...
- Page 40 54 Password 0000 55 Tag Number 0000000 Fluidwell bv P.O. Box 6 Voltaweg 23 T +31 (0)413 343 786 5460 AA Veghel 5466 AZ F +31 (0)413 363 443 Copyright Fluidwell bv - 2013 FW-D050-A-MAN-EN-V0101_02 The Netherlands The Netherlands E displays@fluidwell.com...
