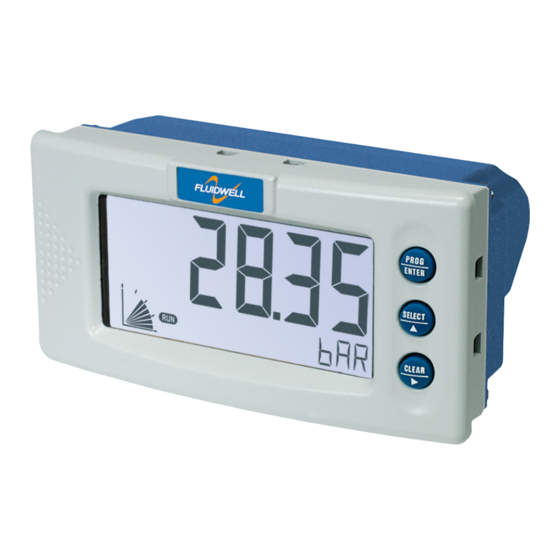

- Page 1 D043-A EMPERATURE NDICATOR WITH EMPERATURE LARM Signal input sensor: (0)4-20mA Alarm output: One temperature alarm Fluidwell D-Series Indicators - The better alternative for DIN panel mount indicators...
- Page 2 User manual D043-A Temperature Indicator Health and Safety Information Caution: The D043-A must only be installed, operated and maintained by competent personnel that received proper training on regular basis, including instructions on the various types of protection and installation practices, relevant rules and regulations, and the general principles of area classification.
-
Page 3: Read Me First
This manual is intended for all personnel involved in the operation, configuration, installation and troubleshooting of the D043-A Temperature Indicator. Information in this manual is subject to change without prior notice. Fluidwell bv is not responsible for mistakes in this material or for incidental damage caused as a direct or indirect result of the delivery, performance or use of this material. -
Page 4: Table Of Contents
User manual D043-A Temperature Indicator How To Read This Manual Caution: • Before operating, configuring, opening or installing the D043-A you are expected to have read and understood all relevant sections in this manual. • Before operation the D043-A MUST be installed in compliance with the installation instructions as described in "Installation Instructions"... - Page 5 Contents Read Me First! About This Guide ............iii Prerequisites.
- Page 6 User manual D043-A Temperature Indicator 1 – C ONTENTS Alarm output wiring ............13 Active / Passive output, Type OH .
-
Page 7: Chapter 1: "Introduction
Introduction CHAPTER System Description of the D043-A Functions and Features The Temperature Indicator model D043-A is a microprocessor controlled device to display the actual temperature as well as the monitoring of the temperature for high / low values. The D043-A has been designed with a focus on: •... -
Page 8: The D043-A Display Functions
User manual D043-A Temperature Indicator 1 – I NTRODUCTION The D043-A Display Functions The D043-A has a large transflective LCD with a number of symbols and digits to display measuring units, status information, trend indication and keyword messages. Figure 2: The display functions of the D043-A Numerical 17mm large display Large display trending readout... -
Page 9: Available D043-A Configurations
User manual D043-A Temperature Indicator – 1 NTRODUCTION Available D043-A configurations Your D043-A model is available in a number of hardwired configuration options. A product label on the backside of the unit identifies which configuration options are included in your D043-A. The following table identifies the options that may apply to your D043-A. -
Page 10: Chapter 2: "Specifications Of The D043-A
Specifications of the D043-A CHAPTER General specifications Display Type High intensity reflective numeric and alphanumeric LCD, UV- resistant. Digits Seven 17mm (0.67") and eleven 8mm (0.31")digits. Various symbols and measuring units. Refresh rate User definable: fast - 1 sec - 3 sec - 15 sec - 30 sec - off. Option ZB Transflective LCD with bi-color LED backlight;... -
Page 11: Sensor Excitation
User manual D043-A Temperature Indicator D043-A – 2 PECIFICATIONS OF THE Sensor excitation Sensor exitation specifications relate to the power supply type. Type PB / PX Not available Type PD / PM Dipswitch adjustable sensor supply: 8.2V DC. Iout max 35mA @ 20°C 12V DC. -
Page 12: Outputs
User manual D043-A Temperature Indicator 2 – S D043-A PECIFICATIONS OF THE Outputs Alarm output Output type User defined: low. high or both alarms (hi_lo). Type OH Active 24V DC transistor output; Requires PM/PD. Max load 75mA Passive transistor output - not isolated; Requires PM/PD. Max. 24V DC - 300mA. -
Page 13: Chapter 3: "Installation Instructions
Installation Instructions CHAPTER Note: This section describes various hardware configurations of the D043-A. Your particular model of the D043-A may not support all configuration options described. Mechanical Installation Figure 3: Mechanical mounting precautions To extend life of your unit: • Mount the D043-A on a solid base to avoid vibrations. •... -
Page 14: Electrical Installation - General
User manual D043-A Temperature Indicator 3 – I NSTALLATION NSTRUCTIONS Electrical installation – general Overview of Terminal Connectors To gain access to the connectors open the panel containing the D043-A. You now see the battery cover with the battery and the connectors at the back side of the display unit as shown below. The actual number and size of connectors depends on your particular model. -
Page 15: Power Supply Wiring
User manual D043-A Temperature Indicator – 3 NSTALLATION NSTRUCTIONS Connector Types and Wiring Sizes The following connector types are fitted. Wires are connected using a flat head screw driver: Classic COMBICON A screw connector with 5.08mm pitch, suitable for 0.2—2.5mm2 or AWG 24—12 wire. - Page 16 User manual D043-A Temperature Indicator 3 – I NSTALLATION NSTRUCTIONS Power wiring type PX Connect the “-”, GND or “0V” wire of your external power supply to pin P3. Connect the “+” wire to pin P4. Figure 8: Power wiring type PX D043-A 8-30Vdc With power wiring type PX pin S4 offers 8.2V to power a device in the field...
-
Page 17: Backlight
User manual D043-A Temperature Indicator – 3 NSTALLATION NSTRUCTIONS Power wiring type PM Type PM is a galvanically isolated high power switching power supply, converting 115–230Vac mains (50/60Hz) to power the D043-A, the backlight (option) and provides up to 24V sensor supply to the field. -
Page 18: I/O Wiring Options
User manual D043-A Temperature Indicator 3 – I NSTALLATION NSTRUCTIONS I/O wiring options Temperature Indicator Input Wiring Options Type A The D043-A requires a 0(4)–20mA input signal which will be processed 4 times a second with a 16 bit accuracy. Sensors that are not externally/self powered can by powered by the sensor supply terminal, when the D043-A is equipped with power supply type PD. -
Page 19: Alarm Output Wiring
User manual D043-A Temperature Indicator – 3 NSTALLATION NSTRUCTIONS Alarm output wiring Active / Passive output, Type OH Type OH provides an active pull up output and a passive pull down output. The active pull up output is capable of sourcing 75mA depending on the power supply used. Note that for the AC supplied inputs the total output current is reduced by the used nominal D043-A current. -
Page 20: Relay Contact Output, Type Or
User manual D043-A Temperature Indicator 3 – I NSTALLATION NSTRUCTIONS Relay Contact Output, Type OR Type OR provides a potential free output contact, capable of driving 2A @ 230V. When used for switching loads on another relay or solenoid valve coils the pilot duty rating is 0,5A @ 230Vac Note that (configured) output frequencies of 5Hz or higher reduce relay life time significantly. -
Page 21: Chapter 4: "Configuring The D043-A
Configuring the D043-A CHAPTER General The D043-A has three buttons and four modes of operation, one of which is “off”. The active modes are displayed by status indicators. Configuration of the D043-A is possible via the Setup and Program modes, which are indicated by PROGRAM SETUP Warning:... -
Page 22: Quick Reference Menu
User manual D043-A Temperature Indicator 4 – C D043-A ONFIGURING THE Quick Reference Menu Shelf mode Mode to deactivate the unit for storage. The unit is switched off. Press SELECT twice to switch the unit on and perform a self test. Operator mode Setup mode Program mode... -
Page 23: Modes Of Operation
User manual D043-A Temperature Indicator D043-A – 4 ONFIGURING THE Modes of Operation Shelf Mode In Shelf mode the D043-A shuts down and can be shelved, stored or transported without draining the battery. All settings in EEPROM remain stored, even when the battery is removed. To wake the unit up press the center button ( /) twice to bring it in Operator mode. - Page 24 User manual D043-A Temperature Indicator 4 – C D043-A ONFIGURING THE Program Mode In Program mode you can change the properties (value or setting) of a selected Function item. Warning: Not understanding the effect of your changes can cause unexpected system responses, resulting in process inefficiency, product spilling and downtime.
-
Page 25: Overview Of Setup Functions And Settings
User manual D043-A Temperature Indicator D043-A – 4 ONFIGURING THE Overview of Setup Functions and Settings & ETUP FUNCTION SETTINGS DEFAULT VALUE 1 – T EMPERATURE 11 Unit °C - °F - K - _( NO UNIT 12 Decimals 0000000 - 111111.1 - 22222.22 - 3333.333 13 Span 0.000010 - 9,999,999 14 Offset... -
Page 26: The D043-A Setup Functions Explained
User manual D043-A Temperature Indicator 4 – C D043-A ONFIGURING THE The D043-A Setup Functions Explained Warning: Disconnect the D043-A from the process before modifying setup items: Changes to setup items take immediate effect! 1 — T ETUP EMPERATURE Below setup items determine the calculation and visualisation of the measured temperature. •... -
Page 27: Alarm
User manual D043-A Temperature Indicator D043-A – 4 ONFIGURING THE 2 — A ETUP LARM Below setup items determine the alarm features that can be set for temperature monitoring. When set, alarms activate as soon as –and as long as– the temperature exceeds the corresponding alarm value. -
Page 28: Display
User manual D043-A Temperature Indicator 4 – C D043-A ONFIGURING THE 3 — D ETUP ISPLAY Below setup options define the display functions for the operator. SETUP Set Alarm Set Alarm determines who has access to the alarm settings. Options are: operator setup-level Both operator and programmer can access the alarm settings. -
Page 29: Sensor
User manual D043-A Temperature Indicator D043-A – 4 ONFIGURING THE SETUP Battery Mode Battery Mode initiates a power down to prevent battery drainage during transport and/or storage. Two settings are provided: shelf - operate Puts the D043-A in standby to allow storage for years with minimal battery drainage. The D043-A will shelf not function but saved totals and settings remain stored in this mode. - Page 30 User manual D043-A Temperature Indicator 4 – C D043-A ONFIGURING THE Response time in seconds on step change Filter level 50% delta 75% delta 90% delta 99% delta filter disabled filter disabled filter disabled filter disabled 0.3 second 0.5 second 1.0 second 1.8 second 0.5 second...
- Page 31 User manual D043-A Temperature Indicator D043-A – 4 ONFIGURING THE SETUP Calibrate Low / 4mA Calibrate Low / 4mA allows you to tune the analog input value that represents the minimum temperature. Warning: Do not tune while the D043-A is processing data! •...
-
Page 32: Others
User manual D043-A Temperature Indicator 4 – C D043-A ONFIGURING THE 6 — O ETUP THERS Below setup items identify the characteristics, location and accessibility of your D043-A. Below information may be requested when you call for support or maintenance –e.g. in the case of a serious breakdown–... -
Page 33: Chapter 5: "Operating The D043-A
Operating the D043-A CHAPTER The D043-A default mode of operation is the Operator mode. In Operator mode field information is processed and displayed. What information is displayed how depends on the configuration settings, as described in "Configuring the D043-A" on page 15 Signals, generated by the temperature sensor in the field, are processed real time in the background, independent from the configured display update speed. -
Page 34: Operator Functions
User manual D043-A Temperature Indicator 5 – O D043-A PERATING THE Operator functions For the operator the following functions are available: Display temperature This is the main display information of the F040-A. After selecting any other information, it will always return to this main display automatically. Temperature is displayed on the upper-line of the display and the measuring unit on the bottom line. -
Page 35: Range Error
User manual D043-A Temperature Indicator D043-A – 5 PERATING THE Warning: For your own safety use only original batteries supplied by the manufacturer. Non-certified batteries pose a serious risk of explosion! Range error As soon as the input value is 5% outside the calibrated measuring range, "ALARM" will be displayed. -
Page 36: Chapter 6: "Maintenance
Maintenance CHAPTER General directions The D043-A does not require special maintenance unless when used in • low-temperature applications, • high humidity environments (above 90% annual mean). It is the customers’ responsibility to take all precautions necessary to dehumidify the internal atmosphere of the D043-A enclosure in such a way that no condensation or ice deposition can occur. -
Page 37: Preventive Maintenance Checks
Caution: Warranty and certification of the D043-A are waived when repairs are carried out by others than Fluidwell bv or his authorized repair centre. Repair actions that customers are allowed do themselves are • "Replacing the Battery" on page 30... -
Page 38: Setup Configuration Examples
Setup Configuration Examples APPENDIX This appendix provides information and examples that might help you configure a number of setup functions. Calculating the Span Calculating the span for temperature Below examples show ways to calculate the span and corresponding decimals. Example: Calculating the span for temperature Let us assume that the sensor generates the minimum signal (e.g.4mA) at a temperature of -100.0°C and the maximum signal (e.g. - Page 39 User manual D043-A Temperature Indicator – A ETUP ONFIGURATION XAMPLES Figure 23: A quick ref guide to calibrate an analog input 1 Disconnect the outputs to your process 2 Feed calibrated current 3 select from 53 or 54 and press to calibrate PROG SETUP...
- Page 40 User manual D043-A Temperature Indicator A – S ETUP ONFIGURATION XAMPLES To determine what filter value works best for your application, execute the steps below: Caution: Define your filter value carefully. If the filter value is chosen too high the D043-A may not –or too slowly, respond to changes in temperature.
-
Page 41: Troubleshooting The D043-A
Troubleshooting the D043-A APPENDIX In this appendix several issues are described that may occur during installation or operation of your D043-A. If you have an issue that is not reported here, please contact your supplier. Response not as expected Temperature indicator displays “0 / zero” while the temperature is higher Check: •... - Page 42 User manual D043-A Temperature Indicator B – T D043-A ROUBLESHOOTING THE This page is left blanc intentionally. FW-D043-A-MAN-EN-V0101_02...
- Page 43 User manual D043-A Temperature Indicator FW-D043-A-MAN-EN-V0101_02...
- Page 44 64 Password 0000 65 Tag Number 0000000 Fluidwell bv P.O. Box 6 Voltaweg 23 T +31 (0)413 343 786 5460 AA Veghel 5466 AZ F +31 (0)413 363 443 Copyright Fluidwell bv - 2013 FW-D043-A-MAN-EN-V0101_02 The Netherlands The Netherlands E displays@fluidwell.com...
