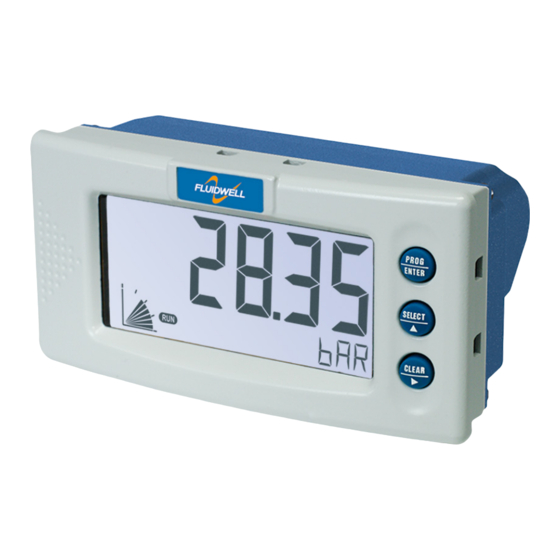

- Page 1 User Manual D070-A LEVEL INDICATOR Signal input: (0)4-20 mA sensor signal Options: backlight D-Series - Panel mounted indicators More info: www.fluidwell.com/dseries...
-
Page 2: Table Of Contents
User Manual D070-A TABLE OF CONTENTS ABOUT THIS MANUAL......................How to use this manual ....................Use of pictograms ......................Warranty and technical support ..................Model Reference ......................SAFETY ............................ Personal safety ....................... End-user responsibilities....................Potential equipment damage ..................Disposal of electronic waste ................... INTRODUCTION........................ - Page 3 D070-A User Manual Battery replacement......................25 7.3.1 Safety instructions ......................25 7.3.2 Battery replacement procedure ..................25 7.3.3 Disposal of batteries ....................... 26 APPENDIX A - TECHNICAL SPECIFICATION ................27 General ........................... 27 Input ..........................28 Operational ........................28 APPENDIX B - TROUBLESHOOTING ................... 29 APPENDIX C - LEGAL INFORMATION ..................
-
Page 4: About This Manual
● incorrect functioning of the unit or connected instruments. A note informs you of important information. WARRANTY AND TECHNICAL SUPPORT For warranty and technical support on your Fluidwell products, visit our internet site www.fluidwell.com or contact us at support@fluidwell.com. MODEL REFERENCE Hardware version: 03.04.xx... -
Page 5: Safety
D070-A User Manual SAFETY PERSONAL SAFETY ● Risk of electric shock: Only open the unit if all leads are free of potential electrical energy. ● Immediately inform the person responsible for the installation if you disagree with the safety precautions or if you detect errors or danger. END-USER RESPONSIBILITIES ●... -
Page 6: Introduction
User Manual D070-A INTRODUCTION SYSTEM DESCRIPTION The level indicator model D070-A is a microprocessor-driven instrument designed to show the actual level, percentage and height. Fig. 1: The D070 This manual describes the daily use, configuration and installation of the D070-A with analog (0)4-20mA input from a level sensor, and its available options. -
Page 7: Installation Example
D070-A User Manual ● Several options are available for powering the sensor. Options ● Power and sensor supply (Types PB, PD, PL, PM, PX, in various combinations) ● Display backlight (Type ZB). INSTALLATION EXAMPLE Following parts can be recognized in below installation example. Fig. 3: Installation example D070-A 1. -
Page 8: Operation
User Manual D070-A OPERATION This unit may only be operated by authorized and trained personnel who have read and understood this manual, particularly Section 2: Safety [»5] INTRODUCTION This chapter describes the daily use and operation of the D070-A. For this, the D-Series is equipped with a control panel that provides the operator with various functions, information and operating modes. -
Page 9: Backlight (Type Zb)
D070-A User Manual Normally, the display is updated depending on the refresh rate selected in the configuration settings. By pressing any key, the display switches to refreshing the information 8 times per second. After 30 seconds of key inactivity, the display returns to the configured refresh rate. Fig. 4: Example of display information during process 4.2.2... -
Page 10: Configuration
User Manual D070-A CONFIGURATION INTRODUCTION This chapter describes how technicians can use configuration settings to configure the D-Series for optimal functionality. Configuration of the D070-A can be done in SETUP mode, using the front keys. CONFIGURING USING SETUP MODE For an overview of Operating modes, see Section 4.1.1: Operating modes [»8] Changing settings may influence current operation In SETUP mode the unit remains fully operational. -
Page 11: Changing Configuration Settings
D070-A User Manual 5.2.3 CHANGING CONFIGURATION SETTINGS A menu item either contains a value (a number with optionally a decimal point and sign, e.g. -123.45) or a selection list (e.g. L – m - USGAL). After a menu item is selected in the SETUP menu, a new value can be programmed by performing the following steps. -
Page 12: Setup Menu Overview
User Manual D070-A SETUP MENU OVERVIEW LEVEL DEFAULT UNIT L - m3- kg - lb - GAL - USG - bbl - no unit DECIMALS 0 - 3 0.001 - 199,999 SPAN OFFSET -99,999 to +199,999 HEIGHT DEFAULT UNIT m - mm - cm - mtr - inch - ft - mmwk - mmwc - cmwk - cmwc - mwk - mwc - inwc - ftwc - mbar - bar - psi - no unit 0 - 2 DECIMALS... -
Page 13: Menu 2: Height
D070-A User Manual ● The Span is 652.31 – 200 = 452.31. ● Enter the Span as 452.31 at and 200.00 at 1.3: LEVEL > SPAN 1.4: LEVEL > OFFSET When a different unit is selected, the displayed values are NOT recalculated. LEVEL Determines the measurement unit for the displayed level. -
Page 14: Menu 3: Display
User Manual D070-A HEIGHT OFFSET Enter the "not measured" quantity which is present at sensor output zero. When necessary a negative offset can be entered: press the ► and ▲ button simultaneously. 5.4.3 MENU 3: DISPLAY DISPLAY UNDER The bottom line with 8 mm (0.31”) digits can be set to show: height - percentage - off - level Percentage refers to input signal: 4 mA equals 0%, 20 mA equals 100%. -
Page 15: Menu 5: Sensor
D070-A User Manual 5.4.5 MENU 5: SENSOR SENSOR FILTER The analog output signal of a level sensor mirrors the actual process value. This signal is sampled several times per second by the D070-A. Consequently, random and/or fast changes in sensor signal may lead to instable displayed process values. -
Page 16: Menu 6: Others
User Manual D070-A SENSOR CALIBRATE HIGH The D070 is calibrated in factory using a very accurate current source. In case the sensor signal does not equal 20mA at maximum level, this function is needed to set the input current at maximum level. Be very sure that the offered tuning signal is stable and correct before using it for calibration, since this setting has major influence on the accuracy of the system. -
Page 17: Installation
D070-A User Manual INSTALLATION ● Mounting, electrical installation, start-up and maintenance of this instrument may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions. ●... -
Page 18: Handling The D070-A Enclosure
User Manual D070-A HANDLING THE D070-A ENCLOSURE 6.2.1 IDENTIFICATION Identification label To identify your D070-A device, all enclosures have a weatherproof identification label placed at the backside of the product. Fig. 7: Example of D0-Series identification label Serial number and year of production The serial number can be reviewed on the identification label, the installation label, or in . -
Page 19: Mounting The D-Series
D070-A User Manual 6.3.2 MOUNTING THE D-SERIES The D-Series unit is mounted by placing it in an opening in a panel or cabinet (see Section 6.3.1: ) and securing it. To ensure proper IP or TYPE rating, the panel should Mechanical dimensions [»18] be rigid with a flat surface. -
Page 20: Electrical Safety
User Manual D070-A 6.4.1 ELECTRICAL SAFETY First consult the table with limiting environmental conditions and safety parameters in Section 6.1: Installation / environmental conditions [»17] General remarks ● Please note that the D070-A that came with a power module type PM will carry 110V-230V AC when installed. -
Page 21: Field Wiring Connections
D070-A User Manual 6.4.3 FIELD WIRING CONNECTIONS ● Do ground the aluminum / stainless steel enclosure properly with a PE wire as indicated to the Protective Earth terminal. It is the responsibility of the installer to install, connect and test the Protective Earth connections in accordance with the local and (inter)national Rules and Regulations. -
Page 22: Terminal Connectors
User Manual D070-A Jumper setting External sensor supply voltage 8.2 V DC 12 V DC 24 V DC TERMINAL CONNECTORS Type passive Take notice of all safety and precautionary measures indicated in Section 6.4: Electrical and review installation [»19] Section 6.4.3: Field wiring connections [»21] Section 6.4.4: Power before applying any field or power supply wiring. -
Page 23: Terminals S1-S2 (S4): Level Sensor Input
D070-A User Manual 6.5.2 TERMINALS S1-S2 (S4): LEVEL SENSOR INPUT The D070-A requires a (0)4-20mA level sensor signal which will be processed 4 times per second with 16 bit accuracy. The input is not isolated. The screen of the signal wire can be connected to the common ground terminal (see Field wiring connections). -
Page 24: Maintenance
User Manual D070-A MAINTENANCE GENERAL DIRECTIONS ● Mounting, electrical installation, start-up and maintenance of this instrument may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions. ●... -
Page 25: Battery Replacement
à plus de 100°C (212°F) ou exposer à l'eau. Primary Lithium Battery - Only replace with Fluidwell recommended battery pack! Pile primaire au lithium - Remplacer uniquement par une pile recommandé par Fluidwell! Fig. 16: Marking battery type PB: Safe area StdLiBAT-021 (SPB02) 7.3.2... -
Page 26: Disposal Of Batteries
User Manual D070-A 4. Place the back side cover back on the product and secure it with the four screws. 5. Check that the battery is installed properly by checking that the screen has come on. 6. Reconnect the unplugged field connectors. 7. -
Page 27: Appendix A - Technical Specification
D070-A User Manual APPENDIX A - TECHNICAL SPECIFICATION GENERAL DISPLAY Type High intensity reflective numeric and alphanumeric LCD, UV-resistant Digits 5½ with height 26mm (1”) and 11 with height 8mm (0.31”). Various symbols and measuring units. Dimensions 90 x 40 mm (3.5” x 1.6”) Refresh rate User definable: fast - 1 sec - 3 sec - 15 sec - off Piegraph... -
Page 28: Input
User Manual D070-A INPUT LEVEL SENSOR Signal type (0)4-20 mA, with signal calibration feature. Type PL min. 4 mA. Accuracy 16 bit. Error < 0.01 mA or ±0.05% FS. Low-level cut-off programmable. Span 0.001 - 199,999 with variable decimal position. Offset -99,999 to +199,999 Update time... -
Page 29: Appendix B - Troubleshooting
D070-A User Manual APPENDIX B - TROUBLESHOOTING Table 1 lists and describes how to troubleshoot problems that can occur when installing or operating the D070-A. Table 2 lists internal alarm codes and conditions signaled by a blinking ALARM flag on the display ). -
Page 30: Appendix C - Legal Information
EU De cla tio n of Conformi Fluidwell 0 D ‒Series indicators he , February 2022 We, Fluidwell BV, declare under our s e ol respons ibility that the 0 D ‒Series indicators are de igne d and will operate conform the following applicable European... - Page 31 D070-A User Manual LIST OF CONFIGURATION SETTINGS SETTING DEFAULT DATE: DATE: LEVEL UNIT DECIMALS SPAN OFFSET HEIGHT UNIT DECIMALS SPAN 1600 OFFSET DISPLAY UNDER height level BARGRAPH BACKLIGHT BACKLIGHT BRIGHTNESS POWER MANAGEMENT LCD UPDATE 1 sec BATTERY MODE operational SENSOR FILTER 01 (off) CUT-OFF...
- Page 32 Fluidwell bv P.O. Box 6 Voltaweg 23 Website: www.fluidwell.com 5460 AA Veghel 5466 AZ Veghel Find your nearest representative: www.fluidwell.com/representatives the Netherlands the Netherlands © Copyright 2024 - FW_D070-A_M_v0501-01_EN...
