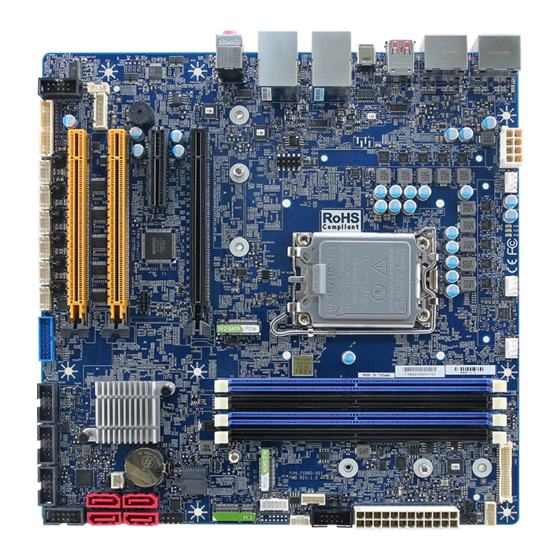

- Page 1 RX680R 12th/13th Gen Intel® Core™ Processors Micro ATX Motherboard with Intel® R680E Chipset User’s Manual Ed –12 January 2024 Part No. E2047RX6R00R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
- Page 4 A product returned without proof of the purchase date is not eligible for warranty service. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. 4 RX680R User’s Manual...
-
Page 5: Table Of Contents
2.3.19 LAN LED status connector (LAN_LED1) ..................30 2.3.20 Chassis intrusion connector (INTRUD1) ..................31 2.3.22 SMBUS connector (J_SMB1) ......................32 2.3.23 I2C connector (J_I2C1) ......................... 32 2.3.24 KMBS connector (J57) ........................33 3.BIOS Setup ........................34 Introduction ......................35 Starting Setup ......................35 RX680R User’s Manual... - Page 6 3.6.3.2.1.1 PCI Express M.2 E ........................ 63 3.6.3.2.1.2 PCI Express M.2 M ........................ 64 3.6.3.2.1.3 PCI Express X4 Open End ....................65 3.6.3.2.1.4 PCI Express X4 SLOT3 ......................66 3.6.3.2.1.5 PCI Express X4 SLOT4 ......................67 6 RX680R User’s Manual...
- Page 7 Save Changes and Reset ......................75 3.6.6.2 Discard Changes and Reset ...................... 75 3.6.6.3 Restore Defaults ........................75 3.6.6.4 AMIFWUpdate ........................... 75 3.6.7 Save & Exit ............................. 76 4. Mechanical Drawing ....................77 Mechanical Drawing ....................78 RX680R User’s Manual...
-
Page 8: Getting Started
1.2 Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x RX680R Motherboard 1 x I/O Shield 8 RX680R User’s Manual... -
Page 9: Document Amendment History
User’s Manual 1.3 Document Amendment History Revision Date Comment November 2023 Avalue Initial Release RX680R User’s Manual... -
Page 10: Manual Objectives
We strongly recommend that you study this manual carefully before attempting to set up RX680R or change the standard configurations. Whilst all the necessary information is available in this manual we would recommend that unless you are confident, you contact your supplier for guidance. -
Page 11: System Specifications
COM1 ~ 5: support RS232 5 x 2 x 5 pin, pitch 2.00mm connector for COM1~COM5 to support RS232 5 x 2 x 3 pin, pitch 2.54mm connector for COM1~ COM5 pin9 RI/5V/12V jumper select. COM6: support RS232/422/485 RX680R User’s Manual 11... - Page 12 1 x 2 x 13pin, pitch 2.00mm connector for LPT Display Graphic Chipset Intel® 12th /13th Generation CPU integrated Spec. & 4 x Dual Mode DisplayPort 1.4a 4K@60Hz Resolution Multiple Display 4 Independent Displays Ethernet LAN Chipset 2 x Intel® i225-LM 2.5G Gigabit Controller 12 RX680R User’s Manual...
- Page 13 4. Test Axis : X,Y and Z axis 5. 30 minutes per each axis 6. IEC 60068-2-64 Test:Fh Random Vibration Non Operation Reference IEC60068-2-64 Testing procedures Test Fh : Vibration broadband random Test 1. PSD: 0.00202023G²/Hz 0.5 Grm RX680R User’s Manual 13...
- Page 14 **Note: Windows 11 is not a LTSC release and will be supported on the Intel CCG Client roadmap. OS Information NEX Network & Edge customers may install non-LTSC releases(e.g. Win11) on NEX Network & Edge processors.** Win10 64bit UEFI Linux Note: Specifications are subject to change without notice. 14 RX680R User’s Manual...
-
Page 15: Architecture Overview-Block Diagram
User’s Manual 1.6 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of RX680R. RX680R User’s Manual 15... -
Page 16: Hardware Configuration
RX680R User’s Manual 2. Hardware Configuration 16 RX680R User’s Manual... -
Page 17: Product Overview
User’s Manual 2.1 Product Overview RX680R User’s Manual 17... -
Page 18: Jumper And Connector List
3 x 2 header, pitch 2.54mm Connectors Label Function Note CPU FAN Connector 4 x 1 wafer, pitch 2.54mm CPU_FAN1 SYS_FAN1 Chassis Fan Connector 4 x 1 wafer, pitch 2.54mm SYS_FAN2 Chassis Fan Connector 4 x 1 wafer, pitch 2.54mm 18 RX680R User’s Manual... - Page 19 Gen 4 PCIe x 4 + SATA III M Key Gen 3 PCIe x 4 + SATA III PCIe x 1 + USB 2.0 support CNVi DisplayPort Connectors x 4 DisplayPort USB 3.2 Type A Connectors x 2 USB3.2 RX680R User’s Manual 19...
- Page 20 RX680R User’s Manual USBC USB 3.2 Type C Connector RJ45 Ethernet Connectors x 2 USB3.2+LAN 2.5 Gigabit Ethernet USB 3.2 Type A Connectors x 4 AUDIO Audio Phone Jack Lin-out, Mic-in 20 RX680R User’s Manual...
-
Page 21: Setting Jumpers & Connectors
User’s Manual 2.3 Setting Jumpers & Connectors 2.3.1 Clear CMOS (JCMOS1) Normal* Clear CMOS * Default 2.3.2 AT/ATX Power Mode Select (JSATX1) ATX* * Default RX680R User’s Manual 21... -
Page 22: Com Power Setting (J56,J45~J48,J25)
RX680R User’s Manual 2.3.3 COM POWER SETTING (J56,J45~J48,J25) Ring* +12V * Default 2.3.4 LVDS Panel Power Select (PANEL_SEL1) +12V +5V* * Default 22 RX680R User’s Manual... -
Page 23: Lvds Blacklight Voltage Selection (Bklvol1)
User’s Manual 2.3.5 LVDS Blacklight Voltage Selection (BKLVOL1) +3V* * Default 2.3.6 CPU fan connector (CPUFAN1) Signal +12V FAN_TACH FAN_CTRL RX680R User’s Manual 23... -
Page 24: System Fan Connector (Sys_Fan 1/2)
RX680R User’s Manual 2.3.7 System fan connector (SYS_FAN 1/2) SYS_FAN1 SYS_FAN2 Signal +12V FAN_TACH FAN_CTRL 2.3.8 System Panel (FIO_PANEL1) Signal PIN PIN Signal HHD LED+ PWR LED+ HHD LED- PWR LED- PWR_BTN 24 RX680R User’s Manual... -
Page 25: Atx Power Connector (Atxpwr1)
User’s Manual 2.3.9 ATX Power connector (ATXPWR1) Signal Signal -12V PS_ON PWRER OK +5 VSB +12V +12V 2.3.10 ATX Power connector (ATXPWR1) Signal Signal +12V +12V +12V +12V RX680R User’s Manual 25... -
Page 26: Serial Port Connectors (Com1~6)
RX680R User’s Manual 2.3.11 Serial Port connectors (COM1~6) COM6 COM5 Signal PIN PIN Signal COM4 IRxPWRxJMP COM3 COM2 NCTS NRTS COM1 NDSR NDTR NDCD 2.3.12 Serial Port connectors (COM1~6) SATA2 SATA4 SATA3 SATA1 ˋ4 Signal 26 RX680R User’s Manual... -
Page 27: Usb Connectors (Usb2_Hr1, Usb2_Hr2, Usb2_Hr3, Usb2_Hr4)
2.3.14 USB3.2 connector (USB3_HR1) Signal PIN PIN Signal USB2 D+ USB2 D+ USB2 D- USB2 D- USB3 TX+ USB3 TX+ USB3 TX- USB3 TX- USB3 RX+ USB3 RX+ USB3 RX- USB3 RX- +5V USB +5V USB RX680R User’s Manual 27... -
Page 28: Front Audio Connector (Fio_Aud1)
RX680R User’s Manual 2.3.15 Front Audio connector (FIO_AUD1) Signal PIN PIN Signal MIC2_L AGND MIC2_R FP_HDADET LINE2_R MIC2_JD FR-IO-SENSE LINE2_L LINE2_JD 2.3.16 Amplifier connector (SPK1) Signal ROUT- ROUT+ LOUT- LOUT+ 28 RX680R User’s Manual... -
Page 29: Lvds Connector (Lvds1)
User’s Manual 2.3.17 LVDS connector (LVDS1) Signal PIN PIN Signal BKLT_+12V BKLT_+12V LS1_CLK_D- LS0_CLK_D- LS1_CLK_D+ LS0_CLK_D+ LS1_L3_D- LS1_L2_D- LS1_L3_D+ LS1_L2_D+ LS1_L1_D- LS1_L0_D- LS1_L1_D+ LS1_L0_D+ LS0_L3_D- LS0_L2_D- LS0_L3_D+ LS0_L2_D+ LS0_L1_D- LS0_L0_D- LS0_L1_D+ LS0_L0_D+ CABLE_ID1 LS_SCL LS_SDA (PANEL_PWR) (PANEL_PWR) RX680R User’s Manual 29... -
Page 30: Lvds Backlight Connector (Bklt1)
RX680R User’s Manual 2.3.18 LVDS Backlight connector (BKLT1) Signal +12V_BL BKLT_EN BKLT_PWM +5V_BL 2.3.19 LAN LED status connector (LAN_LED1) Signal PIN PIN Signal 1G_LAN1_LED 1G_LAN2_LED 2.5G_LAN1_LED 2.5G_LAN2_LED LAN1_ACT LAN2_ACT 30 RX680R User’s Manual... -
Page 31: Chassis Intrusion Connector (Intrud1)
User’s Manual 2.3.20 Chassis intrusion connector (INTRUD1) Signal PCH_INTRUDER# 2.3.21 8 bit GPIO header (GPIO_HDR1) Signal PIN PIN Signal AP_GPIO5 AP_GPIO1 AP_GPIO6 AP_GPIO2 AP_GPIO7 AP_GPIO3 AP_GPIO8 AP_GPIO4 SMB_DATA SMB_CLK +3V_DUAL 11. GND RX680R User’s Manual 31... -
Page 32: Smbus Connector (J_Smb1)
RX680R User’s Manual 2.3.22 SMBUS connector (J_SMB1) Signal SMB_CLK SMB_DATA SMB_ALERT +3.3V 2.3.23 I2C connector (J_I2C1) Signal +3V_DAUL I2C1_SCL I2C1_SDA 32 RX680R User’s Manual... -
Page 33: Kmbs Connector (J57)
User’s Manual 2.3.24 KMBS connector (J57) Signal KCLK KDAT MDAT +5V_DUAL MCLK RX680R User’s Manual 33... -
Page 34: Bios Setup
RX680R User’s Manual 3.BIOS Setup 34 RX680R User’s Manual... -
Page 35: Introduction
If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to. Press F1 to Continue, DEL to enter SETUP RX680R User’s Manual 35... -
Page 36: Using Setup
Note: Some of the navigation keys differ from one screen to another. To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. 36 RX680R User’s Manual... -
Page 37: Getting Help
BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. RX680R User’s Manual 37... -
Page 38: Bios Setup
Note: The BIOS setup screens shown in this chapter are for reference purposes only, and may not exactly match what you see on your screen. Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 38 RX680R User’s Manual... -
Page 39: Advanced Menu
User’s Manual 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 3.6.2.1 CPU Configuration RX680R User’s Manual 39... -
Page 40: Performance-Core Information
Options Description Enables utilization of additional hardware Intel Trusted Execution Disabled[Default], capabilities provided by Intel ® Trusted Technology Enabled Execution Technology. Changes require a full power cycle to take effect. 3.6.2.1.1 Performance-core Information 3.6.2.2 PCH-FW Configuration 40 RX680R User’s Manual... -
Page 41: Tpm Config
Selects TPM device: PTT or dTPM. PTT - dTPM[Default], Enables PTT in SkuMgr dTPM 1.2 - Disables TPM Device Selection PTT in SkuMgr Warning ! PTT/dTPM will be disabled and all data saved on it will be lost. RX680R User’s Manual 41... -
Page 42: Trusted Computing
INT1A interface will not be available. Schedule an Operation for the Security Device. NOTE: None[Default], Pending operation Your Computer will reboot during restart in order to TPM Clear change State of Security Device. 3.6.2.4 ACPI Settings 42 RX680R User’s Manual... -
Page 43: Nct6126D Super Io Configuration
Set Parameters of Serial Port 3 (COMC). Serial Port 4 Configuration Set Parameters of Serial Port 4 (COMD). Serial Port 5 Configuration Set Parameters of Serial Port 5 (COME). Serial Port 6 Configuration Set Parameters of Serial Port 6 (COMF). RX680R User’s Manual 43... -
Page 44: Serial Port 1 Configuration
3.6.2.5.1 Serial Port 1 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], Auto[Default], IO=3F8h; IRQ4; IO=3F8h; IRQ3,4,5,6,7,9,10,11,12; Select an optimal settings for Super IO Change Settings IO=2F8h; IRQ3,4,5,6,7,9,10,11,12; Device IO=3E8h; IRQ3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ3,4,5,6,7,9,10,11,12; 44 RX680R User’s Manual... -
Page 45: Serial Port 2 Configuration
3.6.2.5.2 Serial Port 2 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], Auto[Default], IO=2F8h; IRQ4; IO=3F8h; IRQ3,4,5,6,7,9,10,11,12; Select an optimal settings for Super IO Change Settings IO=2F8h; IRQ3,4,5,6,7,9,10,11,12; Device IO=3E8h; IRQ3,4,5,6,7,9,10,11,12; IO=2E8h; IRQ3,4,5,6,7,9,10,11,12; RX680R User’s Manual 45... -
Page 46: Serial Port 3 Configuration
3.6.2.5.3 Serial Port 3 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], Auto[Default], IO=3E8h; IRQ7; IO=3E8h; IRQ3,4,5,6,7,9,10,11,12; Select an optimal settings for Super IO Change Settings IO=2E8h; IRQ3,4,5,6,7,9,10,11,12; Device IO=220h; IRQ3,4,5,6,7,9,10,11,12; IO=228h; IRQ3,4,5,6,7,9,10,11,12; 46 RX680R User’s Manual... -
Page 47: Serial Port 4 Configuration
3.6.2.5.4 Serial Port 4 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], Auto[Default], IO=2E8h; IRQ6; IO=3E8h; IRQ3,4,5,6,7,9,10,11,12; Select an optimal settings for Super IO Change Settings IO=2E8h; IRQ3,4,5,6,7,9,10,11,12; Device IO=220h; IRQ3,4,5,6,7,9,10,11,12; IO=228h; IRQ3,4,5,6,7,9,10,11,12; RX680R User’s Manual 47... -
Page 48: Serial Port 5 Configuration
3.6.2.5.5 Serial Port 5 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], Auto[Default], IO=220h; IRQ=10; IO=3E8h; IRQ3,4,5,6,7,9,10,11,12; Select an optimal settings for Super IO Change Settings IO=2E8h; IRQ3,4,5,6,7,9,10,11,12; Device IO=220h; IRQ3,4,5,6,7,9,10,11,12; IO=228h; IRQ3,4,5,6,7,9,10,11,12; 48 RX680R User’s Manual... -
Page 49: Serial Port 6 Configuration
3T/5R RS232[Default], 1T/1R RS485 TX ENABLE Low Active 1T/1R RS485 TX ENABLE High Active Configure serial port as Mode Configuration 1T/1R RS422 with termination resistor RS232/RS422/RS485. 1T/1R RS485 with termination resistor TX ENABLE Low Active Disabled RX680R User’s Manual 49... -
Page 50: Parallel Port Configuration
IO=278h; IRQ5,6,7,9,10,11,12; IO=3BCh; IRQ5,6,7,9,10,11,12; STD Printer Mode[Default], SPP Mode EPP-1.9 and SPP Mode Device Mode EPP-1.7 and SPP Mode Change the Printer Port mode. ECP Mode ECP and EPP 1.9 Mode ECP and EPP 1.7 Mode 50 RX680R User’s Manual... -
Page 51: Hardware Monitor
User’s Manual 3.6.2.6 Hardware Monitor 3.6.2.6.1 Smart Fan Function RX680R User’s Manual 51... -
Page 52: Front Fan Setting
The value of Fan Duty/RPM when temperature is T1. FD/RPM 2 The value of Fan Duty/RPM when temperature is T2. FD/RPM 3 The value of Fan Duty/RPM when temperature is T3. FD/RPM 4 The value of Fan Duty/RPM when temperature is T4. 52 RX680R User’s Manual... -
Page 53: Cpu Fan Setting
The value of Fan Duty/RPM when temperature is T1. FD/RPM 2 The value of Fan Duty/RPM when temperature is T2. FD/RPM 3 The value of Fan Duty/RPM when temperature is T3. FD/RPM 4 The value of Fan Duty/RPM when temperature is T4. RX680R User’s Manual 53... -
Page 54: Rear Fan Setting
The value of Fan Duty/RPM when temperature is T1. FD/RPM 2 The value of Fan Duty/RPM when temperature is T2. FD/RPM 3 The value of Fan Duty/RPM when temperature is T3. FD/RPM 4 The value of Fan Duty/RPM when temperature is T4. 54 RX680R User’s Manual... -
Page 55: Ami Graphic Output Protocol Policy
LVDS Panel Type 1366x768 24bit Single Channel appropriate 1440x900 24bit Dual Channel setup item. 1440x1050 24bit Dual Channel 1600x900 24bit Dual Channel 1680x1050 24bit Dual Channel 1600x1200 24bit Dual Channel 1920x1080 24bit Dual Channel[Default], 1920x1200 24bit Dual Channel RX680R User’s Manual 55... -
Page 56: Usb Configuration
Maximum time the device will take before it properly Auto[Default], reports itself to the Host Controller. 'Auto' uses default Device power-up delay Manual value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor. 56 RX680R User’s Manual... -
Page 57: Network Stack Configuration
Enable/Disable Ipv4 PXE Boot Support. If disabled Ipv4 PXE Support Enabled IPV4 PXE boot support will not be available. Disabled[Default], Enable/Disable Ipv6 PXE Boot Support. If disabled Ipv6 PXE Support Enabled IPV6 PXE boot support will not be available. RX680R User’s Manual 57... -
Page 58: Nvme Configuration
RX680R User’s Manual 3.6.2.10 NVMe Configuration 3.6.3 Chipset 58 RX680R User’s Manual... -
Page 59: System Agent (Sa) Configuration
User’s Manual 3.6.3.1 System Agent (SA) Configuration Item Options Description Disabled VT-d VT-d capability Enabled[Default], 3.6.3.1.1 Memory Configuration RX680R User’s Manual 59... - Page 60 Disabled Keep IGFX enabled based on the setup options. Enabled Disabled[Default], PSMI SUPPORT PSMI Enable/Disable Enabled 64M[Default], 128M 160M Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory DVMT Pre-Allocated size used by the Internal Graphics Device. 32M/F7 60 RX680R User’s Manual...
- Page 61 User’s Manual 128M Select DVMT5.0 Total Graphic Memory size used by the DVMT Total Gfx Mem 256M[Default], Internal Graphics Device. 3.6.3.1.3 VMD setup menu Item Options Description Disabled[Default], Enabled VMD controller Enable/Disable to VMD controller Enabled RX680R User’s Manual 61...
-
Page 62: Pch-Io Configuration
Specify what state to go to when power is re-applied State After G3 S5 State after a power failure (G3 state). Last State[Default], Disabled[Default], GPIO Group Control GPIO Header Control Enable/Disable. Enabled Disabled[Default], Chassis Intrusion Enabled Configure Chassis Intrusion. Reset 62 RX680R User’s Manual... -
Page 63: Pci Express M.2 E
Set the ASPM Level: Force L0s - Force all links to ASPM L1[Default], L0s State AUTO - BIOS auto configure DISABLE - Auto Disables ASPM Disabled L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default], Auto[Default], Gen1 PCIe Speed Configure PCIe Speed Gen2 Gen3 RX680R User’s Manual 63... -
Page 64: Pci Express M.2 M
Set the ASPM Level: Force L0s - Force all links to ASPM L1[Default], L0s State AUTO - BIOS auto configure DISABLE - Auto Disables ASPM Disabled L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default], Auto[Default], Gen1 PCIe Speed Configure PCIe Speed Gen2 Gen3 64 RX680R User’s Manual... -
Page 65: Pci Express X4 Open End
Set the ASPM Level: Force L0s - Force all links to ASPM L1[Default], L0s State AUTO - BIOS auto configure DISABLE - Auto Disables ASPM Disabled L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default], Auto[Default], Gen1 PCIe Speed Configure PCIe Speed Gen2 Gen3 RX680R User’s Manual 65... -
Page 66: Pci Express X4 Slot3
Set the ASPM Level: Force L0s - Force all links to ASPM L1[Default], L0s State AUTO - BIOS auto configure DISABLE - Auto Disables ASPM Disabled L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default], Auto[Default], Gen1 PCIe Speed Configure PCIe Speed Gen2 Gen3 66 RX680R User’s Manual... -
Page 67: Pci Express X4 Slot4
Set the ASPM Level: Force L0s - Force all links to ASPM L1[Default], L0s State AUTO - BIOS auto configure DISABLE - Auto Disables ASPM Disabled L1 Substates L1.1 PCI Express L1 Substates settings. L1.1 & L1.2[Default], Auto[Default], Gen1 PCIe Speed Configure PCIe Speed Gen2 Gen3 RX680R User’s Manual 67... -
Page 68: Connectivity Configuration
NOTE: When CNVi is present, the GPIO pins that are used for radio Enabled[Default], This is an option intended to Enable/Disable Wi-Fi Wi-Fi Core Disabled Core in CNVi Enabled[Default], This is an option intended to Enable/Disable BT Core BT Core Disabled in CNVi 68 RX680R User’s Manual... -
Page 69: Sata Configuration
User’s Manual 3.6.3.2.2 SATA Configuration Item Options Description SATA Mode Selection AHCI Determines how SATA controller(s) operate. 3.6.3.2.3 USB Configuration RX680R User’s Manual 69... -
Page 70: Hd Audio Configuration
Power Enabled[Default], Front IO USB2 Header 2 Disabled Enable/Disable USB ports of USB2 Header 2. Power Enabled[Default], Front IO USB2 Header 1 Disabled Enable/Disable USB ports of USB2 Header 1. Power Enabled[Default], 3.6.3.2.4 HD Audio Configuration 70 RX680R User’s Manual... -
Page 71: Security
HD Audio Disabled = HDA will be unconditionally disabled Enabled[Default], Enabled = HDA will be unconditionally enabled 3.6.4 Security Item Description Administrator Set Administrator Password Password User Password Set User Password ME Update Flash Security Override. RX680R User’s Manual 71... -
Page 72: P7:Patriot Burst Eilte 120Gb
RX680R User’s Manual 3.6.4.1 P7:Patriot Burst Eilte 120GB 3.6.4.2 Secure Boot 72 RX680R User’s Manual... -
Page 73: Boot
USB Key, USB Hard Disk , NVME, Network, UEFI AP, Disabled USB Floppy, CD/DVD, USB CD/DVD[Default], Hard Disk , USB Key, Boot Option #3 Sets the system boot order USB Hard Disk , NVME, Network, UEFI AP, Disabled RX680R User’s Manual 73... - Page 74 Sets the system boot order NVME, Network[Default], UEFI AP, Disabled USB Floppy, CD/DVD, USB CD/DVD, Hard Disk , Boot Option #8 USB Key, USB Hard Disk , Sets the system boot order NVME, Network, UEFI AP[Default], Disabled 74 RX680R User’s Manual...
-
Page 75: Save & Exit
The setup program then exits and reboots the controller. 3.6.6.3 Restore Defaults This option restores all BIOS settings to the factory default. This option is useful if the controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting. 3.6.6.4 AMIFWUpdate Launches AMFWUpdate. RX680R User’s Manual 75... -
Page 76: Save & Exit
RX680R User’s Manual 3.6.7 Save & Exit 76 RX680R User’s Manual... -
Page 77: Mechanical Drawing
User’s Manual 4. Mechanical Drawing RX680R User’s Manual 77... -
Page 78: Mechanical Drawing
RX680R User’s Manual 4.1 Mechanical Drawing Unit: mm Unit: mm 78 RX680R User’s Manual... - Page 79 User’s Manual Unit: mm RX680R User’s Manual 79...
