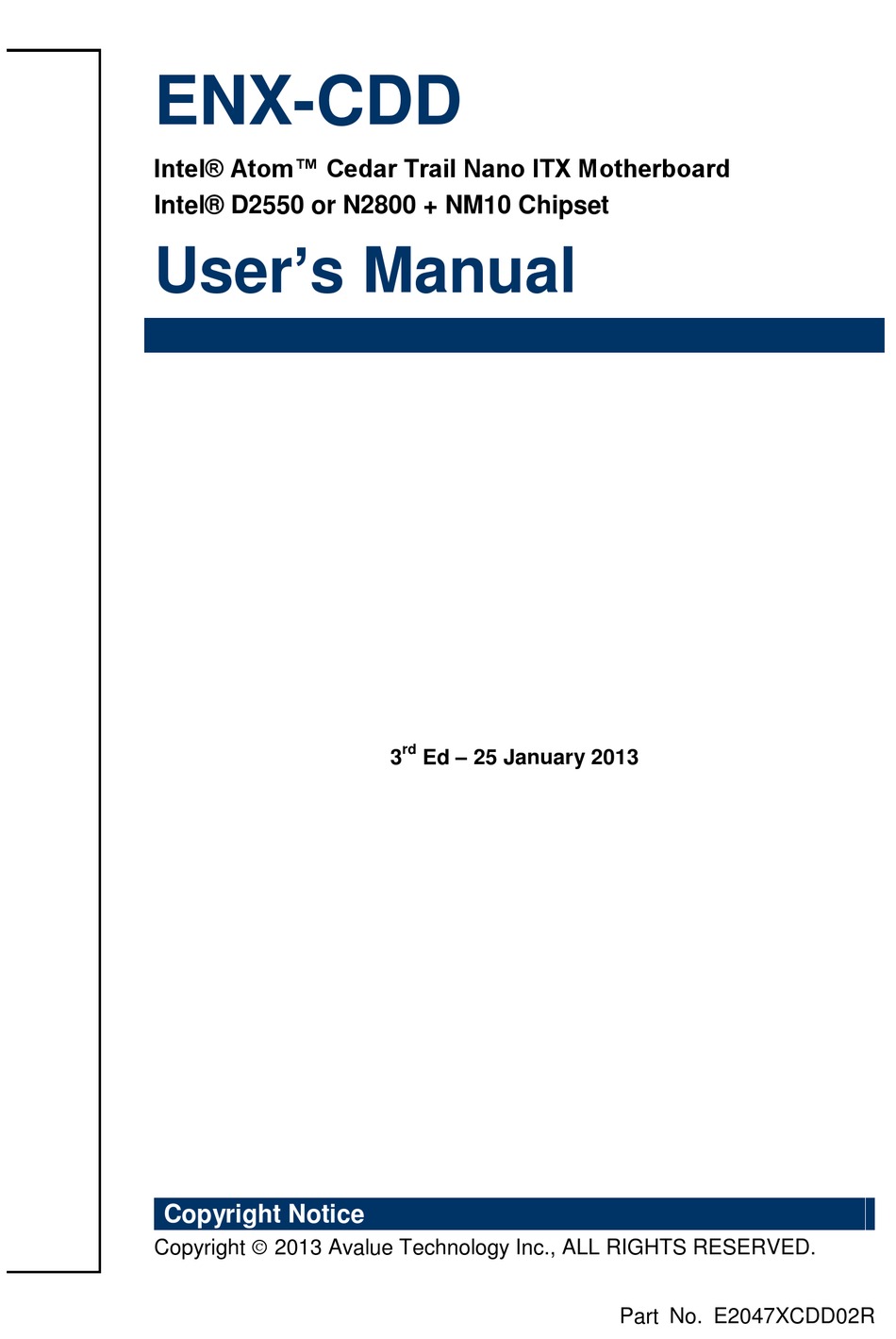

- Page 1 ENX-CDD Intel® Atom™ Cedar Trail Nano ITX Motherboard Intel® D2550 or N2800 + NM10 Chipset User’s Manual Ed – 25 January 2013 Copyright Notice Copyright 2013 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2047XCDD02R...
-
Page 2: Table Of Contents
PCIE signal selector (J_PCIE) .............. 24 3.BIOS Setup ........................25 Introduction ..................... 26 Starting Setup ....................26 Using Setup ....................27 Getting Help ....................28 In Case of Problems ..................28 BIOS setup ..................... 29 3.6.1 Main Menu .................... 29 2 ENX-CDD User’s Manual... - Page 3 Install Chipset Driver (For Integrated Cedar Trail) .......... 46 Install VGA Driver ................... 47 Install LAN Driver (For Realtek 8111E Gigabit Ethernet) ....... 48 Install AHCI Driver ..................49 Install Cardreader Driver ................50 Install CIR Driver .................... 51 5. Mechanical Drawing ....................52 ENX-CDD User’s Manual 3...
-
Page 4: Getting Started
Quick Installation Guide X 1 Driver/Utility CD X 1 Serial ATA Signal with Power Cable X 1 Serial ATA AUX Board X1 COM Cable X 1 VGA Cable X1 Motherboard X 1 4 ENX-CDD User’s Manual... -
Page 5: Document Amendment History
ENX-CDD User’s Manual 1.3 Document Amendment History Revision Date Comment October Avalue Initial Release 2012 December Avalue Update Mechanical Drawing 2012 January Avalue Update Drivers Installation 2013 ENX-CDD User’s Manual 5... -
Page 6: Manual Objectives
We strongly recommend that you study this manual carefully before attempting to set up ENX-CDD series or change the standard configurations. Whilst all the necessary information is available in this manual we would recommend that unless you are confident, you contact your supplier for guidance. -
Page 7: Specifications
1 x 9-pin Header for RS-232 port 1 x 12-pin Header for 1x SATAII (3Gb/s) to SATA AUX board 1 x 10-pin Header for VGA Output 1 x 9-pin Header for LPC for Debug only 1 x 2-pin Header for Reset ENX-CDD User’s Manual 7... - Page 8 4.72” x 4.72” (120mm x 120mm) Size (L x W) Weight 0.88lbs (0.4kg) Ordering Information: ENX-CDD-N2800-A1R or ENX-CDD-D2550-A1R Nano ITX Motherboard Intel® Atom™ CedarView D2550 or N2800 Processor with NM10 Chipset and Others VGA ,LVDS, HDMI, Line in,Mic in,1GbE, 1 Mini PCIe,1 SATA,1 COM,3 USB, 1 PS2...
-
Page 9: Architecture Overview-Block Diagram
ENX-CDD User’s Manual 1.6 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of ENX-CDD. ENX-CDD User’s Manual 9... -
Page 10: Hardware Configuration
ENX-CDD User’s Manual 2. Hardware Configuration 10 ENX-CDD User’s Manual... -
Page 11: Product Overview
ENX-CDD User’s Manual 2.1 Product Overview ENX-CDD User’s Manual 11... - Page 12 ENX-CDD User’s Manual 12 ENX-CDD User’s Manual...
-
Page 13: Installation Procedure
6. Enter the BIOS setup by pressing the delete key during boot up. Use the "Save & Exit \ Restore Defaults" feature. 7. If TFT panel display is to be utilized, make sure the panel voltage is correctly set before connecting the display cable and turning on the power. ENX-CDD User’s Manual 13... -
Page 14: Jumper And Connector List
BAT1 Battery connector 2 x 1 wafer, pitch 1.25 mm JPCIE PCIE signal selector 14 x 1 wafer, pitch 1.00 mm Reset connector 2 x 1 header, pitch 2.54 mm J_RST HDMI connector HDMI1 SD/MS/MMC socket 14 ENX-CDD User’s Manual... - Page 15 LCD Inverter connector 5 x 1 header, pitch 2.54 mm SFAN1 System Fan connector 4 x 1 wafer, pitch 2.54 mm JVGA1 VGA connector 5 x 2 header, pitch 2.54 mm MPCIE1 Mini-PCI-e socket DIMM1 DDR3 SODIMM socket ENX-CDD User’s Manual 15...
-
Page 16: Setting Jumpers & Connectors
ENX-CDD User’s Manual 2.4 Setting Jumpers & Connectors 2.4.1 LVDS voltage (JP1) VCC5* VCC3 Define VCC3 * Default VCC5 2.4.2 mSATA/Mini PCIe function Jumper (JS1/JS2) MINIPCIE* M-SATA * Default Define M-SATA MINIPCIE 16 ENX-CDD User’s Manual... -
Page 17: Lcd Inverter Connector (Incn1)
ENX-CDD User’s Manual 2.4.3 LCD Inverter connector (INCN1) Signal BKL_EN 2.4.4 General Purpose I/O (JGPIO1) Signal PIN PIN Signal GPIO GPIO GPIO GPIO 3.3V ENX-CDD User’s Manual 17... -
Page 18: Vga Connector (Jvga1)
ENX-CDD User’s Manual 2.4.5 VGA connector (JVGA1) Signal PIN PIN Signal GREEN BLUE HSYNC VSYNC DDC_DATA DDC_CLK 2.4.6 Serial port 1 connector (JCOM1) Signal PIN PIN Signal 18 ENX-CDD User’s Manual... -
Page 19: System Fan Connector (Sfan1)
ENX-CDD User’s Manual 2.4.7 System Fan connector (SFAN1) Signal Ground +12V Control 2.4.8 Speaker connector (J3) Signal INTSPL+ INTSPL- INTSPR- INTSPR+ ENX-CDD User’s Manual 19... -
Page 20: Keyboard & Mouse Connector (Jkb_Ms1)
ENX-CDD User’s Manual 2.4.9 Keyboard & mouse connector (JKB_MS1) Signal PIN PIN Signal MS_CLK MS_DATA KB_CLK KB_DATA Note: The KB/Mouse cable is not included. 2.4.10 Low Pin Count (LPC) Signal Signal LPC_DATA3 LPC_DATA2 PLC_RESET LPC_DATA1 FPAME LPC_DATA0 CLK_33M 20 ENX-CDD User’s Manual... -
Page 21: Sata Aux Board (Satacon2)
ENX-CDD User’s Manual 2.4.11 SATA AUX Board (SATACON2) Signal Note: To SATA AUX board. 2.4.12 Reset connector (J_RST) Signal Reset ENX-CDD User’s Manual 21... -
Page 22: Lvds Connector (Lvds1)
ENX-CDD User’s Manual 2.4.13 LVDS connector (LVDS1) Signal PIN PIN Signal DDC_CLK DDC_DATA DATA3- DATA3+ CLKN Note: CLKP DATA2- Recommend connector. DATA2+ On board LVDS connector: CSI-1171-30. Matting connector:KB901-B30H. DATA1- DATA0- DATA1+ DATA0+ 22 ENX-CDD User’s Manual... -
Page 23: Usb Connector (Jusb1)
ENX-CDD User’s Manual 2.4.14 USB connector (JUSB1) Signal +5VSB DATAN DATAP 2.4.15 Battery connector (BAT1) Signal ENX-CDD User’s Manual 23... -
Page 24: Pcie Signal Selector (J_Pcie)
ENX-CDD User’s Manual 2.4.16 PCIE signal selector (J_PCIE) Signal CLKP CLKN RESET WAKE +5VSB +5VSB +3.3V Note: For Customized add-on card, the expansion card is not included. 24 ENX-CDD User’s Manual... -
Page 25: Bios Setup
ENX-CDD User’s Manual 3.BIOS Setup ENX-CDD User’s Manual 25... -
Page 26: Introduction
If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to. Press DEL to enter setup, F11 to popup menu 26 ENX-CDD User’s Manual... -
Page 27: Using Setup
Note: Some of the navigation keys differ from one screen to another. To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. ENX-CDD User’s Manual 27... -
Page 28: Getting Help
AMI and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. 28 ENX-CDD User’s Manual... -
Page 29: Bios Setup
<Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. ENX-CDD User’s Manual 29... -
Page 30: Intel Rc Version
Note: BIOS setup screens shown in this chapter are for reference only, and may not exactly match what you see on your screen. Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 30 ENX-CDD User’s Manual... -
Page 31: Advanced Bios Settings
You can use this item to set up ACPI Configuration. Item Options Description Enables or Disables System ability Disabled, to Hibernate (OS/S4 Sleep State). Enable Hibernation Enabled[Default] This option may be not effective with some OS. ENX-CDD User’s Manual 31... -
Page 32: Cpu Configuration
Disabled, Execute Disable Bit supporting OS (Windows Server 2003 SP1, Enabled[Default], Windows XP SP2,SuSE Linux 9.2,RedHat Enterprise 3 Update 3. Disabled[Default], Limit CPUID Maximum Disabled for Windows XP Enabled 32 ENX-CDD User’s Manual... -
Page 33: Onboard Device Configuration
Disabled Enabled[Default] Enable or Disable USB 2.0(EHCI) Support. USB 2.0(EHCI) Support Disabled Enabled[Default] LAN Controller Enable or Disable OnChip NIC Controller. Disabled Enabled Enable or Disable Boot Option for Legacy Launch PXE OpROM Disabled[Default] Network Devices. ENX-CDD User’s Manual 33... -
Page 34: Usb Configuration
Maximum time the device will take before it properly reports itself to the Host Controller. “Auto” uses Auto[Default] Device power-up delay Manual default value: for a Root port it is 100ms, for a Hub port the delay is taken from Hub descriptor. 34 ENX-CDD User’s Manual... -
Page 35: Super Io Configuration
You can use this item to set up or change the Super IO configuration for FDD controllers, parallel ports and serial ports. Item Options Description Serial Port 0 Configuration Set Parameters of Serial Port0 (COMA). Enabled WatchDogTimer WatchDogTimer Setting. Disabled[Default] 3.6.2.5.1 Serial Port 0 Configuration ENX-CDD User’s Manual 35... -
Page 36: W83627Uhg Hw Monitor
IO=3F8h; IRQ=4; Select an optimal setting for Change Settings IO=3F8h; IRQ=3,4,5,6,7,9.10,11,12 Super IO device. IO=2F8h; IRQ=3,4,5,6,7,9.10,11,12 3.6.2.6 W83627UHG HW Monitor The H/W Monitor shows the operating temperature, fan speeds and system voltages. 3.6.2.7 Power Management Configuration 36 ENX-CDD User’s Manual... -
Page 37: Chipset
Select 0-23 For example enter 3 for 3am and Wake up hour 0-23 15 for 3pm. Wake up minute 0-59 Wake up second 0-59 3.6.3 Chipset Item Description Host Bridge Parameters. Host Bridge South Bridge South Bridge Parameters. ENX-CDD User’s Manual 37... -
Page 38: Host Bridge
VBIOS Default[Default] Select the Video Device which will be activated during POST. This IGFX – Boot Type has no effect if external graphics CRT+LFP present. CRT+EFP LFP+EFP Disabled Active LFP Enable or Disable LVDS. Enable LVDS[Default] 38 ENX-CDD User’s Manual... -
Page 39: South Bridge
No Limit[Default], Port1 Speed Limit GEN1 Rate Select Port1 AHCI Speed Limit. GEN2 Rate Enabled[Default], SATA Port 0 Enable or Disable SATA Port. Disabled Enabled[Default], Designates this port as Hot SATA Port 0 Hot Plug Disabled Pluggable. ENX-CDD User’s Manual 39... -
Page 40: Boot Settings
Enables or disables Quiet Boot Quiet Boot Disabled[Default] option. Enables or disables boot with initialization of a minimal set of Enabled[Default] Fast Boot devices required to launch active Disabled boot option. Has no effect for BBS boot options. 40 ENX-CDD User’s Manual... -
Page 41: Security
If only the User's password is set, then this is a power on password and must be entered to boot or enter the BIOS setup program. In the BIOS setup program, the User will have Administrator rights. By default, no password is specified. ENX-CDD User’s Manual 41... -
Page 42: Save & Exit
ENX-CDD User’s Manual 3.6.6 Save & Exit 3.6.6.1 Save Changes and Reset Any changes made to BIOS settings are stored in NVRAM. The setup program then exits and reboots the controller. 42 ENX-CDD User’s Manual... -
Page 43: Discard Changes And Reset
This option saves a copy of the current BIOS settings as the User Defaults. This option is useful for preserving custom BIOS setup configurations. 3.6.6.5 Restore as User Defaults This option restores all BIOS settings to the user defaults. This option is useful for restoring previously preserved custom BIOS setup configurations. ENX-CDD User’s Manual 43... -
Page 44: Drivers Installation
ENX-CDD User’s Manual 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. 44 ENX-CDD User’s Manual... -
Page 45: Install Audio Driver (For Realtek Alc661 Hd Audio)
4.1 Install Audio Driver (For Realtek ALC661 HD Audio) Insert the Supporting DVD-ROM to DVD-ROM drive, and it should show the index page of Avalue’s products automatically. If not, locate Index.htm and choose the product from the menu left, or... -
Page 46: Install Chipset Driver (For Integrated Cedar Trail)
4.2 Install Chipset Driver (For Integrated Cedar Trail) Insert the Supporting DVD-ROM to DVD-ROM drive, click on “start” icon and it should show the index page of Avalue’s products automatically. If not, locate the folder HTML and choose the product from the targeted folder. -
Page 47: Install Vga Driver
4.3 Install VGA Driver Insert the Supporting DVD-ROM to DVD-ROM drive, click on “start” icon and it should show the index page of Avalue’s products automatically. If not, locate the folder HTML and choose the product from the targeted folder. -
Page 48: Install Lan Driver (For Realtek 8111E Gigabit Ethernet)
4.4 Install LAN Driver (For Realtek 8111E Gigabit Ethernet) Insert the Supporting DVD-ROM to DVD-ROM drive, and it should show the index page of Avalue’s products automatically. If not, locate Index.htm and choose the product from the menu left, or link to \Driver_Network\ENX-CDD_LAN. -
Page 49: Install Ahci Driver
4.5 Install AHCI Driver Insert the Supporting DVD-ROM to DVD-ROM drive, click on “start” icon and it should show the index page of Avalue’s products automatically. If not, locate the folder HTML and choose the product from the targeted folder. -
Page 50: Install Cardreader Driver
ENX-CDD User’s Manual 4.6 Install Cardreader Driver Insert the Supporting DVD-ROM to DVD-ROM drive, and it should show the index page of Avalue’s products automatically. If not, locate Index.htm and choose the product from the menu left, or link to \Utility\Cardreader. -
Page 51: Install Cir Driver
ENX-CDD User’s Manual 4.7 Install CIR Driver Insert the Supporting DVD-ROM to DVD-ROM drive, and it should show the index page of Avalue’s products automatically. If not, locate Index.htm and choose the product from the menu left, or link to \Utility\CIR... -
Page 52: Mechanical Drawing
ENX-CDD User’s Manual 5. Mechanical Drawing 52 ENX-CDD User’s Manual... - Page 53 ENX-CDD User’s Manual Unit: mm ENX-CDD User’s Manual 53...
- Page 54 ENX-CDD User’s Manual Unit: mm 54 ENX-CDD User’s Manual...
