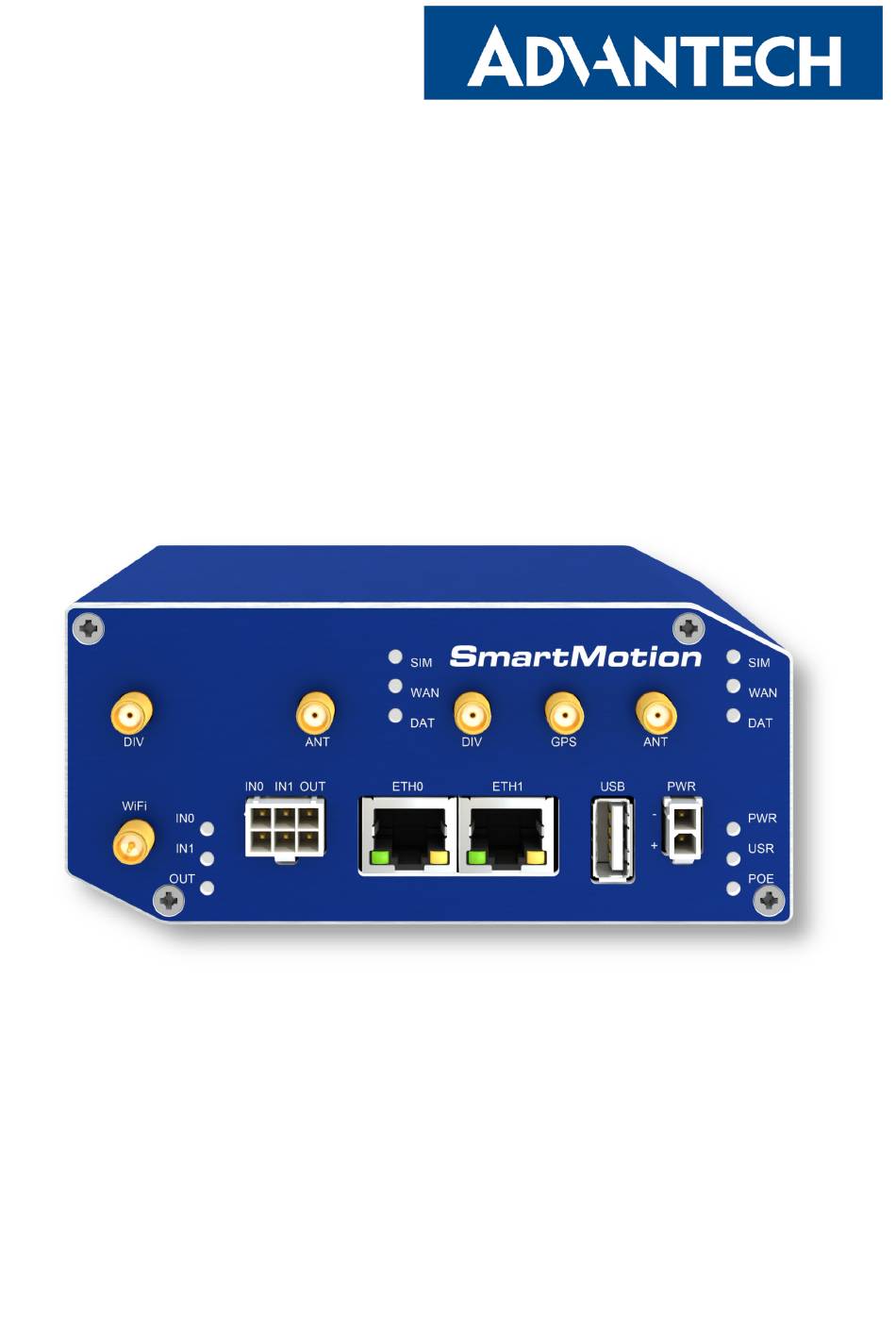

- Page 1 Hardware Manual Industrial Cellular Router SmartMotion ST352 Advantech Czech s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Document No. MAN-0011-EN, revision from 18th April, 2024.
- Page 2 © 2024 Advantech Czech s.r.o. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval system without written consent. Information in this manual is subject to change without notice, and it does not represent a commitment on the part of Advantech.
-
Page 3: Used Symbols
Used symbols Danger – Information regarding user safety or potential damage to the router. Attention – Problems that can arise in specific situations. Information – Useful tips or information of special interest. - Page 4 Contents...
-
Page 5: List Of Figures
List of Figures... -
Page 6: List Of Tables
List of Tables... -
Page 7: Router Description
1. Router Description SmartMotion ST352 is an industrial cellular router intended for wireless communication in mobile net- works that make use of LTE, HSPA+, UMTS, CDMA, EDGE or GPRS technology. The router is equipped with two independent cellular modules for backed up communication. That’s why SmartMotion router is the ideal solution for the systems with high reliability needed. -
Page 8: Usage Of The Router
• vending and dispatcher machines • telematic 1.1 Usage of the Router The router is primarily intended for these four basic situations: I. Access to the Internet from LAN Figure 1: Access to the Internet from LAN SmartMotion ST352 Hardware Manual... - Page 9 1. Router Description 1.1 Usage of the Router II. Backed up access to the Internet (from LAN) Figure 2: Backed up access to the Internet III. Secure networks interconnection or using VPN Figure 3: Using VPN tunnel SmartMotion ST352 Hardware Manual...
- Page 10 1. Router Description 1.1 Usage of the Router IV. Serial Gateway Figure 4: Serial Gateway SmartMotion ST352 Hardware Manual...
-
Page 11: Contents Of Package
• printed Quick Start Guide Leaflet. Figure 5: Contents of package Temperature range for power supply is reduced to 0 C to +40 C! These pins are designed for cables with a diameter from 0.2 to 0.8 mm SmartMotion ST352 Hardware Manual... -
Page 12: Router Design
3. Router Design 3.1 Router versions SmartMotion ST352 router is supplied in the following versions (see table below). All versions are avail- able in a metal box. All versions are available with PoE PD (Power over Ethernet – powered device) so you can power the router from both ETH0 and ETH1 interfaces, or with PoE PSE (power source equipment) so you can power other devices by the router. -
Page 13: Delivery Identification
Letter "y" – type of the router box Type of box Number "y" in code Metal Table 6: Type of router box Letter "z" – type of the power supply connector Examples of complete order code: SmartMotion ST352 Hardware Manual... - Page 14 BO, 1x microSD reader, 4x SIM reader, WiFi, PoE PD BB-ST35210020 2x LTE module, 2x ETH, 1x USB, 2x BI, 1x metal none BO, 1x microSD reader, 4x SIM reader, WiFi Table 8: Examples of order code SmartMotion ST352 Hardware Manual...
-
Page 15: Basic Dimensions Of The Router Box
• Sufficient space must be left before individual connectors for handling of cables, • For correct function of the router we recommend to use in the switch-board earth-bonding distribution frame for grounding of power supply of router, data cables and antenna. SmartMotion ST352 Hardware Manual... -
Page 16: Removal From The Din Rail
To remove the router from the DIN rail, push the router down lightly, so the bottom part of the DIN rail clip (hitched to the DIN rail) gets out of the rail and then pull out the bottom part of the router away from the DIN rail. Figure 11: Removal from the DIN rail SmartMotion ST352 Hardware Manual... -
Page 17: Description Of The Rear Panel
Connector for connection of USB devices to the router. Sup- Host ports devices with PL-2303 and FTDI USB/RS232 converters. 6-pin Connector for connection of the binary inputs and output Table 9: Front panel description Figure 12: SmartMotion front panel SmartMotion ST352 Hardware Manual... - Page 18 ETH port in the router’s Web interface, see Configuration manual [1]. Or the difference between neighbouring cells is exactly 3 dBm. Or the difference between neighbouring cells is smaller than 3 dBm. SmartMotion ST352 Hardware Manual...
- Page 19 Putting the router into LPM mode can be done using the lpm command, see Commands and Scripts application note for more details. Consumption in LPM mode may vary depending on the configuration of the router. SmartMotion ST352 Hardware Manual...
- Page 20 For connection the antenna is used SMA connector. The antenna is connected by screwing this antenna to the SMA connector on the router’s front panel (see the figure below). Figure 15: Connecting of the antenna Diversity antenna improves radio features of the router at low signal strength. SmartMotion ST352 Hardware Manual...
- Page 21 • After the click, release the card and it will pop out of its slot. • Remove the SIM card and push any other SIM card into the slot until it clicks in place. Figure 16: SIM cards SmartMotion ST352 Hardware Manual...
- Page 22 • To mount the card to to mnt directory, use the mount command: mount /dev/mmcblk0p1 /mnt For more information about the commands for creating, mounting, checking and unmounting a file system on a microSD card, see the application note for Ext4 Filesystem Utilities router app. SmartMotion ST352 Hardware Manual...
- Page 23 Router Version Insul. Strength from Router Insul. Strength between Ports Without PoE 1.5 kV 1.5 kV PoE PD 1.5 kV none PoE PSE none none Table 14: Insulation strength of Ethernet ports SmartMotion ST352 Hardware Manual...
- Page 24 15 V DC. If the input voltage is lower than 15 V DC and the PoE voltage is present (POE LED green on), the router will still be powered from the Ethernet connector via PoE. SmartMotion ST352 Hardware Manual...
- Page 25 This can be found in the LAN configuration pages (Primary for ETH0, Secondary for ETH1). When PoE PSE is enabled, you can find the current, voltage, power and power class information on the General page of the router’s Web interface; see the Configuration manual [1]. SmartMotion ST352 Hardware Manual...
- Page 26 • To mount the card to to mnt directory, use the mount command: mount /dev/sda1 /mnt For more information about the commands for creating, mounting, checking and unmounting a file system on a USB Flash Drive, see the application note for Ext4 Filesystem Utilities router app. SmartMotion ST352 Hardware Manual...
- Page 27 0 type 12 V 2 mA log. 0 max 60 V 7 mA Table 17: Characteristics of inputs The binary input status in the Shell is returned via io get bin0 or io get bin1 . SmartMotion ST352 Hardware Manual...
- Page 28 – 60 V DC / 300 mA • The current of the binary output is limited by a resettable fuse (300 mA). Binary inputs and output connections Binary inputs and output connections example: Figure 24: Binary connection SmartMotion ST352 Hardware Manual...
- Page 29 Turns off and then turns on the router Disconnect reconnect power, press the Reboot button in the web configuration Reset Restores the default configuration and Press the RST button reboots the router Table 18: Description of router reset and restart SmartMotion ST352 Hardware Manual...
-
Page 30: Connecting The Router Before First Use
Don’t forget to insert SIM card. The router can not operate without connected antenna, SIM card and power supply. If the antenna is not connected, router can be damaged. Figure 26: Router connection SmartMotion ST352 Hardware Manual... - Page 31 Configuration may be performed only by the user "root". The default password is printed on the router’s label. Change the default password as soon as possible! Figure 28: Entering login information If the router’s label does not contain a unique password, use the password "root". SmartMotion ST352 Hardware Manual...
- Page 32 After successfully entering login information user gains access to the router via his internet browser. Figure 29: Router web interface A detailed description of the router settings via the Web interface can be found in the document Config- uration manual for SmartMotion routers. SmartMotion ST352 Hardware Manual...
-
Page 33: Technical Parameters
Antenna connectors 5x SMA – 50 1x R-SMA – 50 Ohm (only for versions with WiFi module!) User interface 2x ETH Ethernet (10/100 Mbps) USB 2.0 6-pin panel socket Micro SD SDHC, SDXC Table 19: Basic parameters SmartMotion ST352 Hardware Manual... -
Page 34: Standards And Regulations
ETSI EN 301 489-1, ETSI EN 301 489-1, ETSI EN 301 489-19, ETSI EN 301 489-52, ETSI EN 301 489-17 Safety IEC 62368-1, EN IEC 62311 E-Mark E-Mark homologation number: 10R – 04 8180 National CE, UKCA compliant Table 20: Standards and Regulations SmartMotion ST352 Hardware Manual... -
Page 35: Type Tests And Environmental Conditions
-40 C / +70 C, 3 h / 3 h, 2 cycles, 3 K/min Vibration 60068-2-64 Vibration spec- Category 1 (3 axis, 8 hours ed. 2 trum A.3 (rolling per axis) stock) Shock 60068-2-27 half-sine, 50 g peak, 11 ms ed. 2 Table 21: Type tests and environmental conditions SmartMotion ST352 Hardware Manual... - Page 36 • VSWR – <2:1 (Antenna input impedance response as function of frequency. This shows the antenna resonances and its bandwidth). • SMA – 50 • For good diversity performance, the primary and secondary antennas should have different polariza- tions. SmartMotion ST352 Hardware Manual...
-
Page 37: Technical Parameters Of Gps
Tracking sensitivity is the lowest GPS signal level for which the device can still detect an in-view satellite 98 % of the time when in sequential tracking mode. Acquisition sensitivity is the lowest GPS signal level for which the device can still detect an in-view satellite 50 % of the time. SmartMotion ST352 Hardware Manual... -
Page 38: Technical Parameters Of Wifi
The binary input status in the Shell is returned via io get bin0 or io get bin1 . • Binary output parameters: – 60 V AC / 300 mA – 60 V DC / 300 mA Supported channels depends on selected Country Code. SmartMotion ST352 Hardware Manual... -
Page 39: Technical Parameters Of Power Over Ethernet (Poe)
2x 25.50 W (ETH0, ETH1) Table 27: PoE PSE parameters 5.9 Other Technical Parameters Parameter Description CPU power 2 DMIPS per MHz Flash memory 256 MB 512 MB M-RAM 128 kB Table 28: Other technical parameters SmartMotion ST352 Hardware Manual... -
Page 40: Appendix A: Troubleshooting
Also enable "Send all remaining incoming packets to default server" feature and fill in the IP address of your Web server. On the Web server, the default gateway has to be the IP address of the router. DynDNS doesn’t work. • With private APN this will not work. SmartMotion ST352 Hardware Manual... - Page 41 I switched the router to offline mode by SMS message, but the router is in online mode after reboot. • SMS messages do not change the router configuration. They remain in effect only until the router is rebooted. SmartMotion ST352 Hardware Manual...
- Page 42 Web interface in "Configuration" section, "Services", "SSH". Then connect with any SSH client on port 22 of the router. User and password is the same as for the Web interface. Telnet on v2 routers can be enabled here: "Configuration" section, "Services", "Telnet". SmartMotion ST352 Hardware Manual...
-
Page 43: Appendix B: Customer Support
+1-800-346-3119 (Monday – Friday, 7 a.m. to 5:30 p.m. CST) Fax: +1-815-433-5109 E-mail: support.iiot.ana@advantech.com Web: www.advantech.com Customer Support for Asia Phone: +886-2-2792-7818 #1299 (Monday – Friday, 9 a.m. to 5:30 p.m. UTC+8) Fax: +886-2-2794-7327 E-mail: icg.support@advantech.com.tw Web: www.advantech.com SmartMotion ST352 Hardware Manual... -
Page 44: Appendix C: Regulatory & Safety Information
At the end of it’s life this pro- duct MUST NOT be mixed with other commercial waste for disposal. The device contains a battery. Remove the battery from the device before disposal. The battery in the device needs to be disposed of apart accordingly. Check the terms and conditions of your supplier for disposal information. SmartMotion ST352 Hardware Manual... -
Page 45: Appendix D: Related Documents
Appendix D: Related Documents Configuration Manual for SmartMotion Routers [EP] Product-related documents and applications can be obtained on Engineering Portal at https://icr.advantech.com/download address. SmartMotion ST352 Hardware Manual... - Page 46 We, Advantech Czech s.r.o., declare that the radio equipment narrated in this user’s manual complies with Radio Equipment Regulations 2017 (S.I. 2017 No. 1206). We, Advantech Czech s.r.o., declare that the radio equipment narrated in this user’s manual complies with Directive 2014/53/EU.
