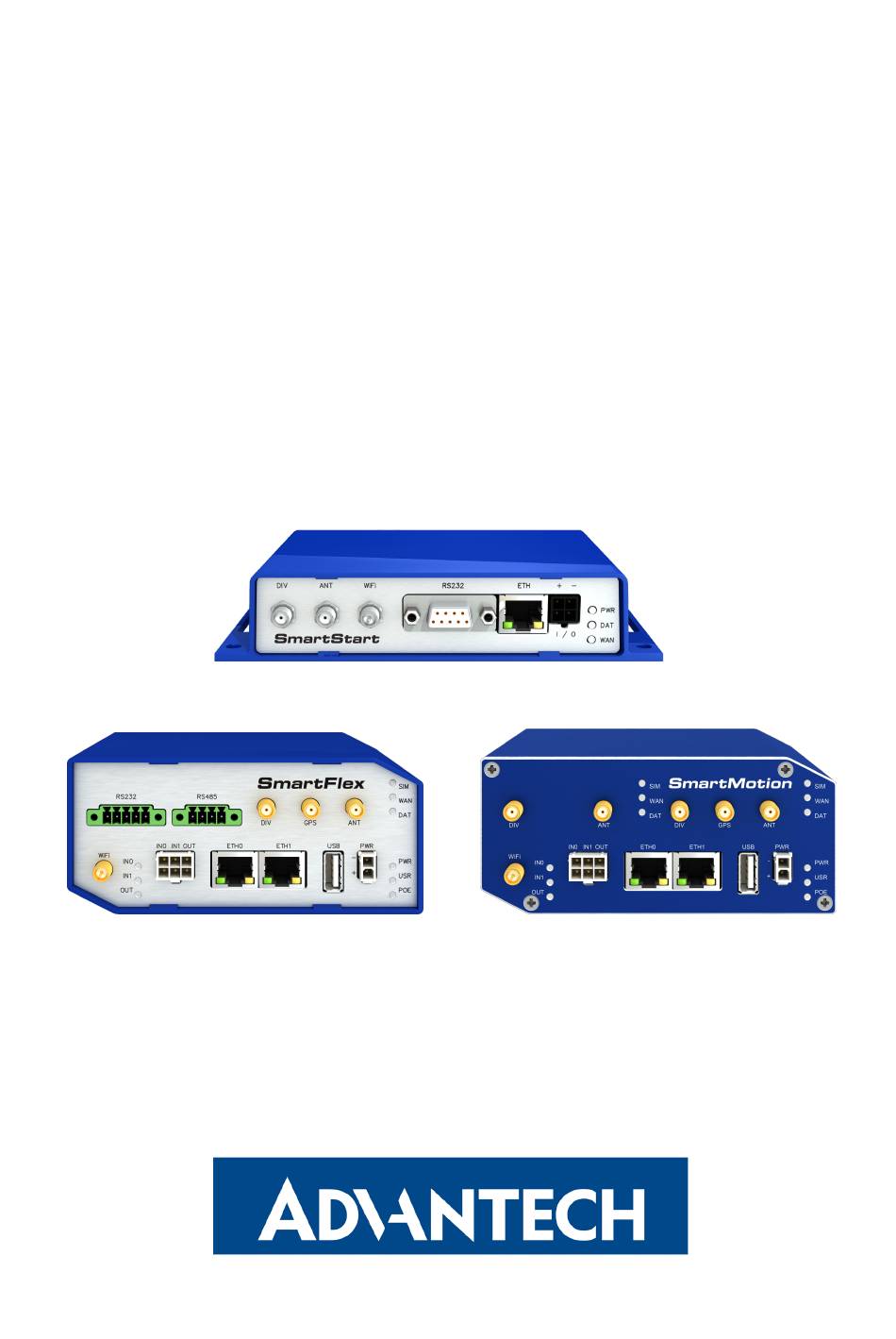

- Page 1 Start Guide SmartStart, SmartFlex, SmartMotion...
-
Page 2: Safety Instructions
Start Guide Safety instructions Please take care to following instructions: Use the router in compliance with national and international law and in compliance with any special or additional restrictions regulating the use of the router in various applica- tions and environments. To avoid possible injury and/or damage to the device, observe the relevant provisions and standards. -
Page 3: Product Disposal Instructions
flash drive medium. If you are interested in obtaining the source, please get in touch with us at: techSupport@advantech-bb.com Modifications and debugging of LGPL-linked executables: The device manufacturer hereby grants the right to use debugging techniques (e.g., de- compilation) and making customer modifications of any executable linked with an LGPL library... - Page 4 Start Guide QSG-0002-EN, March 3, 2022 Released in the Czech Republic...
- Page 5 SmartStart SmartStart Router SL302, SL304, SL305, SL306 QSG-0002-EN, March 3, 2022 Released in the Czech Republic...
-
Page 6: First Use
SmartStart First Use Before applying power to the router, connect all the components you need for your appli- cations. Do not run the router without an antenna connected to the main antenna connector. The energy from the transmission is effectively reflected by the open end and can damage the equipment. - Page 7 SmartStart Disconnect the router from the power supply before handling the SIM card! 3. Power The router requires an external DC power supply. The DC voltage required is between +9 and +36 V DC. The router has built-in protection against reverse polarity without signaling. Connect the power supply cable to the PWR connector on the router’s front panel;...
- Page 8 SmartStart 4. Ethernet For an initial configuration made in a web browser, connect a PC by an Ethernet cable to the default LAN interface, use the ETH port; see the figure above. By default, this interface has the following configuration: Connector Purpose Default Setting...
- Page 9 We, Advantech Czech s.r.o., declare that the radio equipment type SL305 comply with Directive Radio Equipment Regulations 2017 (S.I. 2017 No. 1206). We, Advantech Czech s.r.o., declare that the radio equipment type SL304 and SL305 comply with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: icr.advantech.cz/eudoc...
- Page 10 SmartFlex SmartFlex Router SR300, SR303, SR304, SR305, SR306, SR307, SR308, SR309, SR310 QSG-0002-EN, March 3, 2022 Released in the Czech Republic...
-
Page 11: Hazardous Locations Installation Instructions
SmartFlex Hazardous Locations Installation Instructions These instructions apply for SR300, SR303 and SR305 versions with appropriate labeling only! These devices are open-type devices that are to be installed in an enclosure suitable for the environment and can only be accessed with the use of a tool or key. This equipment is suitable for use in Class I, Division 2, Groups A, B, C, AND D OR non- hazardous locations only. - Page 12 SmartFlex 1. Antenna Use SMA connectors to connect the antennas to the router; see the figure below. The main antenna is connected to the ANT connector. Next, connect the second diversity antenna to the DIV connector to improve the quality and reliability of a wireless link. 2.
- Page 13 SmartFlex 3. Power The router requires an external DC power supply. The DC voltage required is between +10 to +60 V DC. The router has built-in protection against reverse polarity without signaling. Connect the power supply cable to the PWR connector on the router’s front panel; see the figure below.
- Page 14 firmware intended for a different device may cause the device’s malfunction. Support All product-related manuals, documents, and software can be found and downloaded on the website at icr.advantech.cz/download address. QSG-0002-EN, March 3, 2022 Released in the Czech Republic...
- Page 15 Electromagnetic Compatibility Regulations 2016 (S.I. 2016 No. 1091 and S.I. 2016 No. 1101). We, Advantech Czech s.r.o., declare that the radio equipment type SR300 (WiFi ver- sion), SR303, SR304, SR305, SR306, SR307, and SR310 comply with Directive 2014/53/EU. Furthermore, SR300 (non-WiFi version) complies with the essential re- quirements and other relevant provisions of Directives 2014/30/EU and 2014/35/EU.
- Page 16 SmartMotion SmartMotion Router ST352, ST355 QSG-0002-EN, March 3, 2022 Released in the Czech Republic...
- Page 17 SmartMotion First Use Before applying power to the router, connect all the components you need for your appli- cations. You cannot operate the router without a connected antenna, inserted SIM card, nor a connected power supply. Do not run the router without an antenna connected to the main antenna connector. The energy from the transmission is effectively reflected by the open end and can damage the equipment.
- Page 18 SmartMotion Before handling the SIM card disconnect the router from the power supply! 3. Power The router requires an external DC power supply. The DC voltage required is between +10 to +60 V DC. The router has built-in protection against reverse polarity without signaling. Connect the power supply cable to the PWR connector on the router’s front panel;...
- Page 19 Support All product-related manuals, documents, and software can be found and downloaded on the website at icr.advantech.cz/download address. If the label does not contain a unique password, use "root" string as the password. QSG-0002-EN, March 3, 2022 Released in the Czech Republic...
- Page 20 Directive Radio Equipment Regulations 2017 (S.I. 2017 No. 1206). We, Advantech Czech s.r.o., declare that the radio equipment type ST352 and ST355 comply with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: icr.advantech.cz/eudoc...
