Wine Guardian D088 Installation, Operation And Maintenance Manual page 34

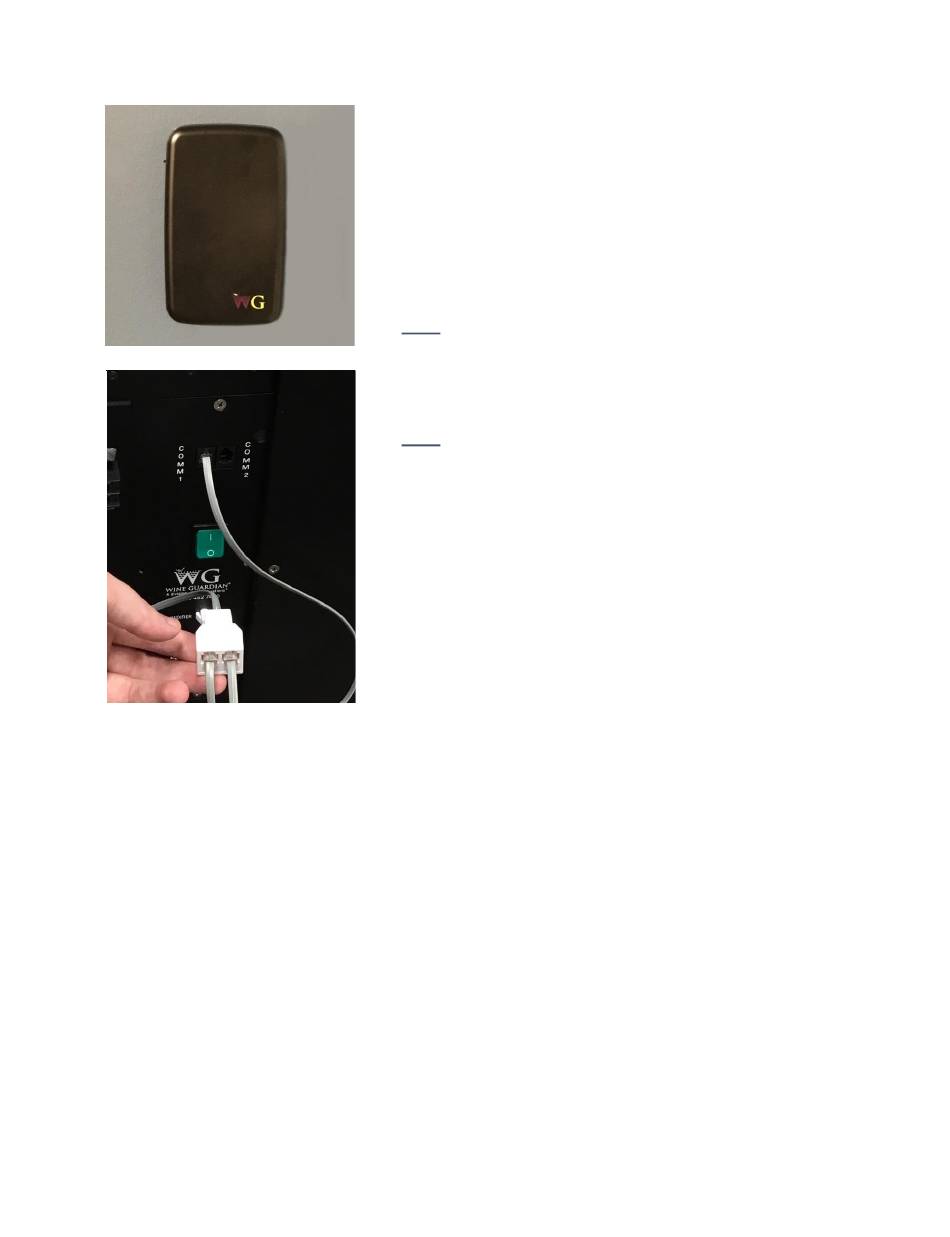

Fig. 4
Fig. 5
5. Plug in the communication cable to the remote
sensor and mount the Remote Sensor to the wall. (Fig. 3)
Reattach the sensor's faceplate (Fig. 4)
6.
7. If multiple sensors are being used either connect each Sensor
to each other in series using RJ9 cable or purchase a RJ9
Splitter (Fig. 5) to be connected to the unit.
Note: Remote Sensor's will always be treated as "enabled" when
hardwired. Their temperature and humidity readings will always
be calculated towards the average by the system.
Note: if the Remote Interface Controller will be located outside the
wine room, then change setting 30 to either 3 or 4 to disable its
sensors. This will help reduce the possibility of incorrect
readings.
34
