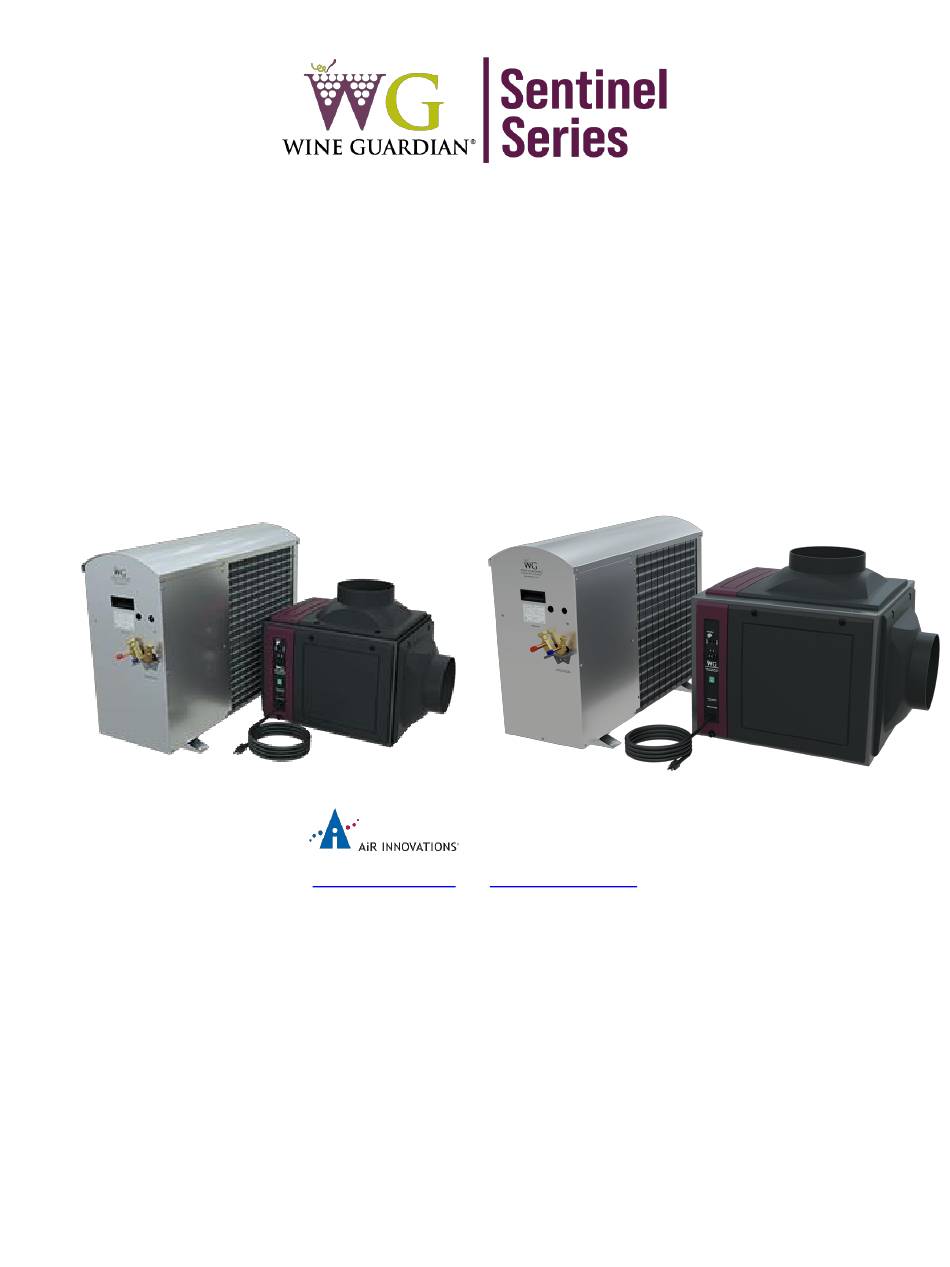

Wine Guardian Sentinel Series Installation, Operation And Maintenance Manual

Ducted split wine cellar cooling systems

Hide thumbs Also See for Sentinel Series:

Installation, operation and maintenance manual (72 pages)

Quick start installation manual (24 pages)

Quick start installation manual (40 pages)

Table Of Contents

Quick Links

Download this manual

Ducted Split

Wine Cellar Cooling Systems

Installation, Operation and Maintenance Manual

60Hz Models: DS025, DS050, DS088, DS200

50Hz Models: WGS40, WGS75, WGS100, WGS175

Manufactured by

Syracuse, NY

wineguardian.com

airinnovations.com

Wine Guardian reserves the right, without notice, to make changes to this document at its sole discretion.

Please visit our web site for the most current version of the Wine Guardian manual and other literature.

Wine Guardian is a registered trademark (2,972,262) of Air Innovations, Inc.

Edition 1/2024 (Original Instructions)

15H0326-00

Part No.

REV: D

Table of Contents

Need help?

Do you have a question about the Sentinel Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Wine Guardian Sentinel Series

Page 1 Wine Guardian reserves the right, without notice, to make changes to this document at its sole discretion. Please visit our web site for the most current version of the Wine Guardian manual and other literature. Wine Guardian is a registered trademark (2,972,262) of Air Innovations, Inc.
Page 2: Table Of Contents
Table of Contents Safety ................................5 Lockout/Tagout Procedure ........................ 6 Safety Warnings ........................... 6 Receiving, Inspecting and Unpacking ....................6 Directory of terms ............................ 7 General Overview ............................. 8 Accessories/Options ......................... 10 Component Overview ........................12 Overview of the Evaporator ......................13 Overview of the Condenser ......................
Page 3 Controller Specification........................ 38 Mounting the Remote Interface Controller (Wired) ............... 39 Mounting the Remote Interface Controller (Wireless) ............40 Installation of the Wine Guardian Remote Sensor ..............41 Mounting the Remote Sensor (Wired) ..................41 Mounting the Remote Sensor (Wireless) ................. 43 Remote Sensor Pairing –...
Page 4 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 5: Safety
When performing maintenance, always use the Lockout/Tagout procedure, which is described in this chapter. Observe the maintenance safety guidelines in the Wine Guardian Manual. Electrical Hazards - Working on the equipment may involve exposure to dangerously high voltage. Make sure you are aware of the level of electrical hazard when working on the system.
Page 6: Lockout/Tagout Procedure
When receiving the unit, ensure the unit is undamaged and includes all ordered accessories. Note: Wine Guardian units are factory assembled and tested prior to shipment. Wine Guardian units are shipped in individual corrugated boxes. ✓ Lift only at the designated handhold locations or fully support from underneath. A shipment may include one or more boxes containing accessories.
Page 7: Directory Of Terms
Review the Packing Slip to verify: ✓ Model # ✓ Factory Installed Options ✓ Unit Accessories If any items listed on the packing slip do not match your order information, contact the place of purchase immediately. Check the unit for the following: ✓...
Page 8: General Overview
All wiring complies with NEC. Each Wine Guardian fan coil section is furnished with a sealed, UL-approved power cord and plug. All Wine Guardian 50Hz units carry the CE mark. Each unit is furnished with a sealed, CE-approved power cord.
Page 9 ✓ Low ambient refrigeration controls (see page 10 for Extreme Climate Protection option). The Wine Guardian 60Hz models meets or exceeds its rated capacities for total BTU/H and CFM at design cellar conditions and external static pressures. The Wine Guardian 50Hz models meets or exceeds its rated capacities for total watts and cubic liters per second at design cellar conditions and external static pressures.
Page 10: Accessories/Options
Extreme Climate Protection This bundle includes both a factory-installed Low-Ambient-, and a factory-installed High- Ambient upgrade. Low-Ambient protection makes the Wine Guardian capable of exposure to low ambient temperatures. This feature controls the condenser fan operation based on head pressure and heats the oil reservoir, including a 3R Condenser Fan.
Page 11 Instructions. Duct Collar Kits Ductwork for the Wine Guardian system is sold in kits by size for each unit. Each kit contains two adapter collars, one 25-foot (7.3 meters) length of round flexible duct, and two straps. The number of duct kits needed depends on the installation layout. The size of the ductwork kit depends on the selected model of Wine Guardian system.
Page 12: Component Overview
Component Overview Cabinet – The cabinet (outer housing) is constructed of aluminum with a powder-coated finish for corrosion protection. Condensing Section – Ambient air is circulated through the condenser section by a direct drive, permanently lubricated, motorized impeller blower. This section also contains the compressor.
Page 13: Overview Of The Evaporator
Overview of the Evaporator DS025, WGS40 Evaporator Fig.1...
Page 14 DS050, WGS75, DS088, WGS100, DS200, WGS175 Evaporator Fig.2...
Page 15: Overview Of The Condenser
Overview of the Condenser Fig. 3...
Page 16: Refrigeration Illustration
Refrigeration Illustration Fig. 4...
Page 17: Wiring Diagram For Ds025, Ds050, Wgs40, Wgs75, Wgs100 Evap
Wiring Diagram for DS025, DS050, WGS40, WGS75, WGS100 Evap Fig. 5...
Page 18: Wiring Diagram For Ds025, Ds050, Wgs40, Wgs75, Wgs100 Cond
Wiring Diagram for DS025, DS050, WGS40, WGS75, WGS100 Cond Fig. 6...
Page 19: Wiring Diagram For Ds025, Ds050, Wgs40, Wgs75, Wgs100 Control Board
Wiring Diagram for DS025, DS050, WGS40, WGS75, WGS100 Control Board Fig. 7...
Page 20: Wiring Diagram For Ds088, Wgs100 Evap
Wiring Diagram for DS088, WGS100 Evap Fig. 8...
Page 21: Wiring Diagram For Ds088, Wgs100 Cond
Wiring Diagram for DS088, WGS100 Cond Fig. 9...
Page 22: Wiring Diagram For Ds200, Wgs175 Evap
Wiring Diagram for DS200, WGS175 Evap Fig. 10...
Page 23: Wiring Diagram For Ds200, Wgs175 Cond
Wiring Diagram for DS200, WGS175 Cond Fig. 11...
Page 24: Specifications
Specifications Wine Guardian Specification Sheet – 60Hz models...
Page 25 Wine Guardian Specification Sheet – 50Hz models...
Page 26: Installation
Install Fan-Coil Floor Mounting - Mount the Wine Guardian fan coil on the floor but elevate it 4” (10cm) as a minimum on a frame with a plywood surface to keep it away from water. Allow adequate space for the external drain.
Page 27: Reducing Noise Generation
Ceiling Mounting - Construct a structurally sound, level platform to place the Evaporator on when hanging it from the ceiling joists. The Wine Guardian fan coil is NOT designed to be suspended from the top of the unit; it must be supported from the bottom.
Page 28 Use ductwork on the condenser section to redirect or absorb sound, to bring in outside air to the unit inlet, and/or to exhaust the hot air out of the ambient space. Ductwork Diameters (inches) – Wine Guardian 60 Hz units Model...
Page 29: Duct Collar And Panel Adjustment
Duct Collar and Panel Adjustment To replace or adjust the locations of the panels and Supply Collar please see the instructions below: 1. Determine which panel needs to be replaced (Fig 1). 2. Use a flat blade screwdriver, coin, or other suitable tool at the captive fastener (Fig 2).
Page 30: Drain Line
Do NOT install an external trap on the drain line, every ducted Wine Guardian unit is built with an internal trap. Allow enough height for the drain line to function properly. If draining into a nearby sink, the unit must be elevated higher than the rim of the sink in order for the water to drain by gravity.
Page 31 Do NOT modify the plugs in any way. Do NOT use extension cords. Depending on the model, the electrical power supply must be either 115-volt or 230-volt AC, 1 phase, 60 cycle, and the electrical power cannot vary more than ±4% or damage may occur to the unit.
Page 32: Installing The Condensing Unit
Installing The Condensing Unit • Condensing units are factory assembled with an anodized aluminum outdoor enclosure for protection from the elements. • A minimum of 12” (30cm) is required around the perimeter of the condensing unit for proper airflow across the coil and to provide an adequate discharge airflow path. Any obstructions to this airflow will result in a decrease in performance and possibly premature failure due to a buildup of high pressure within the system.
Page 33: Refrigerant Line-Sets
Refrigerant Line-Sets 60 Hz Models Liquid Suction Min. Connection Connection Suction Maximum Liquid Line Suction Maximum “Total” Line Model # Line (OD) Line (OD) Lift (height) Evaporator Evaporator Insulation Length (OD) (OD) Thickness 1/4” 1/4” 3/8” 3/8” 3/8” DS025 DS050 1/4"...
Page 34: Sample Line Set Configurations
Sample line Set Configurations Leak Checking and Evacuation Process • Pressurize and leak test the interconnecting lines, including the fan coil unit, fittings, and brazed joints using the intended operating refrigerant, nitrogen, or dry air for leak testing. A pressure equal to the low-side test pressure marked on the unit nameplate is recommended for leak testing.
Page 35: Wiring The Condenser
optimal charging. Refer to page 57 of this manual for correct refrigerant charging based on your interconnect length. Charge the system with the correct amount of refrigerant and mark the amount with a ballpoint pen in the space provided on the unit nameplate.
Page 36 • The condensing unit needs to be hardwired. To bring the rated high voltage to the factory-installed contactor in the chassis cabinet to line side (L1 & L3) of the contactor. Use table 1 to identify the minimum recommended AWG, USE COPPER WIRE ONLY.
Page 37: Installing The Remote Interface And Communication Cable
IMPORTANT Whenever possible we strongly suggest wiring the Remote Interface Controller directly to the Wine Guardian unit to avoid periodic battery changes and uninterrupted service. Wired (recommended) – wired directly to the Wine Guardian unit through an RJ-9 communication cable. 50’ (15.25 m) of control cable is included with each controller with longer lengths available as an option.
Page 38: Additional Remote Interface
Additional Remote Interface Prior to adding an additional remote interface to the system, you will have to change setting 30 on the first controller to give it a different address. Refer to page 45 for instructions on how to access the interface settings and get to Setting 30 (shown on page 50). Controller Specification WG only, single stage cooling or heating Application...
Page 39: Mounting The Remote Interface Controller (Wired)
Mounting the Remote Interface Controller (Wired) 1. Remove the comm cable from the zip lock bag and attach it to the side of the Wine Guardian unit (Fig. 1). a. Route the communication cable within the wall and/or ceiling structure of the wine cellar to the desired controller mounting location.
Page 40: Mounting The Remote Interface Controller (Wireless)
Mounting the Remote Interface Controller (Wireless) 1. Plan on mounting the remote interface controller on a solid surface away from doors, corners, air outlets, drafts or heat generating equipment. Do not mount the remote interface controller directly on an outside wall, a wall adjacent to a boiler room, or other hot area.
Page 41: Installation Of The Wine Guardian Remote Sensor
Mounting the Remote Sensor (Wired) 1. Disconnect the communication cable from the side of the Wine Guardian unit and the remote sensor. Route the communication cable within the wall and/or ceiling structure of the wine cellar to the desired controller mounting location.
Page 42 Plug in the communication cable to the remote sensor and mount the Remote Sensor to the wall. (Fig. 3) Reattach the sensor’s faceplate (Fig. 4) If multiple sensors are being used either connect each Sensor to each other in series using RJ9 cable or purchase a RJ9 Splitter (Fig.
Page 43: Mounting The Remote Sensor (Wireless)
Mounting the Remote Sensor (Wireless) 1. Disconnect the controller wire from the side of Wine Guardian unit and save for future use. 2. Plan on mounting the remote sensor on a solid surface away from doors, corners, air outlets, drafts or heat generating equipment.
Page 44: Remote Sensor Pairing - Multiple Sensors (Wireless)
Remote Sensor Pairing – Multiple Sensors (Wireless) If using multiple remote temperature/humidity sensors in your application, refer to the figures and the procedure below to change each remote sensor’s device number (Three Remote Sensors maximum). Each Remote Sensor must have its own device number and must also be on the same RF channel (Setting 31) as the system they are being paired with.
Page 45: Remote Interface Functions
“Humidity” setpoint. • Press the “Up” or “Down” arrows to adjust the humidity to the desired set point. Note: A Wine Guardian humidifier must be installed and Setting 6 set to “1” or “2” before the controller will let you change percent humidity.
Page 46 Setting 6. • Press the “Up” or “Down” arrow buttons to adjust to the desired setpoint. Factory default is zero (0). Zero (0) = No humidifier One (1) = Integral Wine Guardian mounted humidifier Two (2) = Stand-alone remote mounted humidifier...
Page 47 5 minutes. Compressor anti-short cycling time is the amount of allowable time between compressor stop and restart. Rapid start/stop of compressors can cause premature failure. WINE GUARDIAN DOES NOT RECOMMEND SETTINGS LOWER THAN FACTORY DEFAULT. Defrost Setting 9 sensor •...
Page 48 Defrost cut- Setting 11 • Press "Settings" button to advance to temperature Setting 11. • Press the “Up” or “Down” arrow buttons to adjust to the desired setpoint. This setting is adjustable from 35°F to 50°F. Factory default is 40°F. Note: This setpoint must be 1°F/°C higher than setting 10.
Page 49 RH offset Setting 14 • Press “Settings” button to advance to Setting 14 • Press the “Up” or “Down” buttons to adjust to the desired setpoint. This setting allows the adjustment of %RH reading by +/-10%. Factory default is 0%RH. Differential Setting 15 temperature...
Page 50 System type Setting 20 defaults System setting. DO NOT CHANGE. Reserved Settings 21-29 Reserved for additional fields. Define remote Setting 30 • Press “Settings” button to advance to user interface Setting 30 • Press the “Up” or “Down” buttons to adjust to the desired setpoint.
Page 51 Setting 41 Thermistor 2 • Press “Settings” button to advance to No Longer Setting 41. Not Available Applicable Reserved for Thermistor Setting 42 Thermistor 3 • Press “Settings” button to advance to No Longer Setting 42. Not Available Applicable Reserved for Thermistor Setting 43 Thermistor 4 •...
Page 52: Alarm Codes
Setting 71 Default %RH • Press “Settings” button to advance to Setting 71. No setting adjustment. Initial relative humidity set point. Will revert to this setting upon loss of power. Setting 72 Default mode • Press “Settings” button to advance to Setting 72.
Page 53 Low humidity alarm Flashing humidity number along with (!) symbol will remain on screen until Flashing humidity humidity rises above the Low Humidity number Alarm set point (Setting 4). !1 = High Pressure THIS ALARM FORCES THE SYSTEM Switch Fault TO SHUT DOWN (!1) will remain on screen until the High Pressure reset switch has been reset.
Page 54: Start-Up
Start-Up Prior to charging the system and start-up ensure the system has been powered for at least 24 hours. This is required so the compressor’s crankcase heater has ample time to warm the system to avoid premature failure. Then proceed to charging the system. Refrigerant Charging Note: Models DS, and WGS utilize a Headmaster control valve to control head pressure at low ambient applications, therefore require a specific initial charging procedure as...
Page 55 Charging of Systems with Head Pressure Control in temperatures below 70°F (21°C) (After normal evacuation procedures): 1. You must power the condensing unit for up to 24hrs prior to charging the system to allow the system to energize. This will allow the compressor’s oil crankcase to warm.
Page 56 If you are not sure how to measure superheat or sub-cooling: Superheat • Get an accurate suction line temperature on the suction line as close to the compressor inlet as possible. At the same time, attach a compound pressure gauge set to the system to read the low-side suction pressure at the suction service valve port (back seated valve stem to allow unrestricted refrigerant flow from evaporator back to the compressor).
Page 57: Charge Amount
Charge Amount:...
Page 58: Split System Operations Chart
Split System Operations Chart Operation data is based on typical wine cellar conditions 57°F (14 Deg C) DB/49°FWB (55%RH) 60Hz Models DS025 OD Ambient (F) Suction (psig) Discharge (psig) Suction Sub-cooling (F) Superheat (F) 10 ºF / -12 ºC 7 ºF / 3.89 ºC 23 ºF / 12.78 ºC 40 ºF / 4 ºC 13 ºF / 7.22 ºC...
Page 59: Final Start-Up
50Hz Models WGS40 OD Ambient (F) Suction (psig) Discharge (psig) Suction Sub-cooling (F) Superheat (F) 10 ºF / -12 ºC 6 ºF / 3.33 ºC 17 ºF / 9.44 ºC 40 ºF / 4 ºC 12 ºF / 6.67ºC 26 ºF / 14.44 ºC 60 ºF / 15 ºC 19 º...
Page 60 During the initial start-up, the unit may run continuously for several hours, up to a day or more, while it lowers the cellar temperature. Once the unit reaches the set point temperature, it shuts off and starts to cycle on and off as it continues to lower the bottle temperature to the set point.
Page 61 WG SPLIT SYSTEM START-UP CHECKLIST System Information Fan Coil Serial Number: Condenser Serial Number: (Located to the right of the main control panel) (Label located near refrigerant piping) Customer Information First Name: Last Name: Address: City: State: Zip: Date of Purchase: Email: Phone #: Installer Information...
Page 62 Pre-Start-Up Is there any shipping damage? If so, Where? Will this damage prevent unit start-up? Check power supply. Does it agree with unit? Has the ground wire been connected? Has the circuit protection been sized and installed properly? Are the power wires to the unit sized and installed properly? Have compressor hold down bolts been loosened (snubber washers are snug, but not tight)? Controls...
Page 63: Maintenance
Risk of Serious Injury Sharp Edges are present on the fan wheels, housing, fins, and coils Maintenance on Wine Guardian units requires working with high voltage and sheet metal with possible sharp edges. Only qualified personnel should perform maintenance. Some tasks require knowledge of mechanical and electrical methods. Make sure you are familiar with all hazards, general safety related procedures, and safety labels on the unit.
Page 64: Cleaning The Humidifier (Optional)
4. Shake off excess water. 5. Inspect and clean the face of the coil. Sharp edges are present on the fins and coils. 6. Reinstall the filter. 7. Replace the duct collar. The condensate drain system traps dust and dirt. Clean the drain system once a year. 1.
Page 65: Maintenance Schedule
pressure within a fixed range. The amount of cycling (frequency and duration) depends on the air temperature. The colder the air, the more frequent the cycling and with a longer duration. Maintenance Schedule Monthly (or quarterly depending on experience with cellar) •...
Page 66: Troubleshooting
Resetting the High-Pressure Switch High-Pressure Switch Has Shut Down the Unit Every Wine Guardian unit has a manual reset high-pressure switch in the refrigeration system. This switch shuts the compressor and condenser down if the head pressure in the system is too high. It is intended to protect the compressor. Restricted airflow through the condenser is the most common reason for the pressure to become too high.
Page 67 3. Push the button until it locks into position. 4. Push the rocker switch to restart the unit. Fig. 1 Please see the link below for a video on how to reset the High-Pressure Switch https://www.youtube.com/watch?v=TFGFTWZVeAs...
Page 68: Contact And Warranty
Contact and Warranty GENERAL Wine Guardian warrants, to the original buyer, its goods, and all parts thereof to be free from defects in material and workmanship for a period of two (2) years from the date of invoicing assuming NORMAL USE AND SERVICE.
Page 69: Contact Information
Warranty The Wine Guardian unit serial number is noted on all packing lists and bills of lading and, along with shipping date, is kept on file at Wine Guardian for warranty purposes. All correspondence regarding warranty must include the model number and serial number of the unit involved.
Page 70 North Syracuse, New York, 13212 Attn: Service Department This procedure includes but is not limited to Obtaining authorization from Wine Guardian prior to incurring any charges for repair or replacement under warranty. Or returning prepaid within 30 days any and all defective parts.
