DESCRIPTION
Demonstration circuit 1496A-A (Figure 1) features the
LTC
®
2941. Demonstration circuit 1496A-B features the
LTC2942. Both devices measure battery charge state
in handheld PC and portable product applications. The
operating range is perfectly suited for single cell Li-Ion
batteries. A precision analog coulomb counter integrates
current through a sense resistor between the battery's
positive terminal and the load or charger. The LTC2942 adds
battery voltage and on-chip temperature measurement
with an internal 14-bit No Latency ΔΣ™ ADC. The three
measured quantities (charge, voltage and temperature)
are stored in internal registers accessible via the onboard
2
SMBus/I
C interface.
The LTC2941 has programmable high and low thresholds
for accumulated charge. The LTC2942 has programmable
high and low thresholds for all three measured quantities.
If a programmed threshold is exceeded, the device reports
an alert using either the SMBus alert protocol or by setting
a fl ag in the internal status register.
DEMO MANUAL DC1496A-A/B
Battery Gas Gauge with I
Interface [and 14-Bit ADC
The LTC2941 and LTC2942 require only a single low value
sense resistor to set the measured current range. The
default value assembled on the DC1496 is 100mΩ for a
maximum current measurement of 500mA. Both parts
have a software-confi gurable charge complete/alert pin.
When the pin is set for charge complete, a jumper con-
nects the pushbutton which simulates a logic high input
to indicate a full battery. When the pin is confi gured for
alert, the same jumper is used to connect a red LED that
indicates an alert is present.
The DC1496A-A/B is a part of the QuikEval system for quick
evaluation with a host controller through a PC.
Design fi les for this circuit board are available at
http://www.linear.com/demo.
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and
No Latency ΔΣ is a trademark of Linear Technology Corporation. All other trademarks are
the property of their respective owners.

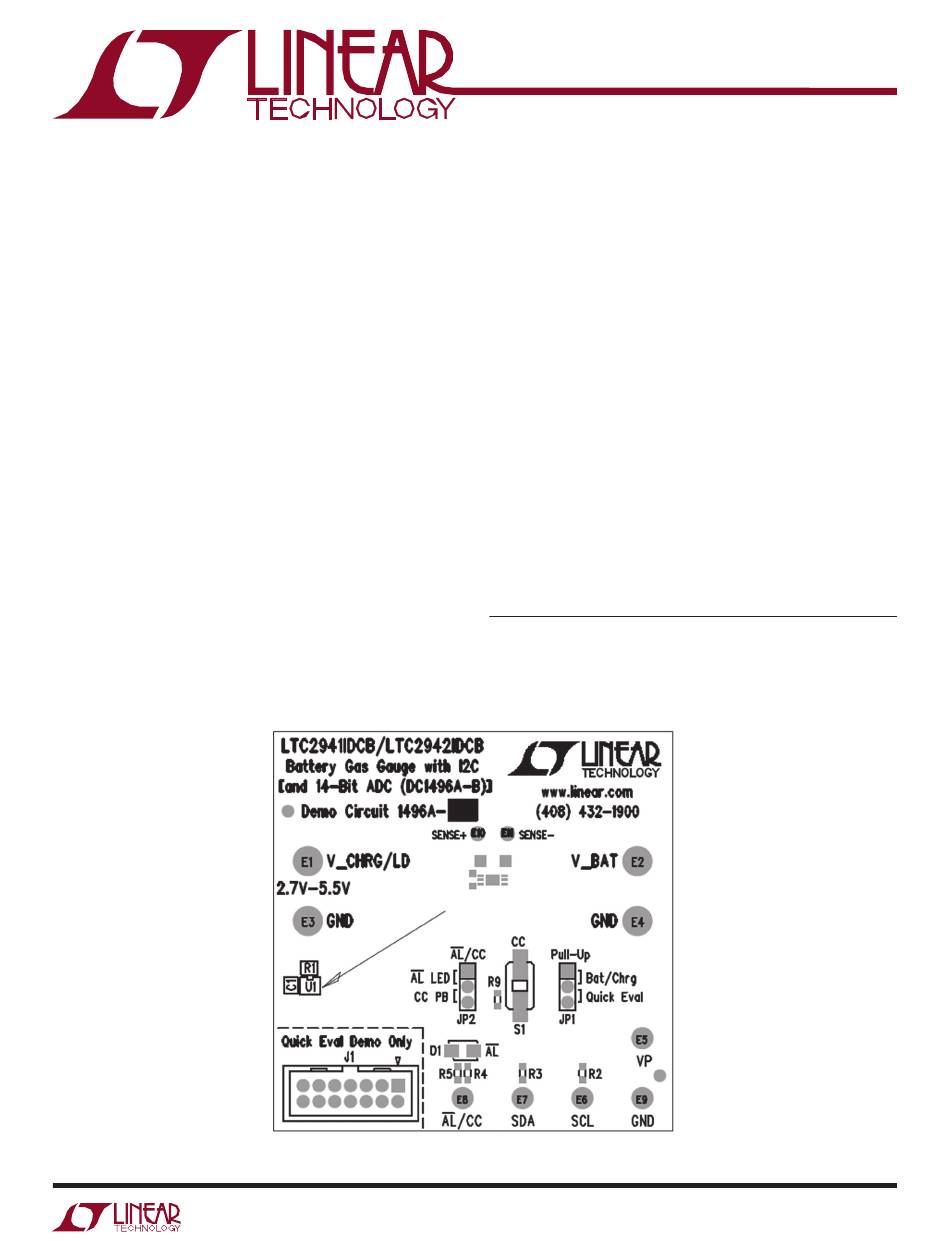

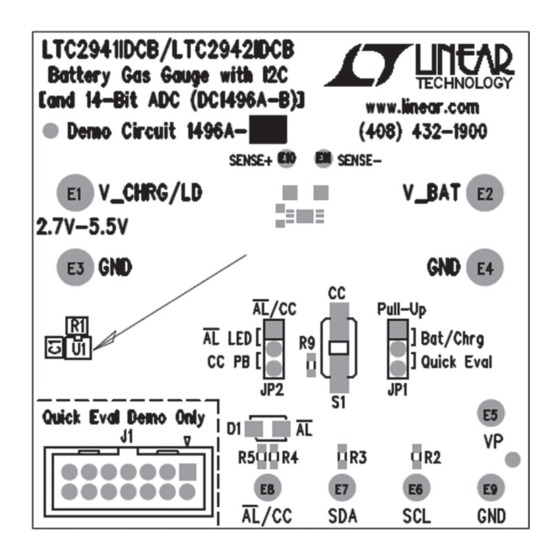

Figure 1. DC1496A-A/B
LTC2941/LTC2942:
(DC1496A-B)]
2
C
dc1496f
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1496A-A and is the answer not in the manual?

Questions and answers

Summary of Contents for Linear Technology 1496A-A

  • Page 1 The LTC2942 has programmable L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and high and low thresholds for all three measured quantities. No Latency ΔΣ is a trademark of Linear Technology Corporation. All other trademarks are If a programmed threshold is exceeded, the device reports the property of their respective owners.
  • Page 2: Quick Start Procedure

    DEMO MANUAL DC1496A-A/B QUICK START PROCEDURE Demonstration circuit 1496A is easy to set up to evaluate 4. Connect a DC590 to 14-pin connector J1 for evaluation the performance of the LTC2941/LTC2942. Refer to Figure with QuikEval, or connect a host controller I C bus to 2 for proper measurement equipment setup and follow the SDA, SCL and GND test turrets.
  • Page 3 DEMO MANUAL DC1496A-A/B QuikEval INTERFACE The DC1496A-A/B can be connected to a DC590 and used LTC2941 and LTC2942 Display with the QuikEval software. The DC590 connects to a PC On a refresh or poll, the software reads Status bit A[7] to through USB.
  • Page 4 DEMO MANUAL DC1496A-A/B QuikEval INTERFACE Address/I C Status Control The write address for the LTC2941/LTC2942 is C8h and the Confi gurations done in the Control section write to the read address is C9h. The alert response address (ARA) is Control register (register B). For the LTC2941, the Control 19h.
  • Page 5 DEMO MANUAL DC1496A-A/B QuikEval INTERFACE Calculator Tool Switching back and forth between Hex and Unit can be used as a conversion tool. A calculator tool is available in the tool bar options under Tools. In this calculator (Figure 4), enter the maximum cur- The LSB value for the 16-bit ACR and charge thresholds rent passed through the sense and the maximum battery is displayed on the bottom.
  • Page 6: Parts List

    DEMO MANUAL DC1496A-A/B PARTS LIST ITEM REFERENCE PART DESCRIPTION MANUFACTURE/PART NUMBER C1, C2 CAP ., CHIP X7R, 0.1μF , 25V, 0603 AVX, 06033C104KAT2A E1-E4 TURRET, Test Point 0.094" MILL-MAX, 2501-2-00-80-00-00-07-0 E5-E9 TURRET, Test Point 0.064" MILL-MAX, 2308-2 E10, E11 TURRET, Test Point 0.037" MILL-MAX, 2309-1 TP1, TP2 (SMT Pads Only)
  • Page 7: Schematic Diagram

    DEMO MANUAL DC1496A-A/B SCHEMATIC DIAGRAM dc1496f...
  • Page 8 DEMO MANUAL DC1496A-A/B PCB LAYOUT AND FILM Silkscreen Top Component Side Inner Layer 2 dc1496f...
  • Page 9 Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representation that the interconnection of its circuits as described herein will not infringe on existing patent rights.
  • Page 10 Linear Technology Corporation (LTC) provides the enclosed product(s) under the following AS IS conditions: This demonstration board (DEMO BOARD) kit being sold or provided by Linear Technology is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not provided by LTC for commercial use. As such, the DEMO BOARD herein may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including but not limited to product safety measures typically found in finished commercial goods.
