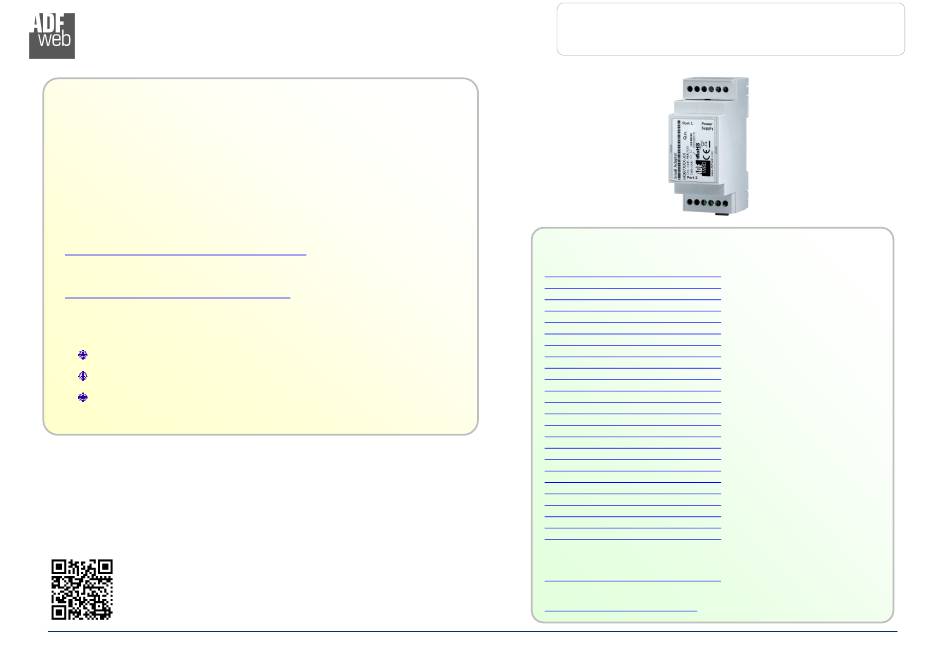

Industrial Electronic Devices
User Manual
Revision 1.000
English
NMEA2000 / MQTT - Converter
(Order Code: HD67949-B2)
For Website information:
www.adfweb.com?Product=HD67949-B2
For Price information:
www.adfweb.com?Price=HD67949-B2
Benefits and Main Features:
Very easy to configure
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual NMEA2000 / MQTT
Document code: MN67949_ENG
For others MQTT products, see also the following links:
Converter MQTT to
www.adfweb.com?Product=HD67930
www.adfweb.com?Product=HD67931
www.adfweb.com?Product=HD67932
www.adfweb.com?Product=HD67933
www.adfweb.com?Product=HD67934
www.adfweb.com?Product=HD67935
www.adfweb.com?Product=HD67936
www.adfweb.com?Product=HD67937
www.adfweb.com?Product=HD67938
www.adfweb.com?Product=HD67939
www.adfweb.com?Product=HD67940
www.adfweb.com?Product=HD67941
www.adfweb.com?Product=HD67942
www.adfweb.com?Product=HD67943
www.adfweb.com?Product=HD67944
www.adfweb.com?Product=HD67945
www.adfweb.com?Product=HD67946
www.adfweb.com?Product=HD67947
www.adfweb.com?Product=HD67948
www.adfweb.com?Product=HD67950
www.adfweb.com?Product=HD67951
www.adfweb.com?Product=HD67952
www.adfweb.com?Product=HD67953
www.adfweb.com?Product=HD67954
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
Revision 1.000
Page 1 of 32
(Ethernet)
(M-Bus)
(Serial)
(Modbus Master)
(Modbus Slave)
(Modbus TCP Master)
(Modbus TCP Slave)
(BACnet Master)
(BACnet Slave)
(CAN)
(CANopen)
(DALI)
(DeviceNet Master)
(DeviceNet Slave)
(DMX)
(EtherNet/IP)
(J1939)
(KNX)
(NMEA 0183)
(PROFIBUS Master)
(PROFIBUS Slave)
(PROFINET)
(SNMP Manager)
(SNMP Agent)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADF Web HD67949-B2
Summary of Contents for ADF Web HD67949-B2
- Page 1 Revision 1.000 Page 1 of 32 Industrial Electronic Devices User Manual Revision 1.000 English NMEA2000 / MQTT - Converter (Order Code: HD67949-B2) For Website information: For others MQTT products, see also the following links: www.adfweb.com?Product=HD67949-B2 Converter MQTT to www.adfweb.com?Product=HD67930 (Ethernet) For Price information: www.adfweb.com?Product=HD67931...
-
Page 2: Table Of Contents
User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 2 of 32 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 3 of 32 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 4 of 32 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com S.r.l. -
Page 5: Connection Scheme
User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 5 of 32 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67949-B2 ADFweb.com S.r.l. -
Page 6: Characteristics
Revision 1.000 Page 6 of 32 Industrial Electronic Devices CHARACTERISTICS: The HD67949-B2 is a NMEA2000 / MQTT Converter. It allows the following characteristics: Electrical isolation between Ethernet and NMEA2000; Mountable on 35mm Rail DIN; Wide power supply input range: 18…35V DC and 8…24V AC;... -
Page 7: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67949-B2 Caution: Not reverse the polarity power HD67949-B2 ADFweb.com S.r.l. -
Page 8: Function Modes
User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 8 of 32 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’... -
Page 9: Leds
User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 9 of 32 Industrial Electronic Devices LEDS: The device has got five LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 10: Can
User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 10 of 32 Industrial Electronic Devices CAN: For terminate the CAN line with a 120Ω resistor it is necessary that the Dip1 of ‘Dip-Switch B’ is at ON position. Cable characteristics: DC parameter: Impedance... -
Page 11: Ethernet
The Ethernet port is used for programming the device and for MQTT communication. The Ethernet connection must be made using Connector2 of HD67949-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable. -
Page 12: Use Of Compositor Sw67949
User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 12 of 32 Industrial Electronic Devices USE OF COMPOSITOR SW67949: To configure the Converter, use the available software that runs with Windows called SW67949. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 13: New Configuration / Open Configuration
User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 13 of 32 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “NMEA2000 / MQTT - Converter”... -
Page 14: Software Options
User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 14 of 32 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 15 User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 15 of 32 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software. ADFweb.com S.r.l.
-
Page 16: Set Communication
User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 16 of 32 Industrial Electronic Devices SET COMMUNICATION: By Pressing the “Set Communication” button from the main window for SW67949 (Fig. 2) the window “Set Communication” appears (Fig. 3). The window is divided in different sections in order to define the different parameters of the converter: NMEA2000... - Page 17 User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 17 of 32 Industrial Electronic Devices NMEA 2000: This section is used to define the main parameters of NMEA2000 line. The means of the fields are: In the field “Baud Rate”...
- Page 18 User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 18 of 32 Industrial Electronic Devices In the field “Retained Will” the converter will send the Will message with Retain flag enabled. In this way, the Server will hold the last Will message;...
- Page 19 User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 19 of 32 Industrial Electronic Devices THERNET This section is used to define the general parameters of Ethernet. The means of the fields are: In the field “Ip Address” the IP address of the converter is defined; In the field “SubNet Mask”...
- Page 20 User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 20 of 32 Industrial Electronic Devices If the field “Enable DHCP” is checked, the converter acts as DHCP Server for the Clients connected. If the option is enabled, in the fields “DHCP First IP Address”...
- Page 21 User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 21 of 32 Industrial Electronic Devices TLS (T RANSPORT AYER ECURITY This section is used to define the parameters of TLS protocol. The means of the fields are: If the field “Enable TLS”...
-
Page 22: Mqtt Set Topic
User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 22 of 32 Industrial Electronic Devices MQTT SET TOPIC: By Pressing the “MQTT Set Topic” button from the main window for SW67949 (Fig. 2) the window “Set MQTT Topics” appears (Fig. 4). This section is used to define the MQTT topics where the converter will publish the data from NMEA2000 and the topic that the converter will subscribes for writing the data to NMEA2000. - Page 23 User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 23 of 32 Industrial Electronic Devices MQTT S UBSCRIBE Figure 4b: “Set MQTT Topics MQTT Subscribe” window The means of the fields are: In the field “Topic” the MQTT topic is defined; In the field “QoS”...
-
Page 24: Receive Nmea
User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 24 of 32 Industrial Electronic Devices RECEIVE NMEA 2000: By pressing the “Receive NMEA 2000” button from the main window for SW67949 (Fig. 2) the window “Receive NMEA 2000 Frames” appears (Fig. -
Page 25: Transmit Nmea
User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 25 of 32 Industrial Electronic Devices TRANSMIT NMEA 2000 By pressing the “Transmit NMEA 2000” button from the main window of SW67949 the window “Transmit NMEA 2000 Frames” appears (Fig. -
Page 26: Update Device
User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 26 of 32 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 27 User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 27 of 32 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67949 device. Warning: If Fig. 8 appears when you try to do the Update try these points before seeking assistance: Check if the serial COM port selected is the correct one;...
-
Page 28: Template String: Definition Of Mqtt Payload
User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 28 of 32 Industrial Electronic Devices TEMPLATE STRING: DEFINITION OF MQTT PAYLOAD In the section “Set Communication” of the SW67939, it is possible to define a Template string for the MQTT messages. The template is necessary in order to define the structure of the payload of the MQTT message and the info contained. -
Page 29: Mechanical Dimensions
User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 29 of 32 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 9: Mechanical dimensions scheme for HD67949-B2 ADFweb.com S.r.l. -
Page 30: Ordering Informations
Enclosure Type B: Modulbox 4M, 35mm DIN Rail mounting Device Family HD67949: NMEA2000 / MQTT - Converter Order Code: HD67949-B2 NMEA2000 / MQTT – Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 31: Disclaimer
User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 31 of 32 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 32: Warranties And Technical Support
User Manual NMEA2000 / MQTT Document code: MN67949_ENG Revision 1.000 Page 32 of 32 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
