IO-LINK SET ACCESS:
By Pressing the "IO-Link Set
(Fig. 4).
This section is used to define the Process Data and the variables where mapping the data read/written from/to the Devicenet.
P D
ROCESS ATA

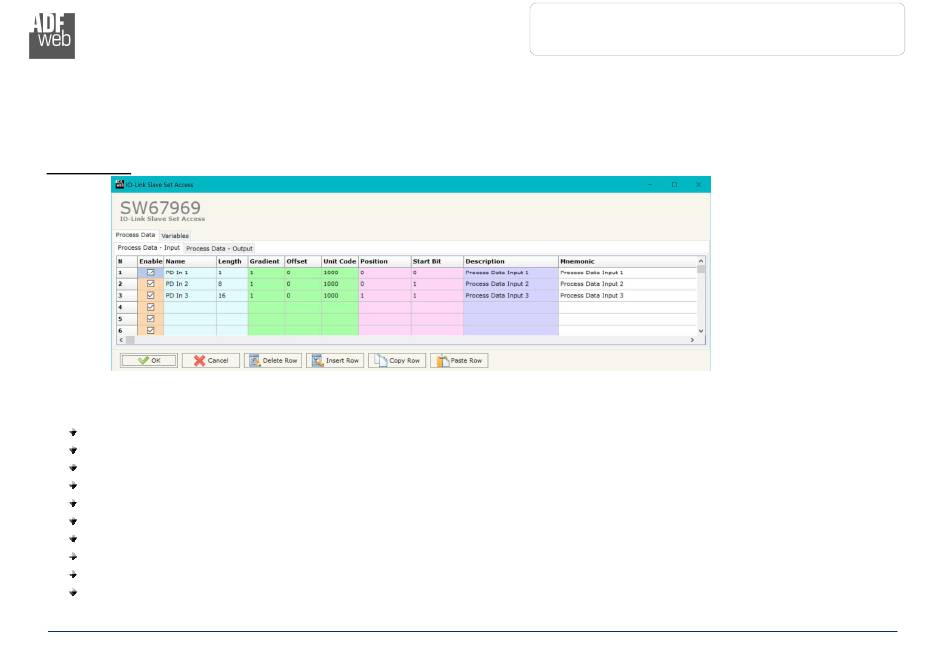

Figure 4a: "IO-Link Slave Set Access
The means of the fields are:
If the field "Enable" is checked, the IO-Link variable is enabled;
In the field "Name" the name of the IO-Link variable is defined;
In the field "Lenght" the dimension in bit of the variable is defined;
In the field "Gradient" the gradient of the variable is defined;
In the field "Offset" the offset of the variable is defined;
In the field "Unit Code" the unit for the variable is defined;
In the field "Position" the starting byte of the internal memory array where placing the data is defined;
In the field "Start Bit" the starting bit of the selected Position where mapping the data is defined;
In the field "Description" the description of the variable is defined;
In the field "Mnemonic" a note is defined.
ADFweb.com S.r.l.
Access" button from the main window for SW67969 (Fig. 2) the window "IO-Link Slave Set Access" appears
 Process Data" window
