Industrial Electronic Devices
User Manual
Revision 1.000
English

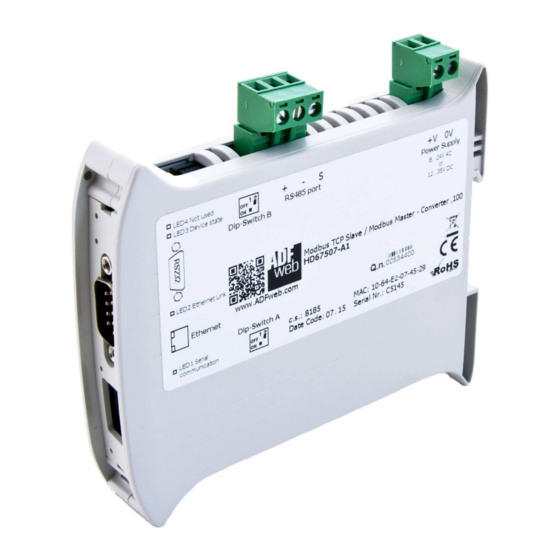

EtherNet/IP Slave / HART Master - Converter
(Order Code: HD67906-A1)
For Website information:
www.adfweb.com?Product=HD67906
For Price information:
www.adfweb.com?Price=HD67906-A1
Benefits and Main Features:
Very easy to configure
Triple Electrical isolation
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual EtherNet/IP Slave / HART Master
Document code: MN67906_ENG
For other HART products see also the following link:
Converter IEC 61850 Server to
www.adfweb.com?Product=HD67900
www.adfweb.com?Product=HD67901
www.adfweb.com?Product=HD67902
www.adfweb.com?Product=HD67903
www.adfweb.com?Product=HD67904
www.adfweb.com?Product=HD67905
www.adfweb.com?Product=HD67906
www.adfweb.com?Product=HD67908
www.adfweb.com?Product=HD67909
www.adfweb.com?Product=HD67910
www.adfweb.com?Product=HD67912
www.adfweb.com?Product=HD67913
Do you have your customer protocol? Then go to:
www.adfweb.com?Product=HD67003
Do you need to choose a device? Do you want help?
www.adfweb.com?Cmd=helpme
Revision 1.000
Page 1 of 31
(Serial)
(BACnet Slave)
(CAN)
(CANopen)
(DeviceNet Slave)
(Ethernet)
(EtherNet/IP Slave)
(Modbus Slave)
(Modbus TCP Slave)
(MQTT)
(PROFINET Slave)
(SNMP Agent)
Advertisement
Table of Contents
Related Manuals for ADF Web HD67906-A1
Summary of Contents for ADF Web HD67906-A1
- Page 1 Revision 1.000 Page 1 of 31 Industrial Electronic Devices User Manual Revision 1.000 English EtherNet/IP Slave / HART Master - Converter (Order Code: HD67906-A1) For Website information: www.adfweb.com?Product=HD67906 For Price information: www.adfweb.com?Price=HD67906-A1 Benefits and Main Features: Very easy to configure...
-
Page 2: Table Of Contents
User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 2 of 31 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that INDEX you need to check that the following document is: UPDATED DOCUMENTATION Updated REVISION LIST... -
Page 3: Security Alert
User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 3 of 31 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 4 of 31 Industrial Electronic Devices EXAMPLES OF CONNECTION: ADFweb.com S.r.l. -
Page 5: Connection Scheme
User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 5 of 31 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67906-A1 ADFweb.com S.r.l. -
Page 6: Characteristics
Page 6 of 31 Industrial Electronic Devices CHARACTERISTICS: The HD67906-A1 are EtherNet/IP Slave / HART Master - Converters. It allows for the following characteristics: Triple isolation between Ethernet - Power Supply, Ethernet - HART, HART - Power Supply; Two-directional information between Ethernet bus and HART bus;... -
Page 7: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67906-A1 Caution: Do not reverse the polarity power HD67906-A1 ADFweb.com S.r.l. -
Page 8: Function Modes
User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 8 of 31 Industrial Electronic Devices FUNCTION MODES: The device has got two function modes depending on the position of the ‘Dip2 of Dip-Switch A’: The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip2 of Dip-Switch A’... -
Page 9: Leds
User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 9 of 31 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information about the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 10: Hart
User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 10 of 31 Industrial Electronic Devices HART: “HART” is an acronym for Highway Addressable Remote Transducer. The HART Protocol makes uses Frequency Shift Keying (FSK) standard to superimpose digital communication signals at a low level on top of the 4-20mA. This enables two-way field communication to take place and makes it possible for additional information beyond just the normal process variable to be communicated to/from a smart field instrument. -
Page 11: Ethernet
ETHERNET: The updating of the converters and Ethernet communication must be made using Connector4 of the HD67906-A1 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. -
Page 12: Use Of Compositor Sw67906
User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 12 of 31 Industrial Electronic Devices USE OF COMPOSITOR SW67906: To configure the Converter, use the available software that runs with Windows called SW67906. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 13: New Configuration / Open Configuration
User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 13 of 31 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “EtherNet/IP Slave / HART Master”... -
Page 14: Software Options
User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 14 of 31 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 15 User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 15 of 31 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 16: Set Communication
User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 16 of 31 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of HART and EtherNet/IP buses. By Pressing the “Set Communication” button from the main window for SW67906 (Fig. 2) the window “Set Communication”... -
Page 17: Hart Variables
User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 17 of 31 Industrial Electronic Devices HART VARIABLES: By Pressing the “HART Variables” button from the main window for SW67906 (Fig. 2) the window “Definition of HART Variables List” appears (Fig. - Page 18 User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 18 of 31 Industrial Electronic Devices In the field “Conv Int” the data from HART device is converted in Integer format; In the field “Operations” a post-operation on the data read is defined; In the field “Mnemonic”...
-
Page 19: Update Device
User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 19 of 31 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 20 User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 20 of 31 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67906 device. Warning: If Fig.
-
Page 21: Scan Function
User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 21 of 31 Industrial Electronic Devices SCAN FUNCTION: “SCAN” function is integrated in the configurator software SW67906. It is possible to access to these functions by simple click on the “Scan” button in “HART Variables”... - Page 22 User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 22 of 31 Industrial Electronic Devices Insert the IP Address configured in the converter; Start the Scan by clicking on “Start Scan” button. The window will appear like below: Figure 7b: “HART Scan”...
-
Page 23: Hart Diagnostic Over Ethernet/Ip
User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 23 of 31 Industrial Electronic Devices HART DIAGNOSTIC OVER ETHERNET/IP: It is possible to save the HART Diagnostic on Output EtherNet/IP array using the field “Diagnostic” of the section “Set Communication”. In this case, the status of each HART request defined in the section “HART Variables”... -
Page 24: Mechanical Dimensions
User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 24 of 31 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 7: Mechanical dimensions scheme for HD67906-A1 ADFweb.com S.r.l. -
Page 25: Plc Configuration
User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 25 of 31 Industrial Electronic Devices PLC CONFIGURATION (for EtherNet/IP): The configuration and commissioning of the EtherNet/IP Converter as described on the following pages was accomplished with the help of the “RSLogix 5000”... - Page 26 User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 26 of 31 Industrial Electronic Devices 2) Edit the settings of the new Generic Ethernet Module. As shown in the screen shot below, the module was named “HD67906” and the IP-address assigned is 192.168.0.5. For the Comm Format “Data –...
- Page 27 User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 27 of 31 Industrial Electronic Devices 4) After the configuration is completed, the controller tags are created. ADFweb.com S.r.l.
- Page 28 User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 28 of 31 Industrial Electronic Devices 5) With “RSLinks Classic Lite”, after have done a network scan (RSWho), and finding the EtherNet/IP device, it is possible to load the EDS file for the device in order to have the “Module Info”...
-
Page 29: Ordering Informations
Enclosure Type A: 1M, 35mm DIN Rail mounting Device Family HD67906: EtherNet/IP / HART Master - Converter Order Code: HD67906-A1 EtherNet/IP / HART Master - Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 30: Disclaimer
User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 30 of 31 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 31: Warranties And Technical Support
User Manual EtherNet/IP Slave / HART Master Document code: MN67906_ENG Revision 1.000 Page 31 of 31 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
