V
ARIABLES

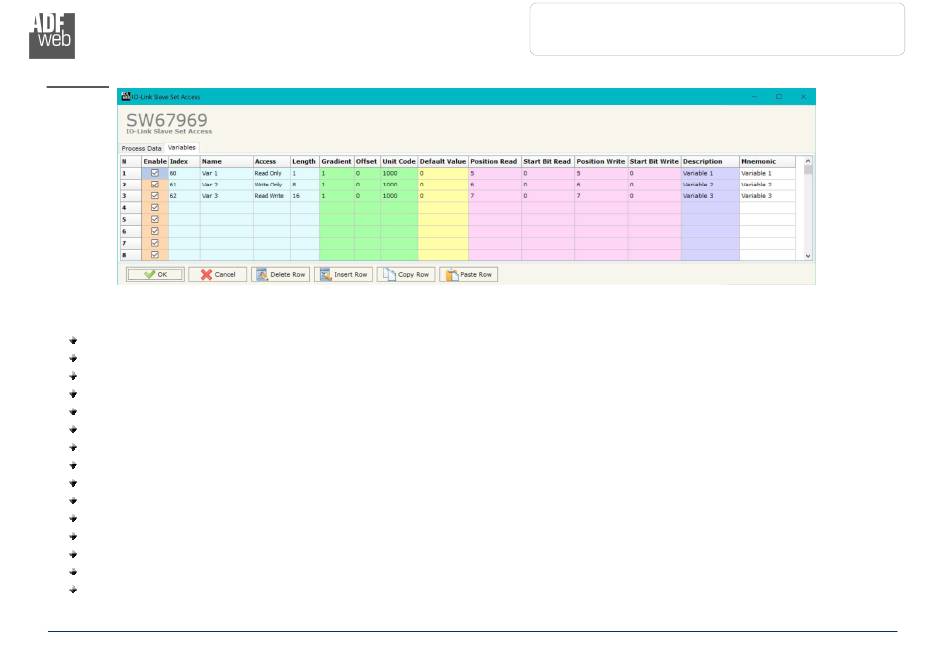

Figure 4b: "IO-Link Slave Set Access
The means of the fields are:
If the field "Enable" is checked, the IO-Link variable is enabled;
In the field "Index" the index of the variable is defined (typically it starts from 64);
In the field "Name" the name of the IO-Link variable is defined;
In the field "Access" the access type is defined;
In the field "Lenght" the dimension in bit of the variable is defined;
In the field "Gradient" the gradient of the variable is defined;
In the field "Offset" the offset of the variable is defined;
In the field "Unit Code" the unit for the variable is defined;
In the field "Default Value" the default value at the start-up is defined;
In the field "Position Read" the starting byte of the internal memory array where placing the data read is defined;
In the field "Start Bit Read" the starting bit of the selected Position where mapping the data is defined;
In the field "Position Write" the starting byte of the internal memory array where placing the data written is defined;
In the field "Start Bit Write" the starting bit of the selected Position where mapping the data is defined;
In the field "Description" the description of the variable is defined;
In the field "Mnemonic" a note is defined.
ADFweb.com S.r.l.
 Variables" window
