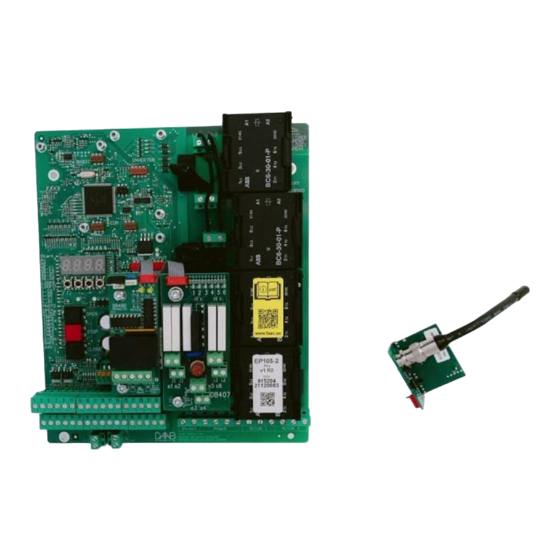

FAAC DAAB EP105 Manual

FAAC DAAB EP105 Manual

Channel list, automatic control unit
Hide thumbs Also See for DAAB EP105:

Advertisement

Quick Links

Download this manual
CHANNEL LIST
DAAB AUTOMATIC CONTROL UNIT EP105

Advertisement

loading

Related Manuals for FAAC DAAB EP105

Summary of Contents for FAAC DAAB EP105

  • Page 1 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105...
  • Page 2 Follow the safety instructions of the equipment to be controlled by the control unit. • Safety classification FAAC Nordic AB has validated the safety circuits in the EP105 to performance level PL = c and Category 2 as defined in SS-EN ISO 13849-2:2008.

  • Page 3: Operation

    • Resetting/replacing tripped fuses If the fuse protecting the power supply to the automatic control unit trips, FAAC Nordic AB recommends following these steps to reset/replace it. • Switch off the main switch to the automatic control unit.
  • Page 4 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Connection CAUTION: Important safety instructions. Follow all instructions, as incorrect installation can cause serious injury. • Safety The electrical connections may only be made by a qualified electrician, who accepts responsibility for ensuring that the electric connections have been carried out in accordance with the applicable standards and this instruction manual.
  • Page 5 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 For information about connecting to a frequency converter, see the instructions for add-in card DB409. If a symmetrical single-phase motor is Supply 1x230V with neutral used (as shown on the left) make the (symmetrical) following changes.
  • Page 6 1 is connected, and SE.C2 and SE.O2 to the half to which motor 2 is connected. The impedance can be between 1.0-9.9 kΩ with a 1% tolerance and a power capability of at least 0.5 W. FAAC Nordic AB recommends an impedance of 8.2 kΩ.
  • Page 7 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 • Connecting an encoder (electronic limit switch) The EP105 supports DB405 type encoders. The encoder uses the same terminals as a conventional mechanical limit switch. The two diagrams below illustrate how to connect the encoder, and they also show which is the left and right motor from the point of view of the automatic control unit.
  • Page 8 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 • Signal reference Safety edge 1, closing movement (SE.C1) Safety edge 2, closing movement (SE.C2) Safety edge 1, opening movement (SE.O1) Safety edge 2, opening movement (SE.O2) 24VDC Stop input 1 Stop input 2 Stop input 3 Power supply encoder or common limit switch motor 1...

  • Page 9: Technical Specification

    CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Technical specification Dimensions (WxHxD) 190x224x60 mm. Power supply 3-phase or single-phase. Power supply 3x400 V+N+PE, 3x230 V+PE, 1x230 V+N+PE, 3x400 V+PE (requires an external transformer) Permitted voltage variation ±10% Frequency 50 Hz. Motor in 3-phase operation 3-phase asynchronous motor 0.18-1.5 kW.
  • Page 10 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Quick guide for commissioning of gate • Conditions Electrical installation has been carried out and drive units are disconnected. Commission one drive unit at a time only and start with drive unit 1. The supply voltage in C202 is set to 0, 3x400V with neutral. The limit switch is of the encoder type. The display channel C999 is set to 2.
  • Page 11 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 • Commissioning of drive unit 2 Preparations: C999 is set to 2. Open half 1 and set L001 to 0 to keep drive unit 1 in open position. Set C033 to 5, service position.

  • Page 12: Channel List

    CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Channel list There are seven channel categories, each with its own letter and each handling different functions in the card. • C-channels: General readout and configuration channels. • d-channels: Channels relating to the DB402 vehicle detector. •...
  • Page 13 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 General configuration channels Name Range Factory Setting C033 Pulse/hold-to-run 0 - 5 Open and close with hold-to-run and load guard inactive Open with pulse and close with hold-to-run and load guard active Open with hold-to-run and close with pulse and load guard active Open and close with pulse and load guard active Open and close with hold-to-run and load guard active Service mode, only internal open/close buttons with hold-to-run.
  • Page 14 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Safety edge Name Range Factory Setting C101 Safety edge acknowledgement SE.C1 Disabled Enabled C102 Output for self-test of external protection Check disabled, open output Closed to GND on activation, normally open Closed to +24 VDC on activation, normally open Open on activation, normally closed to GND Open on activation, normally closed to +24 VDC C103 Function of safety edge input during test of external...
  • Page 15 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Name Range Factory Setting C121 Selects function for safety edge SE.C2 SE.C2 disabled Limits according to set value in C125 Fixed limits between 5 kΩ and 15 kΩ C122 Reverse/stop with activated safety edge SE.C2 Reverse Stop C123 Control of external protection connected to SE.C2...
  • Page 16 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Load guard and motor settings Name Range Factory Setting C200 Load guard function 0 – 4 Disabled. Service and troubleshooting only Reverse when closing, stop when opening Stop when closing and reverse when opening Reverse when closing and opening Stop when closing and opening C202...
  • Page 17 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Photocell Name Range Factory Setting C340 Safety function in closing movement 0 – 3 Disabled Reverse to fully open Stop with automatic restart of automatic closing Stop, wait for new control signal or time in C520 and thereafter automatic closing. C341 Safety during run-on time or disengagement angle in closing movement.
  • Page 18 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 General time channels. Name Range Factory Setting C436 Type of stop during run-on time when closing, subordinated to C448 and C449 Time Time or load guard Time or safety edge Time, load guard or safety edge C448 Safety edge reverse during run-on while closing, L117, L127, L213, L223 Function disabled...
  • Page 19 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Automatic closing Name Range Factory Setting C500 Time before automatic closing 000.0-600.0 seconds 000.0 000,0 means disabled function C510 Time before closing, after passage, on photocell 00-99 seconds closing and loop closing. Subordinated to C351, d151 and d251 C520 Blocking time for automatic closing after the stop 000 and 020-600...
  • Page 20 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Communication Name Range Factory Setting C600 Choice of communication Disabled Interlock Simply connect Interlock C610 Choice of unit address C614 Block of local door No blocking of the local door depending on position of remote door Block of open on local door until remote door is closed Block of open on local door until remote door is open Blocking of close on local door until remote door is closed...
  • Page 21 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Name Range Factory Setting C707 Output card DB407 Not installed, o-channels not displayed Installed C709 Frequency converter card DB409 Not installed, does not affect display of F-channels Installed, selection in channel C202 also controls display of the F-channels C710 Output channel DB410, o-channels not displayed Not installed...
  • Page 22 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 • Vehicle detector DB402, d-channels Vehicle loop 1 Note that the display of the d-channels is determined by the setting in C702 Name Range Factory Setting d100 Vehicle loop 1 Disabled Enabled d101 Loop reading x1 000-999 d102...
  • Page 23 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Name Range Factory Setting d160 Control function 0 - 1 Disabled Open d161 Type of control signal when activated 1 - 2 Pulse Constant signal when loop is activated d162 Half operation 1 - 3 Motor 1 Motor 2 Motors 1 and 2...
  • Page 24 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Vehicle loop 2 Note that the display of the d-channels is determined by the setting in C702 Name Range Factory Setting d200 Vehicle loop 2 Disabled Enabled d201 Loop reading x1 000-999 d202 Loop reading x1000 00-99 d203...
  • Page 25 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Name Range Factory Setting d260 Control function 0 - 1 Disabled Open d261 Type of control signal when activated 1 - 2 Pulse Signal when loop is activated d262 Half operation 1 - 3 Motor 1 Motor 2 Motors 1 and 2...
  • Page 26 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 • Frequency converter, F-channels Name Range Factory Setting F001 Communication with frequency converter Communication disabled Communication activated F002 Acceleration time from closed position 0.5-9.9 seconds 2.0 sec motors 1 and 2 (from 0-100 Hz) F003 Acceleration time in all movements except at closed 0.5-9.9 seconds...
  • Page 27 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Name Range Factory Setting F030* Choice of ratio for motor 1 Not selected, in this position the motor only rotates at 25Hz MK with pulleys 40/71 (gear ratio 1318:1) MK with pulleys 50/71 (gear ratio 1098:1) MK with pulleys 71/71 (gear ratio 791:1) MK with pulleys 100/71 (gear ratio 565:1) MK with pulleys 125/71 (gear ratio 456:1)
  • Page 28 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 • Limit switches, L-channels Name Range Factory Setting L001 Choice of limit switch type for motor 1 Disabled Encoder Limit switch Time Hold-to-run without limit switches. NOTE! Only one half at a time can be run. C033 must be set to 5. L002 Choice of limit switch type for motor 2 Disabled...
  • Page 29 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Limit switch Name Range Factory Setting L203 Setting limited running time (Not used with encoder) 001-999 seconds L211 Running time readout, motor 1 000-999 seconds L212 Run-on time following limit switch open, motor 1 0.00-7.99 seconds 0.00 L213...
  • Page 30 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 • Output card DB407 and DB410, o-channels Programmable output 1 Note that the display of the o-channels is determined by the setting in C707 and C710 Name Range Factory Setting o100 Function of output 1 0 - 4 Disabled Position indication/Movement/Warning.
  • Page 31 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Name Range Factory Setting o130 Alarm delay. Alarm in channels o131 – o142 must be 000.0-600.0 seconds 000.0 active in this time to produce output signal. o131 Alarm if pressed safety edge. 0 - 1 Disabled Constant signal o132...
  • Page 32 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Name Range Factory Setting o191 Function when LOOP2, LOOP2 or PHOTO 01 - 14 activated Presence detection. Signal when LOOP1 is activated, remains until LOOP1 is clear. Presence detection. Signal when LOOP2 is activated, remains until LOOP2 is clear. Presence detection.
  • Page 33 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Programmable output 2 Note that the display of the o-channels is determined by the setting in C707 and C710 Name Range Factory Setting o200 Function of output 2 0 - 4 Disabled Position indication/Movement/Warning. Signal as configured in o210 – o222 Presence detection/Direction sensing.
  • Page 34 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Name Range Factory Setting o230 Alarm delay. Alarm in channels o231 – o242 must be 000.0-600.0 seconds 000.0 active in this time to produce output signal. o231 Alarm if pressed safety edge. 0 - 1 Constant signal Active o232...
  • Page 35 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Name Range Factory Setting o291 Function when SL.1, SL.2 or photocell/loop activated 01 - 14 Presence detection. Signal when LOOP1 is activated, remains until LOOP1 is clear. Presence detection. Signal when LOOP2 is activated, remains until LOOP2 is clear. Presence detection.
  • Page 36 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Programmable output 3 Note that the display of the o-channels is determined by the setting in C707 and C710 Name Range Factory Setting o300 Function of output 3 0 - 4 Disabled Position indication/Movement/Warning. Signal as configured in o310 – o322 Presence detection/Direction sensing.
  • Page 37 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Name Range Factory Setting o330 Alarm delay. Alarm in channels o331 – o242 must be 000.0-600.0 seconds 000.0 active in this time to produce output signal. o331 Alarm if pressed safety edge. 0 - 1 Disabled Constant signal o332...
  • Page 38 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Name Range Factory Setting o391 Function when SL.1, SL.2 or photocell/loop activated 01 - 14 Presence detection. Signal when LOOP1 is activated, remains until LOOP1 is clear. Presence detection. Signal when LOOP2 is activated, remains until LOOP2 is clear. Presence detection.
  • Page 39 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Programmable output 4 Note that the display of the o-channels is determined by the setting in C707 and C710 Name Range Factory Setting o400 Function of output 4 0 - 4 Disabled Position indication/Movement/Warning. Signal as configured in o410 – o422 Presence detection/Direction sensing.
  • Page 40 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Name Range Factory Setting o422 Function during warning time 1 - 2 Output signal disabled during warning in other output Output signal as configured in o410-o413 o423 Flashing frequency 0.1-2.0 seconds o430 Alarm delay. Alarm in channels o431 – o442 must be 000.0-600.0 seconds 000.0 active in this time to produce output signal.
  • Page 41 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Name Range Factory Setting o491 Function when LOOP2, LOOP2 or PHOTO 01 - 14 activated Presence detection Signal when LOOP1 is activated, remains until LOOP1 is clear. Presence detection Signal when LOOP2 is activated, remains until LOOP2 is clear. Presence detection.
  • Page 42 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Programmable output 5 Note that the display of the o-channels is determined by the setting in C707 and C710 Name Range Factory Setting o500 Function of output 1 0 - 4 Disabled Position indication/Movement/Warning. Signal as configured in o510 – o522 Presence detection/Direction sensing.
  • Page 43 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Name Range Factory Setting o530 Alarm delay. Alarm in channels o531 – o542 must be 000.0-600.0 seconds 000.0 active in this time to produce output signal. o531 Alarm if pressed safety edge. Disabled Constant signal o532 Alarm for critical error message in display...
  • Page 44 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Name Range Factory Setting o591 Function when LOOP2, LOOP2 or PHOTO 01 - 14 activated Presence detection. Signal when LOOP1 is activated, remains until LOOP1 is clear. Presence detection. Signal when LOOP2 is activated, remains until LOOP2 is clear. Presence detection.
  • Page 45 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Programmable output 6 Note that the display of the o-channels is determined by the setting in C707 and C710 Name Range Factory Setting o600 Function of output 1 0 - 4 Disabled Position indication/Movement/Warning. Signal as configured in o610 – o622 Presence detection/Direction sensing.
  • Page 46 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Name Range Factory Setting o630 Alarm delay. Alarm in channels o631 – o642 must be 000.0-600.0 seconds 000.0 active in this time to produce output signal. o631 Alarm if pressed safety edge. Disabled Constant signal o632 Alarm for critical error message in display...
  • Page 47 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Name Range Factory Setting o691 Function when LOOP2, LOOP2 or PHOTO 01 - 14 activated Presence detection. Signal when LOOP1 is activated, remains until LOOP1 is clear. Presence detection. Signal when LOOP2 is activated, remains until LOOP2 is clear. Presence detection.
  • Page 48 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 • Programmable inputs, P channels Programmable input 1 Name Range Factory Setting P100 Programmable input 1 Disabled Enabled P160 Control function Disabled Open Close Stop Open/Close Open/Stop/Close P161 Type of control signal when activated 1 - 2 Pulse (hold-to-run mode not possible) Signal for as long as the input is activated...
  • Page 49 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Programmable input 2 Name Range Factory Setting P200 Programmable input 2 Disabled Enabled P260 Control function Disabled Open Close Stop Open/Close Open/Stop/Close P261 Type of control signal when activated 1 - 2 Pulse (hold-to-run mode not possible) Signal for as long as the input is activated P262 Half operation...
  • Page 50 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Programmable input 3 Name Range Factory Setting P300 Programmable input 3 Disabled Enabled P360 Control function Disabled Open Close Stop Open/Close Open/Stop/Close P361 Type of control signal when activated 1 - 2 Pulse (hold-to-run mode not possible) Signal for as long as the input is activated P362 Half operation...
  • Page 51 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Programmable input 4 Name Range Factory Setting P400 Programmable input 4 Disabled Enabled P460 Control function Disabled Open Close Stop Open/Close Open/Stop/Close P461 Type of control signal when activated 1 - 2 Pulse Signal for as long as the input is activated P462 Half operation...
  • Page 52 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Programmable input 5 Name Range Factory Setting P500 Programmable input 5 Disabled Activated (Only channels P560-P598 activated) Battery operation, only together with frequency converter (Channels P560-P598 inactivated) P560 Control function Disabled Open Close Stop Open/Close Open/Stop/Close...
  • Page 53 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Programmable input 6 Name Range Factory Setting P600 Programmable input 6 Disabled Activated (Only channels P660-P698 activated) Safety input (Only channels P640-P643 activated) P640 Safety function when input is activated 0 – 3 Disabled Reverse to fully open Stop with automatic restart of automatic closing...
  • Page 54 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Name Range Factory Setting P675 Opening via input after activation during set time, 0.0-9.9 seconds input will not open the gate until it has been activated for the set time. P680 Park 0 - 2 Disabled Automatic closing disabled after the input is activated, reset by another control signal Automatic closing disabled by a constant signal.
  • Page 55 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 • Radio DB411, r-channels Programmable radio input 1 Note that the display of the r-channels is determined by the setting in C711 Name Range Factory Setting r001 Readout of received radio input 0 - 4 No radio reception Radio input 1 is receiving a radio signal Radio input 2 is receiving a radio signal...
  • Page 56 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Programmable wireless input 2 Note that the display of the r-channels is determined by the setting in C711 Name Range Factory Setting r001 Readout of received wireless input 0 - 4 No radio reception Radio input 1 is receiving a radio signal Radio input 2 is receiving a radio signal Radio input 3 is receiving a radio signal...
  • Page 57 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Programmable wireless input 3 Note that the display of the r-channels is determined by the setting in C711 Name Range Factory Setting r001 Readout of received radio input 0 - 4 No radio reception Radio input 1 is receiving a radio signal Radio input 2 is receiving a radio signal Radio input 3 is receiving a radio signal...
  • Page 58 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Programmable wireless input 4 Note that the display of the r-channels is determined by the setting in C711 Name Range Factory Setting r001 Readout of received wireless input 0 - 4 No radio reception Radio input 1 is receiving a radio signal Radio input 2 is receiving a radio signal Radio input 3 is receiving a radio signal...
  • Page 59 E047 Factory reset of all channels E048 Error code list reset E053 Unknown circuit board version Contact FAAC Nordic AB Only applies to up-and-over control, fault in safety edge? E116 No safety edge acknowledgement Correct run-on time? E141 SE.O2 is disabled when C104 is set to 3 Indication function of SE.O2 in channel C141...
  • Page 60 No response from frequency converter motor 2 Instruction Manual for DB409. Address must be set for the frequency converter. Incorrect value sent to frequency converter for Contact FAAC Nordic AB E661 motor 1 Incorrect value sent to frequency converter for...
  • Page 61 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Error Possible cause Meaning code Open operation at the same time as a close E932 operation. Motor 1 running in the wrong direction according Check that channel L110 is set to the correct side. Check the E941 to the encoder setting.

  • Page 62: Troubleshooting

    • Resetting/replacing tripped fuses If the fuse protecting the power supply to the automatic control unit trips, FAAC Nordic AB recommends following these steps to reset/replace it. •...
  • Page 63 CHANNEL LIST DAAB AUTOMATIC CONTROL UNIT EP105 Notes: Revision 4...
