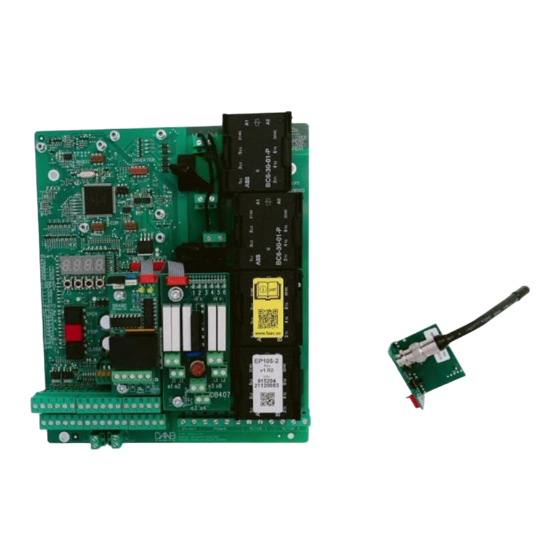

Quick guide for commissioning of swing gates DAAB AUTOMATIC CONTROL UNIT EP105...
Page 2
QUICK GUIDE DAAB CONTROL UNIT EP105 Quick guide for commissioning of swing gates • COUTION The unit may only be connected by a qualified electrician, who accepts responsibility for ensuring that the electric connections have been carried out in accordance with the applicable standards and this instruction manual. Always disconnect the power supply when work is carried out in the control cabinet.
Page 3
QUICK GUIDE DAAB CONTROL UNIT EP105 • Commissioning of drive unit 2 Preparations: C999 is set to 2. Open half 1 and set L001 to 0 to keep drive unit 1 in open position Set C033 to 5, service position. Direction of movement: Start L002 to 4, hold-to-run without limits.
