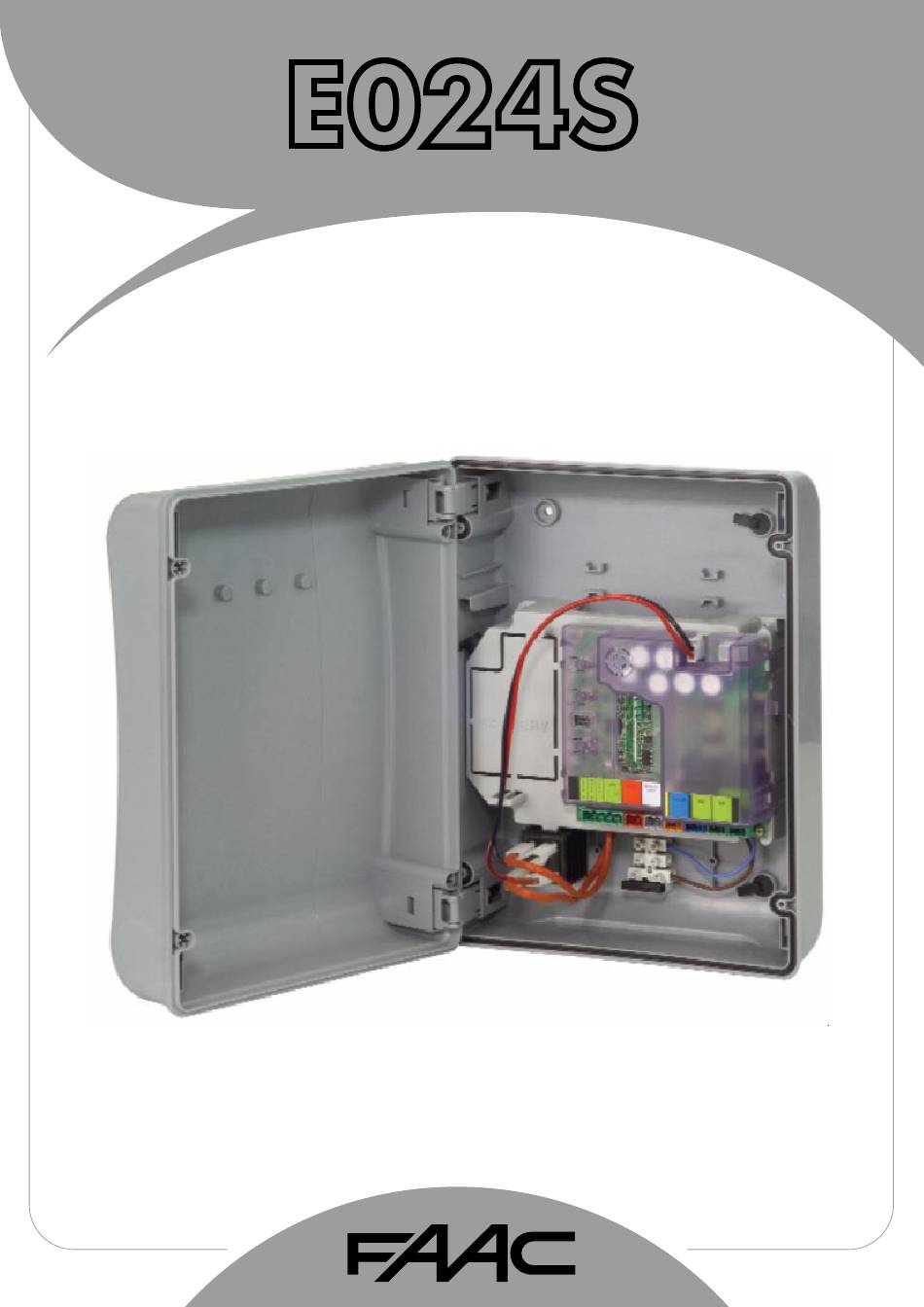

- Page 1 E024S...
-
Page 2: Table Of Contents
8.3.1 REMOTE MEMORY STORAGE OF RC/LC RADIO CONTROLS ..........9 8.4 RADIO CONTROLS DELETION PROCEDURE ..................9 CONNECTION OF BUFFER BATTERIES (OPTIONAL) ................9 AUTOMATED SYSTEM TEST .........................9 S700H/S800H: BUS ENCODER WIRING .................... 11 S450H BUS ENCODER WIRING.......................12 LOGIC TABLES ..........................12 CE DECLARATION OF CONFORMITY Manufacturer: FAAC S.p.A. Address: Via Calari, 10 - 40069 Zola Predosa BOLOGNA - ITALY Declares that: Control board mod. E024S, • conforms to the essential safety requirements of the following EEC directives: 2006/95/EC Low Voltage Directive 2004/108/EC Electromagnetic Compatibility Directive Additional information: This product underwent a test in a typical, uniform configuration. (all products made by FAAC S.p.A) Bologna 20-04-2010 The Managing Director A. Marcellan WARNINGS • Important! For the safety of people, it is important that all the instructions be carefully observed. -
Page 3: Box Layout
ELECTRICAL bOX E024S The cover hinges can be moved upward to allow opening the BOX LAYOUT box housing (Fig. C); they can also be removed and re-positio- ned in order to enable the cover to open to the right or left. THE bOX CONTAINS THE E024S CONTROL uNIT AND THE DEvICES TO pOWER IT. IT MuST THEREFORE bE HANDLED WITH CARE DuRING ALL INSTALLATION STAGES, TO AvOID DAMAGING ITS COMpONENTS. The dimensions of the box are shown in Fig.A: Fig. C When you have secured the box in the selected position, cover the securing holes (ref.a Fig.B) and the screws with the supplied plugs as shown in Fig.D. - Page 4 - To avoid any electrical disturbance, use separate sheaths or a shielded cable (with the shield earthed). LAYOUT AND CONNECTIONS 230 v~ 50Hz 5 v~ 60Hz Motors connection (TOTAL OPENING) 2x2.5 mm ² / AvG 2 for motor (minimum) (PARTIAL OPENING) (Max. length 20 m) Fig. 1A THE pOWER SuppLY IS RELATED TO THE E024S puRCHASED vERSION.
-
Page 5: Warnings
- To avoid any electrical disturbance, use separate sheaths or a shielded cable (with the shield earthed). LAYOUT AND CONNECTIONS Motors connection (PARTIAL OPENING) 2x2.5 mm ² / AvG 2 for motor (minimum) (TOTAL OPENING) (Max. length 20 m) 230 v~ 50Hz 5 v~ 60Hz Fig. 1B THE pOWER SuppLY IS RELATED TO THE E024S puRCHASED vERSION. -
Page 6: Technical Specifications
Integrated radio channels DS, SLH (max 250 channels) entire gate opening or closing movement and type LC -RC (max 250 channels ) for the successive 90 seconds. * The power supply and the fuse are related to the purchased version. The self-resetting fuse F1 stops the power supply to the 3.3 ANTI-CRUSHING FUNCTION accessories by opening a circuit if a current over 500 mA is The electronic anti-crushing function is obtained by controlling detected. It automatically resets after 5 seconds. the current consumption or the encoder of the motors 3.1 DESCRIPTION OF COMPONENTS connected to the E024S unit. POWER SUPPLY connector If the gate detects an obstacle during the opening or closing movement, the anti-crushing function activates and reverses SERVICE LIGHT command terminal-board the sense of direction of the operator, thus increasing the safety FLASHING LAMP terminal-board degree of the automated system. ELECTRIC LOCK terminal-board COMMANDS terminal-board PROGRAMMING THE LOGIC MOTOR 1 terminal-board Repeatedly press the SW3 LOGIC push-button to select one of MOTOR 2 terminal-board the 7 programming logics available. Rapid connection for XF MODULE... -
Page 7: Start-Up
(*) with the DS3-DS4 selection on ON the operator connected to the encoder (EncS700 or EncS450) The leaves start to open one at a time, from any position till they is automatically recognized during the set-up detect the opening limit stop. Next the leaves start to close one phase at a time till they detect the closing limit stop. Before performing the Setup, select the op- Then the leaves start again to move automatically one at a erator connected to the E024S unit with the time from the closed position. DS1(DS3-DS4) DIP switches. 1. Open impulse --->leaf 1 decelerated opening and start of 6.3 TIME LEARNING – SETUP the search for leaf 1 opening limit stop - if the limit stop is detected, it is set as stop point for leaf 1 Before any manoeuvre is executed, a SETUP cycle and leaf 2 starts to open. must first be run. -
Page 8: Programming The Logic
6.3.4 SECOND LEvEL PROGRAMMING - 3. From now on, until next open impulse, the pause time is ADvANCED FUNCTIONS counted. 4. Open impulse ---> Pause time acquisition and start of leaf To enter the 2nd level menu, press the SW2 SPEED push-button 2 closing movement. for more than 2.5 seconds. Both SETUP LEDs light on with steady beam. In this mode, the 5. Open impulse ---> leaf 2 decelerated closure and start of the search for leaf 2 closing limit stop. SPEED key has the menu scrolling function. You can scroll the - if the limit stop is detected, it is set as leaf 2 stop point and menu by pressing it the same number of times shown for the leaf 1 starts to close. parameter. (*) if an open command is detected, it is set as leaf 2 stop The different menus are identified by the number of flashing point and leaf 1 starts to close. of LD8. 6. Open impulse --->leaf 1 decelerated closure and start of The LOGIC key is used to set the parameter value. You can the search for leaf 1 closing limit stop. exit the 2nd level menu by pressing the SPEED key for 2.5 - if the limit stop is detected, it is set as leaf 1 closing stop seconds. -
Page 9: Installation Of Bus Accessories
6.3.5 RETURN TO DEFAULT SETTINGS Restore the default settings as follows: Keep the SETUP push-button pressed to switch the board Both SETUP LEDs are alternately lit The board resets the parameters. Until the SETUP push-button is pressed, movements are inhibited. When the SETUP push-button is released, both LD4 and LD5 LEDs flash. The default configuration is reset and the new Setup can be started. Fig. 2 6.3.6 DEFAULT PARAMETERS Fig. 2 shows a 2-swing leaf automated system indicating the Here the default parameters: coverage beams of the photocells: - Logic: E - Pre-flashing: NO A: Photocells with OPENING and CLOSING action. - Anti-wind facility: NO - Leaf opening delay: YES - Reverse Stroke: NO - Leaf closing delay: 10 s B: Photocells with OPENING action - Soft-touch: NO... -
Page 10: Memory Storage Of Bus Accessories
7.2 MEMORY STORAGE OF BUS ACCESSORIES delete the existing one (see paragraph on deletion), You can add the BUS photocells to the system at any time, and repeat the memory-storage procedure. simply by memory-storing them on the board, observing the following procedure: Install and program the accessories using the required E024S on 39 address (see paragraph 7.1) Cut power to the board. Connect the two accessories cables to the red terminal- board J10 (any polarity will do). Power up the board, taking care to first connect the main power supply (transformer output) and then any batteries and wait for the BUS LED to light on. Quickly press once only the SW1 (SETUP) push-button, to execute learning. The BUS LED flashes. -
Page 11: Memory Storage Of Rc/Lc Radio Controls
The automated system performs one opening operation. Make sure that the automated system is free of any obstacle created by BATTERY KIT OF E024S (OPTIONAL) persons or things. The buffer battery kit was built for insertion inside the control board support. 8.3 MEMORY STORAGE OF RC/LC RADIO CONTROLS This support (Fig.4 ref.a) was pre-moulded to permit the battery housing to be opened. - Page 12 9.1 BATTERY KIT OF E024S ON 391 (OPTIONAL) The battery kit enables you to activate the automated system even in the event of a mains power fault. The batteries are housed in a specific compartment inside the operator (see sequence in fig. 6). 3.9 x 16 To install, refer to the specific instructions. The batteries start operating when mains voltage fails. AUTOMATED SYSTEM TEST When you have finished programming, check if the system is operating correctly. In particular, check if the safety devices Fig. 6 are operating correctly. 11 S700H/S800H: BUS ENCODER WIRING Connection of the BUS input to the control board is via the DL must always be ON to guarantee a correct bipolar cables which come out of the encoders. connection between encoder and board. unlike the case of the photocell devices, the polarity of the buS line connection determines whether the encoder DL 2 identifies leaf 1 and leaf 2.
-
Page 13: S700H/S800H: Bus Encoder Wiring
12 S450H BUS ENCODER WIRING LEAF 1* LEAF 2 REvERSING THE ENCODER WIRES DL 1 DL 1 ON LEAF , MAKE SuRE THROuGH THE bRACKET ON LEAF 2, MAKE SuRE THROuGH THE bRACKET DL 2 DL 2 COvER, IF WITH MOTOR AT REST DL AND COvER, IF WITH MOTOR AT REST bOTH DL DL 3 DL 3 DL2 LEDS ARE ON... -
Page 14: Logic Tables
Tab. 6 LOGIC “E” puLSES AuTOMATED SYSTEM STATuS OpEN A OpEN b STOp FSW Op FSW CL FSW CL/Op opens released no effect no effect no effect CLOSED opens the leaves no effect leaf (OPEN disabled) (OPEN disabled) (OPEN disabled) immediately stops and opens at stops operation OpENING stops operation stops operation reverses at no effect release (OPEN stops closure - saves CLOSE) no effect no effect... - Page 15 Tab. 9 LOGIC “A” puLSES AuTOMATED SYSTEM STATuS OpEN A OpEN b STOp FSW Op FSW CL FSW CL/Op opens released opens and closes no effect no effect no effect leaf and closes no effect CLOSED after pause time (OPEN disabled) (OPEN disabled) (OPEN disabled) after pause time continues stops and opens OpENING no effect (1) no effect stops operation reverses to open and re- at release (saves closes after 5 s CLOSE)
