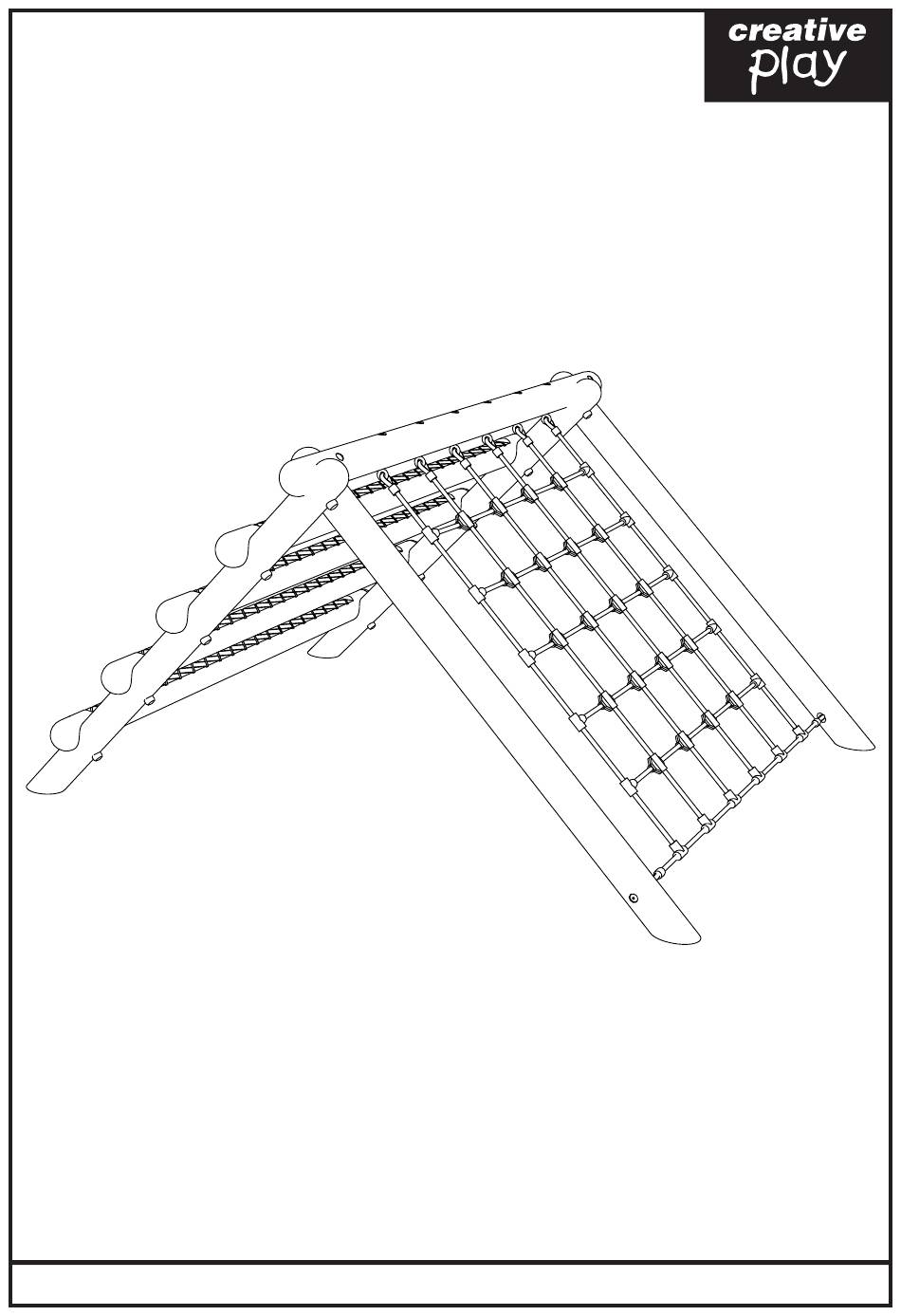

- Page 1 CH107-R - SCRAMPLE NET Installation Instructions REF: CH107-R - SCRAMBLE NET pg 1 of 7 FEB 18 - KB...
-
Page 2: Parts Required
PARTS REQUIRED TIMBER LIST - R-107A [X1] - R-107B [X4] - R-107C [X2] - R-107D [X1] - R-107E [X1] TIMBER LIST NET ASSEMBLY [X1] M12 X 200 BOLTS [X12] M12 NYLOCS [X12] M10 X 40 SOCKET NUT [X8] COVERED END R-60 [X12] TOOLS REQUIRED REF: CH107-R - SCRAMBLE NET pg 2 of 7... - Page 3 FOUNDATION DETAIL 3361 REF: CH107-R - SCRAMBLE NET pg 3 of 7 FEB 18 - KB...
-
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS FIX R-107A TIMBER,1X R-107C TIMBERS TOGETHER USING M12X200 BOLTS, M12 NYLOCS AND END CAPS TILT ASSEMBLY FROM STEP ONE AND ATTACH 1X R-107D AND 1X R-107E USING M12X200 BOLTS, M12 NYLOCS AND END CAPS REF: CH107-R - SCRAMBLE NET pg 4 of 7 FEB 18 - KB... - Page 5 INSTALLATION INSTRUCTIONS INSTALL CH107-R TIMBER FRAMEWORK INTO THE GROUND ATTACH 1X NET ASSEMBLY USING M10X40 SOCKET NUTS REF: CH107-R - SCRAMBLE NET pg 5 of 7 FEB 18 - KB...
- Page 6 INSTALLATION INSTRUCTIONS ATTACH R-107B TIMBERS TO R-107C TIMBERS USING M10X40 SOCKET NUTS REF: CH107-R - SCRAMBLE NET pg 6 of 7 FEB 18 - KB...
-
Page 7: Additional Measurements
ADDITIONAL MEASUREMENTS 2521 2875 2350 2225 REF: CH107-R - SCRAMBLE NET pg 7 of 7 FEB 18 - KB...
