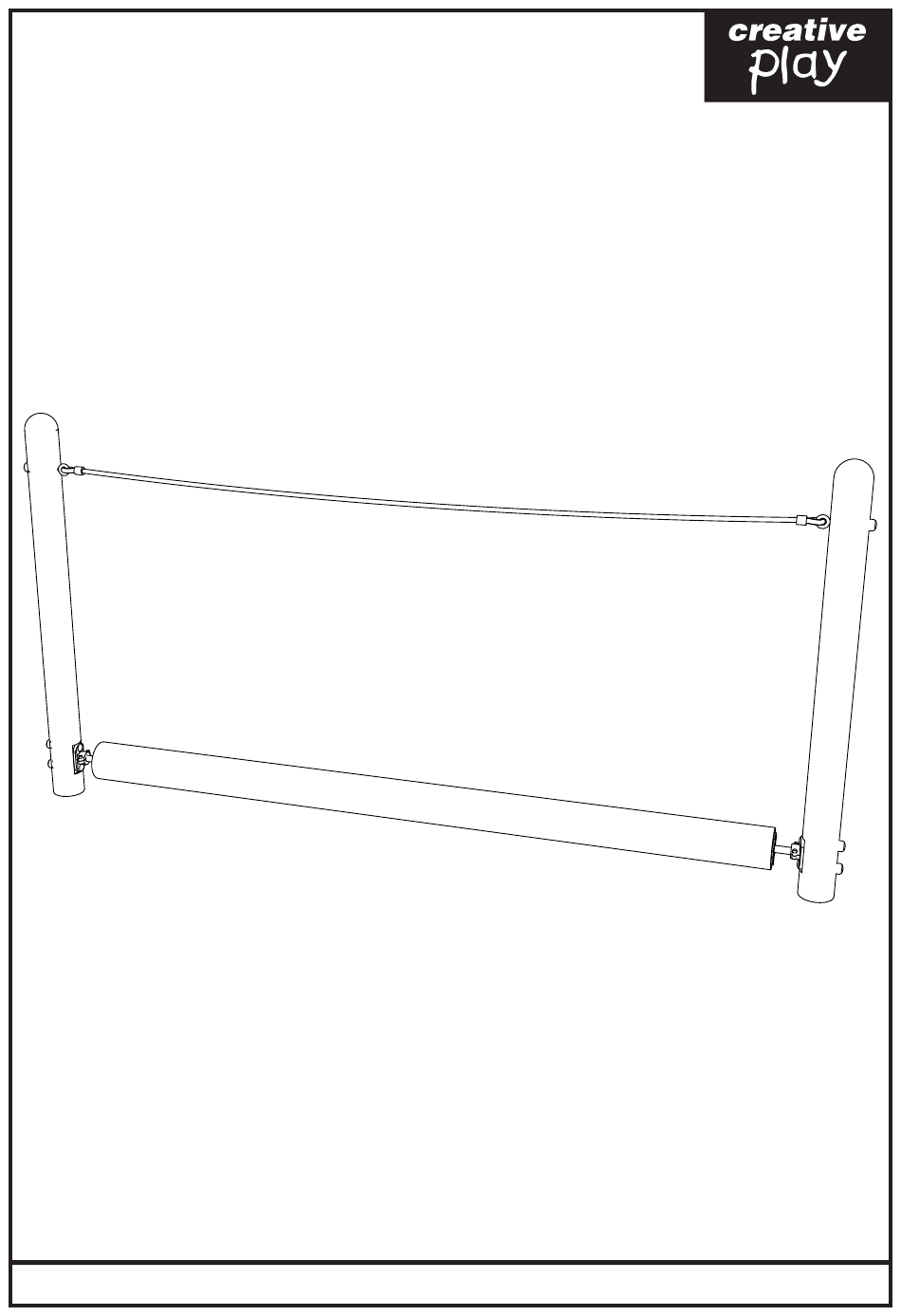

- Page 1 CH149-R - ROTATING LOG Installation Instructions REF: CH149-R - ROTATING LOG pg 1 of 8 17/01/2018 - KB...
-
Page 2: Parts Required
PARTS REQUIRED R-149A [X2] & R-149B [X1] ROPE POLE TWISTER BRACKET [X2] M12 X 150 BOLTS [X4] M6X60 SCREWS [X12] M12 NYLOC [X6] TOOLS REQUIRED COVERED END R-60 [X6] REF: CH149-R - ROTATING LOG pg 2 of 8 17/01/2018 - KB... - Page 3 FOUNDATION DETAIL 3000 REF: CH149-R - ROTATING LOG pg 3 of 8 17/01/2018 - KB...
- Page 4 INSTALL R-149A INTO THE GROUND ENSURE REBATES ARE FACING EACHOTHER ATTACH BOLT HALF OF 1X POLE TWISTER BRACKET TO 1X R-149A TIMBER USING M12X150 BOLTS, NYLOCS AND ROUND END CAPS REF: CH149-R - ROTATING LOG pg 4 of 8 17/01/2018 - KB...
- Page 5 ATTACH 2X SCREW HALF OF POLE TWISTER BRACKETS TO R-149B USING M6X60 SCREWS POSITION BOLT HALF OF 1X POLE TWISTER BRACKET INTO SCREW HALF ALREADY INSTALLED INTO R-149B REF: CH149-R - ROTATING LOG pg 5 of 8 17/01/2018 - KB...
- Page 6 POSITION PREVIOUSLY INSTALLED BOLT HALF INTO FREE SCREW HALF OF POLE TWISTER BRACKET, POSITION WHOLE LOG & BRACKETS CORRECTLY BOLT SECOND POLE TWISTER BRACKET INTO PLACE USING M12X150 BOLTS, NYLOCS AND ROUND END CAPS REF: CH149-R - ROTATING LOG pg 6 of 8 17/01/2018 - KB...
- Page 7 INSTALLATION INSTRUCTIONS FIX ROPE INTO PLACE ON R-149A TIMBERS USING NYLOCS AND ROUND END CAPS REF: CH149-R - ROTATING LOG pg 7 of 8 17/01/2018 - KB...
-
Page 8: Additional Measurements
ADDITIONAL MEASUREMENTS 3125 REF: CH149-R - ROTATING LOG pg 8 of 8 17/01/2018 - KB...
