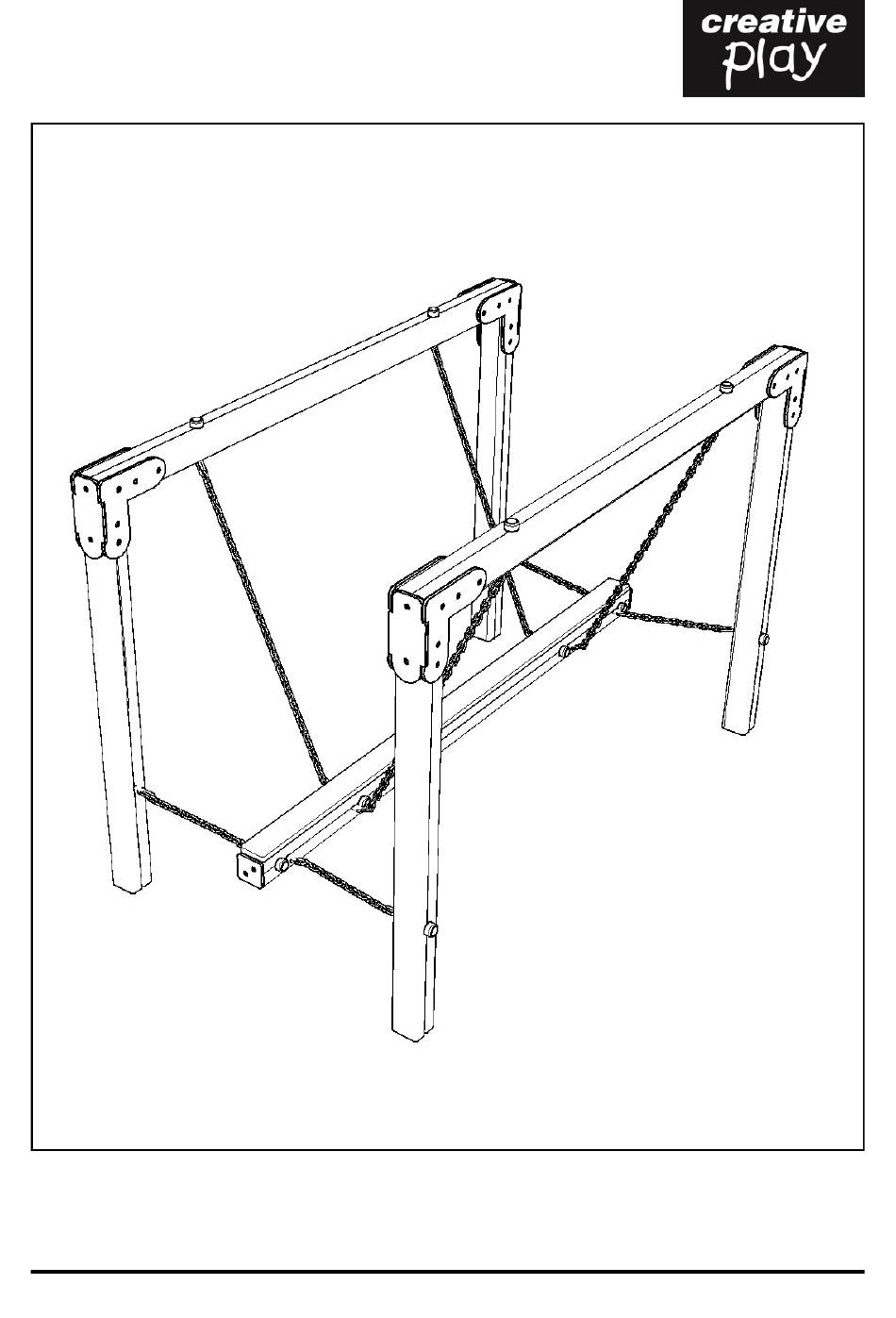

- Page 1 SWINGING LOG Installation Instructions REF: CH110 - SWINGING LOG pg 1 of 9...
-
Page 2: Parts Required
(PRE-ASSEMBLED TOP SECTION) (PRE-ASSEMBLED CENTER SECTION) (Chain x 400mm) (Chain x 980mm) (QUICKLINK ) (FM80 ‘BRASS SCREW’) (EYEBOLT x 130 ) (M12 NYLOC) QTY x 4 (end caps) (90mm x 90mm) pg 2 of 9 REF: CH110 - SWINGING LOG... -
Page 3: Foundation Details
Foundation details GROUND LEVEL SOIL TIMBER SUPPORT POST CONCRETE pg 3 of 9 REF: CH110 - SWINGING LOG... -
Page 4: Surfacing Details
Surfacing details = MINIMUM SPACE = SURFACING AREA pg 4 of 9 REF: CH110 - SWINGING LOG... - Page 5 Assembly instructions Install the timbers (SL1) Attach the Eyebolt to the Timber (SL1) Using NYLOCKS / END CAPS pg 5 of 9 REF: CH110 - SWINGING LOG...
- Page 6 Assembly instructions Attach the Eyebolt to the Timber (SL2) Using NYLOCKS / END CAPS Attach the Eyebolt to the Timber (SL3) pg 6 of 9 REF: CH110 - SWINGING LOG...
- Page 7 Attach the TOP PIECE to the Timber (SL1) Using BRASS SCREWS Attach the CHAIN to the EYEBOLTS using a QUICKLINK Use LOCK TIGHT to ensure the quick link remains CLOSED NOTES: BOTH SIDES (980MM CHAIN) pg 7 of 9 REF: CH110 - SWINGING LOG...
- Page 8 Use LOCK TIGHT to ensure the quick link remains CLOSED NOTES: BOTH SIDES (400MM CHAIN) Attach the CHAIN to the EYEBOLTS using a QUICKLINK Use LOCK TIGHT to ensure the quick link remains CLOSED pg 8 of 9 REF: CH110 - SWINGING LOG...
-
Page 9: Additional Dimensions
Additional dimensions pg 9 of 9 REF: CH110 - SWINGING LOG...
